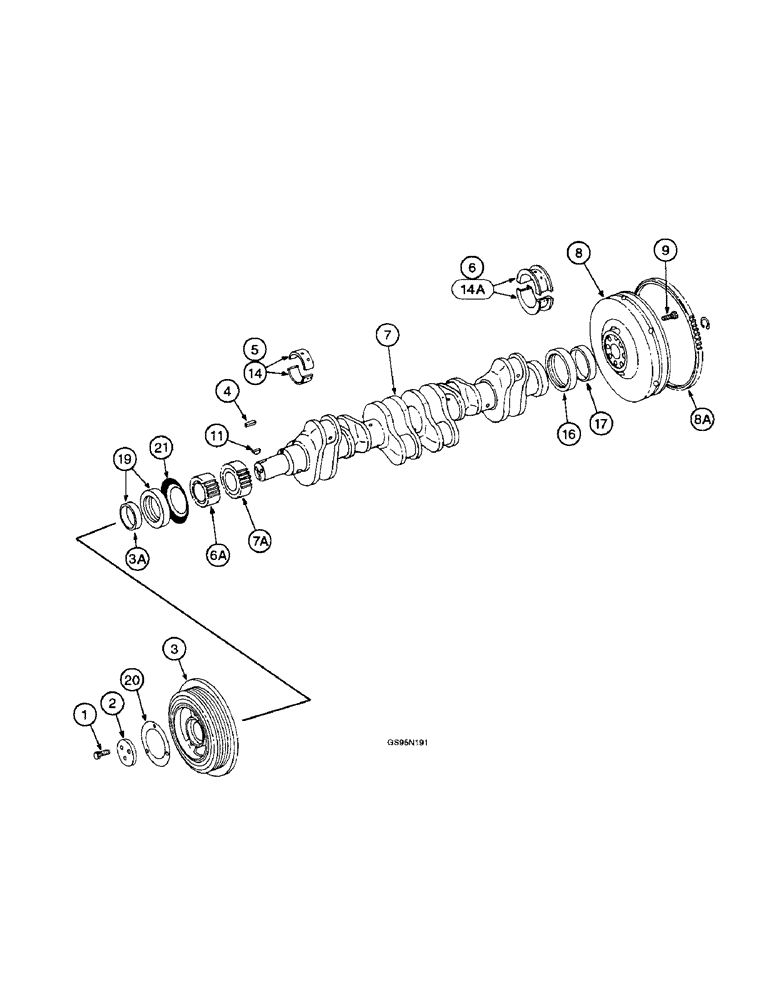

Запчасти Case IH DT-414 (9C-08) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

(Replaces bolt 24862R1) Hex, 1/2"-13 x 1 1/2", G8, Full Thd

3шт.

2

675412C1

PLATE

- damper retaining

1шт.

3

680275C92

PULLEY

DAMPER ASSEMBLY - vibration, Includes: Ref. 3A

1шт.

3a

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

681317C92

CRANKSHAFT

ASSEMBLY - standard, new, Includes: Ref. 3B - 7B, no longer available as a unit, order components

1шт.

749654C91

REMAN-CRANKSHAFT

Crankshaft Assembly - standard, remanufactured, component parts do not apply to the remanufactured assembly

1шт.

1928175C1

CORE-CRANKSHAFT

Return Part Number - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

3b

1808059C92

BEARING SET,77.74mm ID x 82.8mm OD x 32mm W

BEARING - connecting rod, standard, not illustrated

6шт.

FOR DIFF IN 1808059C92/681314C3 ROD BRGS, SEE BLTN S-4936. 12/5/01 BW CAM

1шт.

4

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

5

1808069C92

CRANKSHAFT BEARING

BEARING - crankshaft main, front and intermediate, two halves, standard, no longer available separately, order bearing kit 243640A1

6шт.

This wide bearing is 1.294" wide. See bul S-4936. JHW cam 12-01

1шт.

5

684570C93

CRANKSHAFT BEARING

BEARING - crankshaft main, front and intermediate, two halves, standard, no longer available separately, order bearing kit 243649A1

1шт.

This narrow bearing is 1.22" wide. See bul S-4936. JHW cam 12-01

1шт.

6

684579C93

CRANKSHAFT BEARING,116.33mm ID x 122.68mm OD x 45.14mm W

BEARING - crankshaft main, rear, will work for 675952C91, two halves, standard

1шт.

6a

675364C1

GEAR

SPLINE - oil pump drive, 41 teeth

1шт.

7

675668C92

CRANKSHAFT

- standard, with gear

1шт.

7a

675406C1

GEAR

- crankshaft, 32 teeth

1шт.

7b

681314C3

BEARING SET

BEARING - standard, not illustrated

1шт.

FOR DIFF IN 1808059C92/681314C3 ROD BRGS, SEE BLTN S-4936. 12/5/01 BW CAM

1шт.

8

672211C91

FLY JIB

FLYWHEEL ASSEMBLY - 1066 tractors with hydrostatic transmission and 966 tractors, Includes: Ref. 8A

1шт.

8

672215C91

FLYWHEEL

ASSEMBLY - 1066 tractors with gear drive and 1086 tractors, Includes: Ref. 8A

1шт.

8

672718C91

FLYWHEEL ASSEMBLY - 815 and 915 combines, no longer available, Includes: Ref. 8A

1шт.

8a

341604R1

GEAR

- ring, 132 teeth, used with flywheels 672211C91 and 672718C91

1шт.

8a

326759R1

GEAR

- ring, 132 teeth, used with flywheel 672215C91

1шт.

9

25277R1

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-5/8 inch, grade 8

8шт.

685902C1

WASHER

- hardened

8шт.

11

691044C1

KEY

- 5/16 x 1 inch, vibration damper (Replaces key 124554)

1шт.

14

684573C93

BEARING SET

- crankshaft main, front and intermediate, two halves, 0.010 inch undersize, no longer available separately, order bearing kit 243650A1

6шт.

14

687391C3

BEARING SET

- crankshaft main, front and intermediate, two halves, 0.020 inch undersize, no longer available separately, order bearing kit 243651A1

6шт.

14

684576C93

BEARING SET

BEARING - crankshaft main, front and intermediate, two halves, 0.030 inch undersize

6шт.

14a

684582C93

CRANKSHAFT BEARING

BEARING - crankshaft main, rear, two halves, 0.010 inch undersize

1шт.

14a

687394C3

CRANKSHAFT BEARING

BEARING - crankshaft main, rear, two halves, 0.020 inch undersize

1шт.

14a

684585C93

BEARING SET

BEARING - crankshaft main, rear, two halves, 0.030 inch undersize, no longer available separately, order kit 243652A1 for narrow bearings and kit 243648A1 for wide bearings

1шт.

15

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, (Replaces 456736R1) 2.062", Int, #206

1шт.

1809964C92

OIL SEAL

KIT - crankshaft, rear seal and wear sleeve (Replaces kits 678554C91 and 691631C91), Includes: Ref. 16 & 17

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil, order kit 1809964C92

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - oil seal wear, order kit 1809964C92

1шт.

19

690437C94

SEAL KIT

KIT - front seal and wear sleeve (Replaces kit 680119C2)

1шт.

20

684431C1

PLATE

- vibration damper

1шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

3шт.

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

3шт.

21

687024C1

SEALING WASHER

WASHER - seal

1шт.
