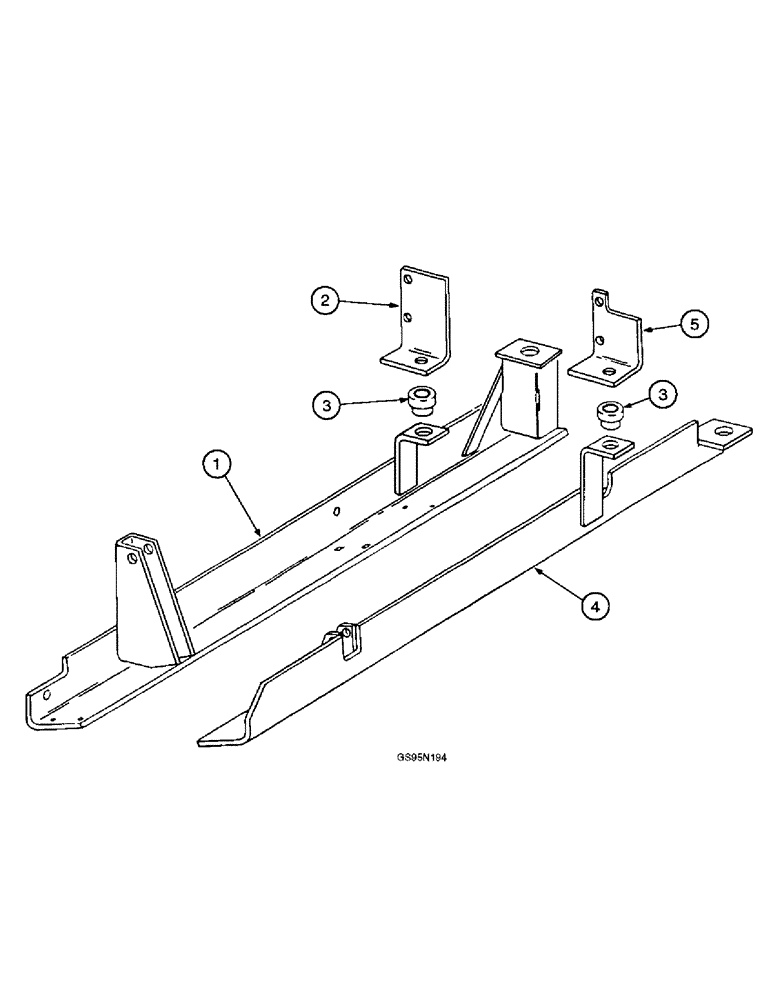

Запчасти Case IH DT-414 (9C-90) - ENGINE RAILS, COMBINES WITH D-414 ENGINES AND SERIAL NUMBERS PRIOR TO 18001

1

548226R1

RAIL - engine support, left-hand, no longer available

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces bolt 271728)

1шт.

22047R1

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

2

548230R1

BRACKET - engine mounting, left-hand front, no longer available

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch (Replaces bolt 271730)

2шт.

3

L77573

BUSHING,16.51mm ID x 34.29mm OD x 25.4mm L

MOUNT - front vibration (Replaces mount 528506R1)

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (Replaces bolt 271724)

2шт.

21882R1

WASHER - flat, 21/32 x 2 x 1/16 inch, no longer used

2шт.

22047R1

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

2шт.

4

548231R1

RAIL - engine support, right-hand, no longer available

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces bolt 271728)

1шт.

22047R1

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

5

548235R1

BRACKET - engine mounting, right-hand front, no longer available

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch (Replaces bolt 271730)

2шт.
