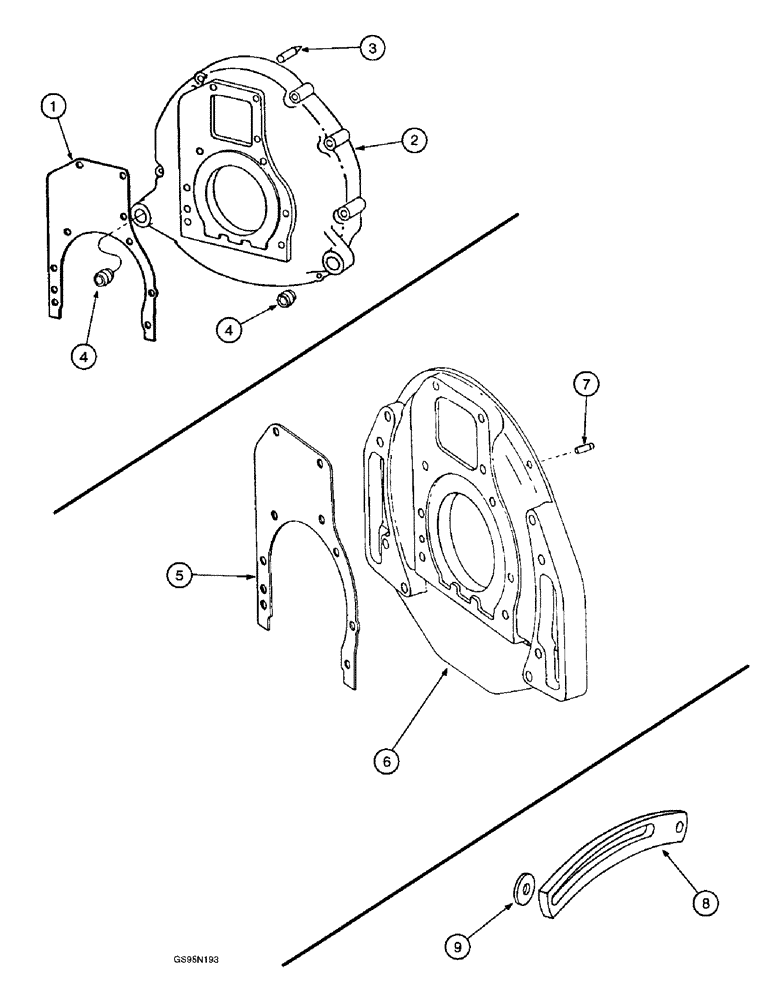

Запчасти Case IH DT-414 (9C-88) - FLYWHEEL HOUSING, COMBINES, TRACTORS / ALTERNATOR-GENERATOR MOUNTING

1

682945C3

GASKET

- flywheel housing, for combines

1шт.

2

672725C91

HOUSING ASSEMBLY - flywheel, no longer available, for combines, Includes: Ref. 3

1шт.

3

260119R1

POINTER - timing, no longer available

1шт.

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

(Replaces bolt 24863R1) Hex, 1/2"-13 x 1 3/4", G8

8шт.

392-11050

LOCK WASHER,1/2"

(Replaces washer 116121) 1/2"

8шт.

141264

BEARING

PIN - dowel, 7/16 x 1 inch, no longer used

2шт.

4

672870R1

BUSHING

- engine support, rubber, vibration joint, for combines

2шт.

5

682945C3

GASKET

- flywheel housing, for tractors

1шт.

6

671805C91

PLATE

ASSEMBLY - crankcase rear mounting, for tractors, Includes: Ref. 7

1шт.

7

375362R1

PIN,12.69mm OD x 34.8mm L

- dowel, 1/2 x 1-3/8 inch, rear mounting plate

2шт.

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

(Replaces bolt 24863R1) Hex, 1/2"-13 x 1 3/4", G8

6шт.

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

Not used on 1086 tractors (Replaces bolt 24865R1) Hex, 1/2"-13 x 2 1/4", G8

2шт.

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened (Replaces washer 26273R1) 17/32" x 1 1/16" x .134"

8шт.

8

532418R1

BRACE

- alternator

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 180122)

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

9

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch, not used on 1086 tractors (Replaces washer 21496R1)

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Replaces bolt 180081)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
