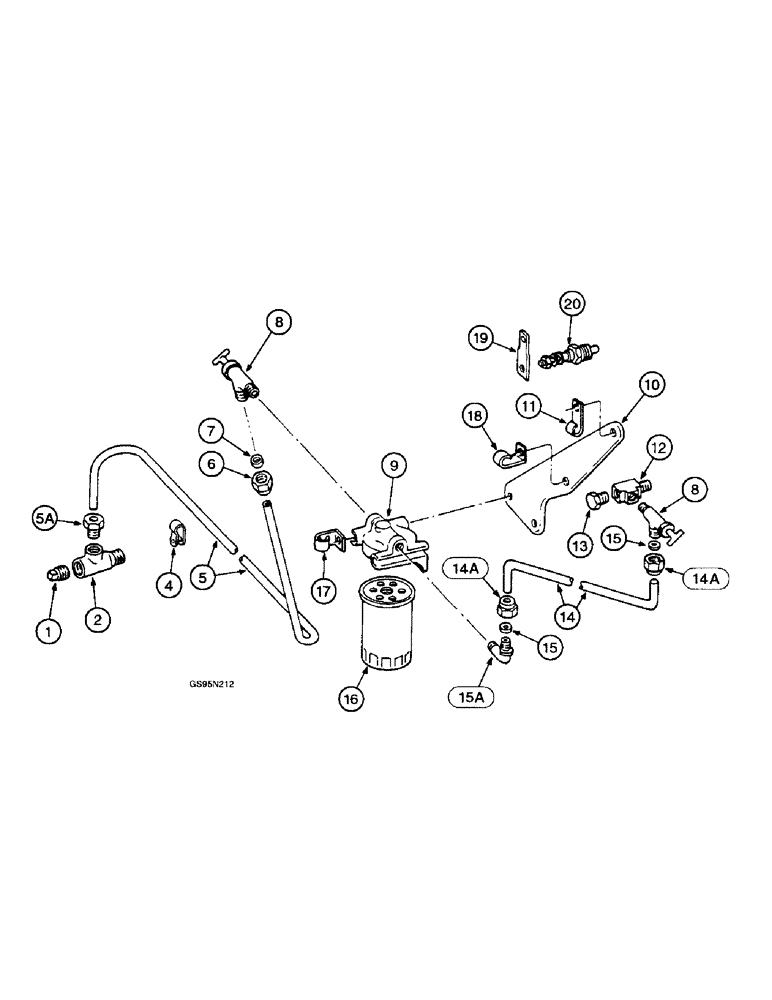

Запчасти Case IH DT-414 (9C-86) - COOLANT FILTER AND CONDITIONER, 1086 TRACTORS W/ENGINE S/N 159499 & AFTER

1

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT (Replaces plug 444572)

1шт.

2

690592C1

TEE,3/8" x 1/4" - 18 NPT x 1/8" - 27 NPT

- oil cooler

1шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Filter inlet tube (Replaces clamp 299404C1) 3/8", Insul, 3/8" Bolt

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 115093) 3/8"

1шт.

329-116

NUT,3/8"-24, G8

(Replaces nut 25523R1) 3/8"-24, G8

1шт.

5

1800124C91

TUBE

ASSEMBLY - coolant inlet, 24 inch (610 mm) long, cut from bulk hose 995063R1 below, Includes: Ref. 5A - 7

1шт.

5a

222-1004

TUBE NUT,5/8" - 18

NUT - inverted flared tube, 3/8 inch NC (Replaces nut 137399)

1шт.

5a

137399

TUBE NUT,3/8" Inv FL

NUT - inverted flared tube, 3/8 inch NC

1шт.

6

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)

1шт.

7

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1)

1шт.

8

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut-off

2шт.

9

1810502C91

HEAD ASSY.

HEADER - coolant filter (Replaces header 1800029C1)

1шт.

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

(Replaces bolt 24846R1) Hex, 3/8"-16 x 4 1/2", G8

2шт.

329-106

NUT,3/8"-16, G8

(Replaces nut 25522R1) 3/8"-16, G8

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

10

1800030C1

BRACKET

- mounting, coolant filter

1шт.

603046R1

SPACER,3/8" X-Strng Pipe x 7/8"

- pipe (Replaces spacer 371702R1)

2шт.

326-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

(Replaces bolt 25501R1) Hex, 3/8"-16 x 3 3/4", G8

1шт.

326-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch, grade 8 (Replaces bolt 24845R1)

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

11

362667R1

CLIP

CLAMP - retainer, electrical harness

1шт.

12

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

- special, 3/8 inch NPT

1шт.

13

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

- hex, 3/8 inch PT (Replaces plug 20990R1)

1шт.

14

1800185C91

TUBE

ASSEMBLY - coolant outlet, 15 inch (381 mm) long, cut from bulk hose 995063R1 below, Includes: Ref. 14A & 15

1шт.

14a

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1)

2шт.

15

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1)

2шт.

15a

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

- coolant outlet tube, 90 degree compression x 3/8 tube OD x 3/8 inch PT (Replaces elbow 606618C1)

1шт.

16

84605017

COOLANT FILTER

FILTER - coolant, includes gasket (Replaces filters 1801090C1 and A77754)

1шт.

17

362122R1

CLIP

- hose retaining, harness

1шт.

18

362667R1

CLIP

CLAMP - retainer, harness

1шт.

19

384396R1

SPADE TERMINAL,Male

TERMINAL - sender

1шт.

20

121756C2

SENSOR

- temperature

1шт.

995063R1

TUBE

HOSE - bulk, 50 foot (15240 mm) long

1шт.
