Запчасти Case IH DT-414 (9C-82) - THERMOSTAT AND WATER PUMP

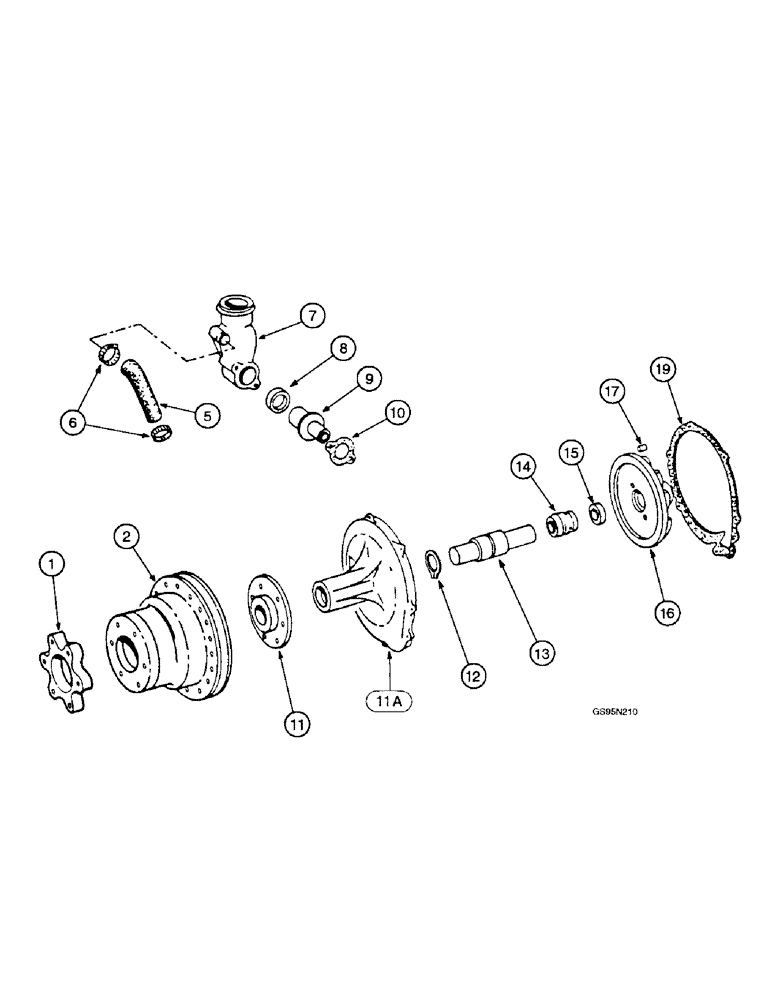

Схема запчастей Case IH DT-414 - (9C-82) - THERMOSTAT AND WATER PUMP
7
14
15
19
8
2
11a
1
9
11
17
6
16
12
10
13
5

Артикул

Название

Примечание

Количество

1

681030C1

SPACER

SPACER - fan, no longer used, order spacer 673013C1 below

1шт.

1

673013C1

SPACER

SPACER - fan (Replaces spacer 681030C1)

1шт.

2

691562C1

PULLEY

PULLEY - fan, water pump, triple groove (Replaces pulley 537071R1)

1шт.

329-106

NUT,3/8"-16, G8

NUT, (Replaces nut 25522R1) 3/8"-16, G8

2шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, (Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

BOLT - hex, 3/8 NC x 1-3/4 inch, grade 8 (Replaces bolt 24842R1)

1шт.

326-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

BOLT, (Replaces bolt 25501R1) Hex, 3/8"-16 x 3 3/4", G8

1шт.

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

BOLT, (Replaces bolt 24844R1) Hex, 3/8"-16 x 3 1/2", G8

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

8шт.

5

672242C2

HOSE

Thermostat By-Pass Housing

1шт.

6

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj., Thermostat by-pass housing hose #20, 0.81/1.75 Type F Worm

2шт.

7

689061C1

HOUSING

HOUSING - thermostat (Replaces housing 675810C2)

1шт.

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751)

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex socket, 3/4 inch PT (Replaces plug 9409949)

1шт.

326-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

BOLT, (Replaces bolt 275804R1) Hex, 3/8"-16 x 3", G8

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

3шт.

8

615175C91

SEAL

SEAL - thermostat

1шт.

9

684739C1

THERMOSTAT

THERMOSTAT - coolant, 190 degrees Fahrenheit

1шт.

10

1342836C1

GASKET

GASKET - thermostat housing (Replaces gasket 675384C1)

1шт.

673162C94

PUMP, WATER

PUMP ASSEMBLY - water, new, used with 1066 tractors, 915 combines and 1086 tractors (Replaces pump assembly 672644C93), Includes: Ref. 11 - 17

1шт.

749908C91

REMAN-WATER PUMP

Remanufactured PUMP ASSEMBLY - water, used with 1066, 1086 tractors and 915 combines, component parts do not apply to the remanufactured assembly

1шт.

1928143C1

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

673623C92

PUMP, WATER

PUMP ASSEMBLY - water, new, used with 966 tractors and 815 combines (Replaces pump assembly 677415C93), Includes: Ref. 11 - 17

1шт.

749909C91

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1928145C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

11

675033C1

HUB

HUB - pulley, water pump

1шт.

11a

675806C3

HOUSING

HOUSING - bearing, water pump

1шт.

12

100-21187

SNAP RING,1.875", Int, #187

Ring, Snap, , replaces ring 272842R1 1.875", Int, #187

1шт.

13

627785C91

BEARING ASSY,47.63mm OD x 177.8mm L

SHAFT - pump, includes bearing

1шт.

687161C92

KIT

KIT - water pump seal (Replaces kit 687366C91 and 701331C93), Includes: Ref. 14 & 15

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 687161C92

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT - water pump, order kit 687161C92

1шт.

16

676320C1

IMPELLER

IMPELLER - water pump, used with 1066 tractors, 915 combines and 1086 tractors, no longer available, order kit 1810366C92 below

1шт.

16

677414C1

IMPELLER

IMPELLER - water pump, used with 966 tractors and 815 combines

1шт.

1810366C92

TURBINE

KIT - water pump impeller, Includes: Impeller, O-Ring and Sleeve Listed Below

1шт.

16

1802248C1

IMPELLER

IMPELLER - water pump

1шт.

1802812C1

O-RING

O-RING - water pump impeller

1шт.

A77692

SLEEVE CYLINDER

SLEEVE - water pump impeller

1шт.

17

680481C1

PIN

PIN - dowel, 1/4 x 5/8 inch

2шт.

1810505C92

SEAL KIT

KIT - water pump seal, used with 1810366C92 impeller kit

1шт.

19

675808C2

GASKET,0.79mm Thk

GASKET - water pump housing

1шт.

326-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

BOLT, (Replaces bolt 24844R1) Hex, 3/8"-16 x 3 1/2", G8

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

8шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, (Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

BOLT - hex, 3/8 NC x 1-3/4 inch, grade 8 (Replaces bolt 24842R1)

2шт.

329-106

NUT,3/8"-16, G8

NUT, (Replaces nut 25522R1) 3/8"-16, G8

2шт.

Выбрано товаров: 46
