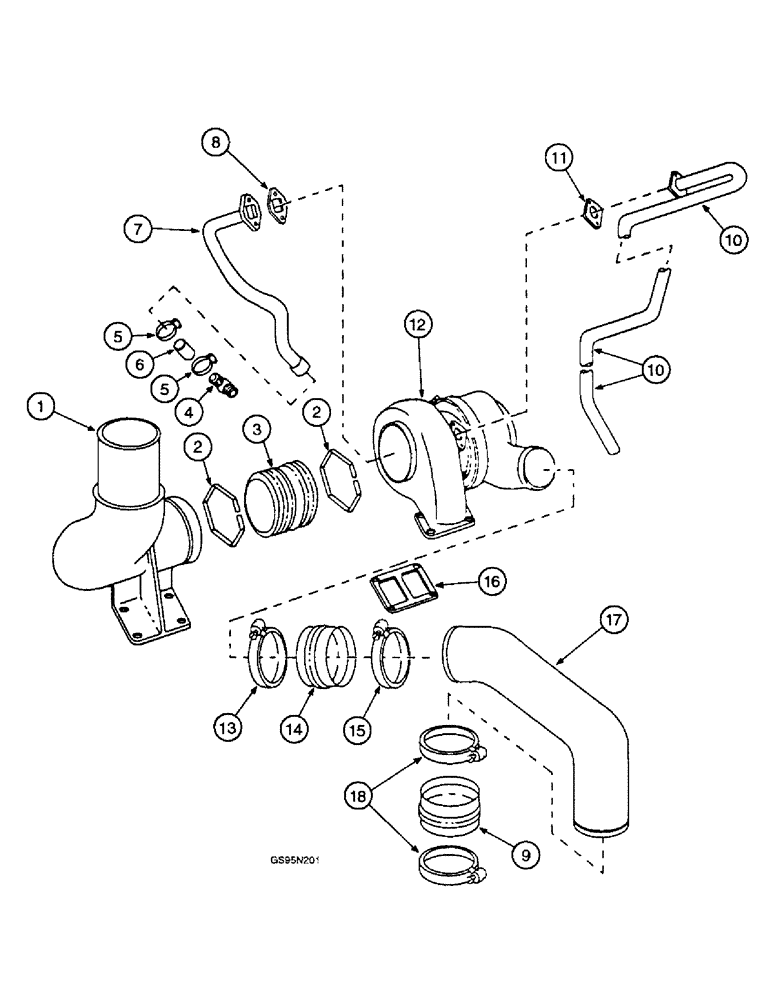

Запчасти Case IH DT-414 (9C-80) - TURBOCHARGER AND CONNECTIONS, 1066, 1086 TRACTORS AND 915 COMBINES

1

675316C3

ELBOW

- turbocharger exhaust, used with all machines except 1086 tractors

1шт.

129-139

NUT,3/8"-16, G8

NUT, (Replaces nut 21070R1) 3/8"-16, G8

4шт.

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

(Replaces bolt 24841R1) Hex, 3/8"-16 x 1 1/2", G8

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

2

702299C1

ASSEMBLY

SEAL - seal, used with all machines except 1086 tractors

2шт.

3

675317C2

SLEEVE

- turbocharger exhaust, used with all machines except 1086 tractors

1шт.

4

673622C1

ELBOW

- turbocharger oil drain

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Adj - Turbocharger oil drain (Replaces clamps 123316R91 and 995218R1) #12, 0.69/1.25 Type F Worm

2шт.

6

675859C2

HOSE,22.35mm ID x 66.04mm L

Turbocharger Oil Drain

1шт.

7

675781C2

TUBE

- turbocharger oil drain

1шт.

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

(Replaces bolt 24840R1) Hex, 3/8"-16 x 1", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

8

1342835C1

GASKET

- oil drain tube (Replaces gasket 687903C1)

1шт.

9

675724C2

HOSE,3.21" ID x 2.75", SAE J200

Turbocharger Air Outlet Pipe, Engine Serial Numbers Prior to 158049 3.21" ID x 2.75", SAE J200

1шт.

9

310385R2

INTAKE AIR HOSE,2.21" ID x 3.00", SAE J200

- Turbocharger Air Outlet Pipe, Engine serial number 158049 and after 2.21" ID x 3.00", SAE J200

1шт.

10

675783C94

TUBE,0.375" OD, 31" Length

- oil inlet, use with turbocharger assembly 684240C91, used with 1066 tractors, 915 combines, 1086 tractors with engine serial numbers prior to 118713

1шт.

RUBBER WASHER 222-104. ....Goes on the end of ref 10

1шт.

10

690404C91

TUBE,0.375" OD

- oil inlet, use with turbocharger assembly 684240C91, used with 1086 tractors with engine serial number 118713 and after

1шт.

10

689424C91

TUBE,0.375" OD, 31.62" Length

- turbocharger oil inlet, use with turbocharger assembly 687085C91

1шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

11

1342834C1

GASKET

- turbocharger oil inlet tube (Replaces gasket 253660R1)

1шт.

12

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - parts list page 9C-77 or 9C-79

1шт.

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, (Replaces nut 676524C1) 3/8"-16, GC

4шт.

113-2234

BOLT,Hex, 3/8" - 16 x 1-1/2", SST

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 22737R1)

4шт.

13

687456C1

CLAMP

- turbocharger air outlet pipe hose (Replaces clamp 681209C1)

1шт.

14

675723C2

HOSE,1.96" ID, 2.21" ID x 2.50", SAE J200

Turbocharger Air Outlet Pipe 1.96" ID, 2.21" ID x 2.50", SAE J200

1шт.

15

687456C1

CLAMP

- turbocharger air outlet pipe hose (Replaces clamp 681209C1)

1шт.

16

1342826C1

GASKET

- turbocharger (Replaces gasket 670073C1)

1шт.

17

676165C2

TUBE

PIPE - turbocharger air outlet, engine serial numbers, Serial Range: prior-158049

1шт.

17

691178C91

PIPE

- turbocharger air outlet, engine serial number 158049 and after, also order plug 217-504 below

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

- square, 1/4 inch PT (Replaces plug 444576)

1шт.

18

687457C1

CLAMP

- turbocharger air outlet pipe, engine serial numbers, Serial Range: prior-158049

2шт.

18

687456C1

CLAMP

- turbocharger air outlet pipe hose, engine serial number 158049 and after

2шт.
