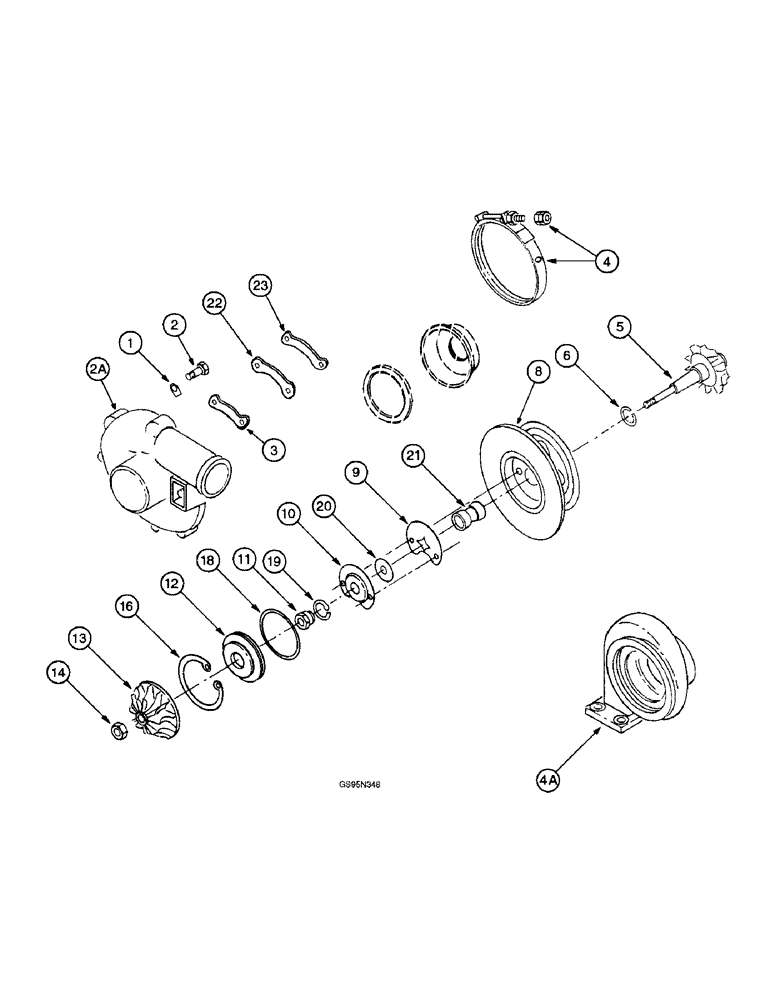

Запчасти Case IH DT-414 (9C-78) - TURBOCHARGER, 1066 TRACTORS AND 1086 TRACTORS

682363C91

SUPERCHARGER

TURBOCHARGER ASSEMBLY - tractors, no longer available, Includes: Ref. 1 - 25

1шт.

On orders for 682363C91 or 687085C91, furnish new turbocharger assembly A184785 or remanufactued assembly 749267C92, parts list page 9C-77.

1шт.

687085C91

SUPERCHARGER

TURBOCHARGER ASSEMBLY - t ractors, no longer available, Includes: Ref. 1 - 25

1шт.

On orders for 682363C91 or 687085C91, furnish new turbocharger assembly A184785 or remanufactued assembly 749267C92, parts list page 9C-77.

1шт.

1

619474C1

LOCK ASSY

CLAMP - plate type

3шт.

2

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4 NC x 7/16 inch (Replaces bolt 25221R1)

6шт.

2a

630631C1

COVER - compressor, no longer available

1шт.

3

630633C1

PLATE

- lock

3шт.

4

630635C91

CLAMP

ASSEMBLY - U band, no longer available, Includes: Lock Nut Listed Below

1шт.

313163R1

NUT

- lock, 1/4 inch, no longer available

1шт.

4a

630634C1

HOUSING - turbine, no longer available

1шт.

630636C91

CORE ASSEMBLY - new, used with turbocharger assembly 682363C91, Includes: Ref. 5 - 18

1шт.

630692C91

CORE ASSEMBLY - remanufactued, used with turbocharger assembly 682363C91, no longer available, order new core assembly 630636C91

1шт.

5

630640C1

SHAFT - turbine, no longer available

1шт.

6

615819C1

RING, PISTON

RING - turbine piston

1шт.

8

630641C1

HOUSING - bearing, no longer available

1шт.

9

615818C1

PLATE

- thrust

1шт.

10

615816C1

DEFLECTOR

- oil

1шт.

11

615815C1

SLEEVE

- thrust

1шт.

12

615333C1

INSERT

- slinger plate

1шт.

13

630638C1

WHEEL - compressor, no longer available

1шт.

14

25737R1

LOCK NUT,5/16"-24, GB

NUT - wheel lock (Replaces nut 615814C1)

1шт.

16

615332C1

RING

- insert snap, no longer available

1шт.

18

687132C1

GASKET

O-RING - insert (Replaces O-ring 615334C1)

1шт.

19

313156R1

RING

- sleeve piston

1шт.

19

NSS

NOT SOLD SEPARAT

RING - piston, no longer available

1шт.

20

615817C1

RING

- thrust

1шт.

21

615820C1

BEARING ASSY

- housing, no longer available

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - housing, no longer available

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - clamp, no longer available

2шт.

23

NSS

NOT SOLD SEPARAT

PLATE - lock, no longer available

2шт.

687128C1

BOLT,Hex, 5/16" - 18

SCREW - hex, 5/16 NC x 5/8 inch, no longer available

4шт.

24

NSS

NOT SOLD SEPARAT

PLATE - turbine back, no longer available

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - no longer available

1шт.
