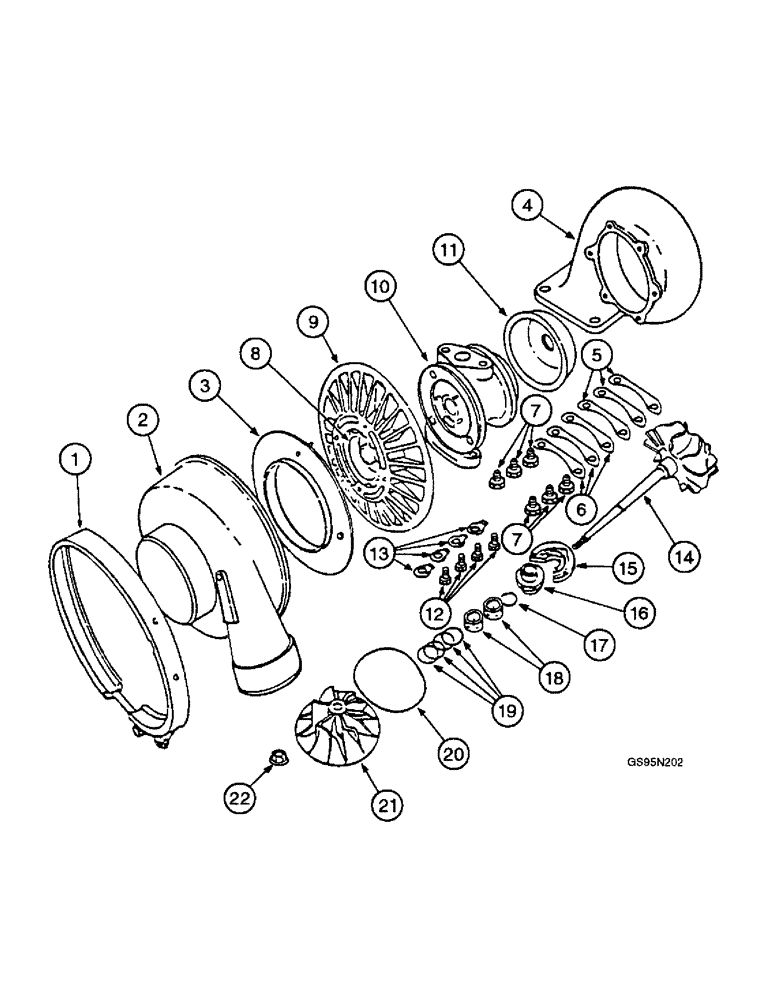

Запчасти Case IH DT-414 (9C-76) - TURBOCHARGER

A184785

TURBOCHARGER

TURBOCHARGER ASSEMBLY - new (Replaces turbocharger assembly 684240C92), Includes: Ref. 1 - 22

1шт.

749267C92

REMAN-TURBOCHARGER

1066, 1086 Tractors, 915 Combine SN8001 & Aft.

1шт.

1928007C1

CORE-TURBOCHARGER

Return Part Number

1шт.

675795C91

TURBOCHARGER

TURBOCHARGER ASSEMBLY - used with 915 combines, no longer available, order turbocharger assemblies A184785 or 749267C92, Includes: Ref. 1 - 22

1шт.

749267C92

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY - used with 915 combines

1шт.

1928007C1

CORE-TURBOCHARGER

Return Number

1шт.

1

702327C91

CLAMP

CLAMP - used with assemblies 672729C91 and 675795C91 only

1шт.

2

627766C1

SPARE PART HOUSING - compressor, used only with turbocharger assembly 672729C91

1шт.

2

619377C1

HOUSING

HOUSING - compressor, used only with turbocharger assembly 675795C91, no longer available

1шт.

2

684248C1

HOUSING

HOUSING - compressor, used only with turbocharger assembly 684240C92, no longer available, order turbocharger assembly

1шт.

1809618C1

BOLT

PLATE - housing lock (Replaces plate 630609C1)

3шт.

A44838

CLAMP

CLAMP - housing plate (Replaces clamp 630610C1)

3шт.

424-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

BOLT - hex, 5/16 NC x 1/2 inch, grade 2 (Replaces bolt 18763R1)

6шт.

3

627767C1

SPARE PART DIFFUSER - compressor, used only with turbocharger assembly 672729C91, no longer available

1шт.

3

619378C1

SPARE PART

DIFFUSER - compressor, used only with turbocharger assemblies 675795C91 and 680098C91

1шт.

4

627768C1

HOUSING

SPARE PART HOUSING - turbine, used only with turbocharger assembly 672729C91

1шт.

4

615735C1

SPARE PART SPACER - turbine, used only with turbocharger assembly 675795C91

1шт.

5

A44846

HOUSING

HOUSING - turbine, used only with turbocharger assembly A184785

1шт.

5

684245C1

CLAMP

CLAMP - housing plate, clamp

3шт.

6

615739C1

PLATE, LOCKING

PLATE - housing lock

3шт.

7

684246C1

BOLT

BOLT - housing lock plate, hex, 5/16 NC x 1/2 inch

6шт.

627769C92

HOUSING

HOUSING ASSEMBLY - new, used with turbocharger assembly 672629C91, Includes: A44829 Piston Ring & Ref. 8 - 22, no longer used, order remanufactured assembly 627913C92

1шт.

627913C92

HOUSING

HOUSING ASSEMBLY - remanufactured for turbocharger assembly 627769C92

1шт.

680087C92

HOUSING

HOUSING ASSEMBLY - new, used with turbocharger assembly 675795C91, Includes: A44829 Piston Ring & Ref. 8 - 22

1шт.

627912C91

PACKAGE

HOUSING ASSEMBLY - remanufactured for turbocharger assembly 680087C92, no longer available

1шт.

A184782

TURBOCHARGER

HOUSING ASSEMBLY - new, used with turbocharger assembly A184785, Includes: A44829 Piston Ring & Ref. 8 - 22

1шт.

735271C91

REMAN-ROTOR ASSY

HOUSING ASSEMBLY - remanufactured for turbocharger assembly 1806150C91

1шт.

A44829

RING

RING - piston (Replaces ring 684359C1)

1шт.

8

615747C1

SPRING WASHER

SPRING - collar

1шт.

9

627772C91

PLATE

BACKPLATE - impeller, used with turbocharger assemblies 672729C91 and 672795C91

1шт.

9

630614C91

PLATE

PLATE - impeller back, used only with turbocharger 684240C92

1шт.

10

684360C92

KIT

HOUSING - center

1шт.

11

A45091

GUARD

SHROUD - turbine wheel, no longer available (Replaces shroud 627771C1)

1шт.

12

25480R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 8

BOLT - hex, 1/4 NC x 5/8 inch, grade 8

4шт.

13

1809617C1

BOLT,Hex, 1/4" x 5/8", Gr 8

PLATE - backplate lock (Replaces plate 625675C1)

2шт.

14

A44841

WHEEL

SHAFT - turbine, includes wheel (Replaces shaft 702625C2)

1шт.

15

A44832

THRUST BEARING,0.172"

BEARING - thrust (Replaces bearing 627773C1)

1шт.

16

615745C2

COLLAR

COLLAR - thrust (Replaces collar 615745C1)

1шт.

17

A44828

RING

RING - piston (Replaces ring 615746C1)

1шт.

18

A44826

BEARING

BEARING - housing journal (Replaces bearing 687965C1)

2шт.

19

A44827

RING

RING - bearing retainer (Replaces ring 627774C1)

4шт.

20

A44833

RING

RING - seal (Replaces ring 343847R1)

1шт.

21

627770C1

SPARE PART WHEEL - impeller, used only with turbocharger assembly 672729C91, no longer available

1шт.

21

619376C1

IMPELLER

WHEEL - impeller, used only with turbocharger assembly 675795C91, no longer available

1шт.

21

1806082C1

TURBINE

SHAFT - impeller, used only with turbocharger assembly 684240C92, no longer available, order turbocharger assembly

1шт.

22

615741C2

NUT

NUT - impeller lock

1шт.
