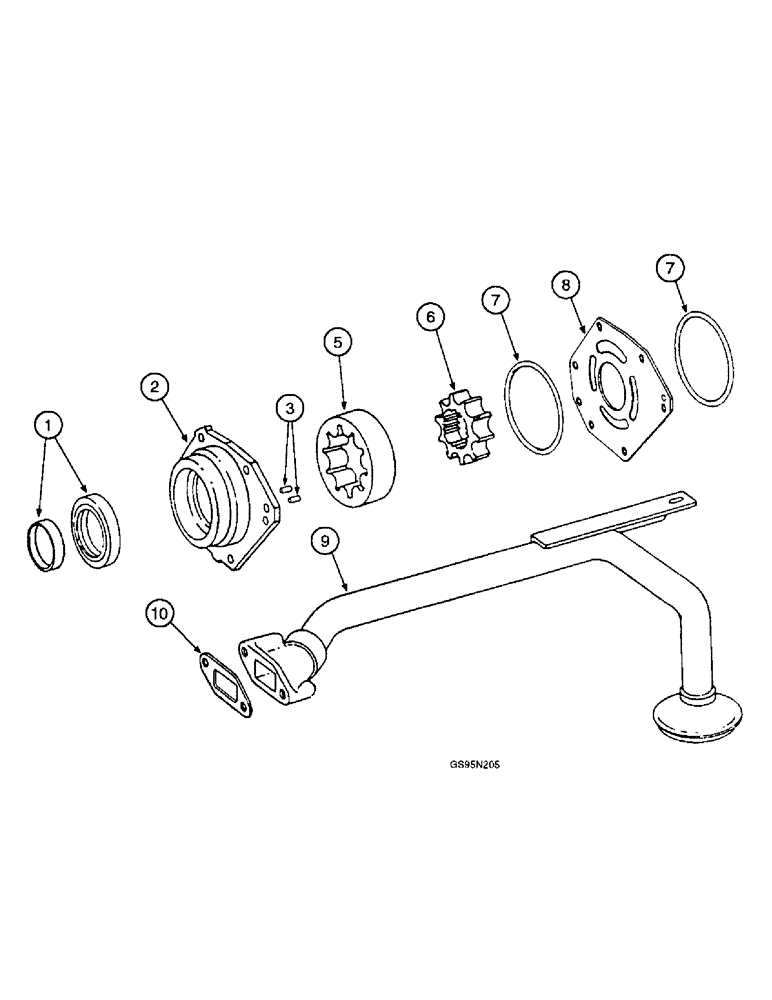

Запчасти Case IH DT-414 (9C-74) - LUBRICATING OIL PUMP

1

690437C94

SEAL KIT

KIT - front oil seal and wear sleeve (Replaces kit 680119C2)

1шт.

2

680380C91

HOUSING ASSY.

SPARE PART HOUSING ASSEMBLY - oil pump, D-414 engines with serial numbers prior to 47523, no longer available

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - oil pump, D-414 engines with serial number 47523 and after, order kit 1802666C91 below

1шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - oil pump, DT-414 engines, order kit 1802666C91 below

1шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

3

680482C1

PIN

PIN - dowel, 5/16 x 5/8 inch, hardened

2шт.

310-1518

BOLT,Hex, 5/16" - 18 x 1-1/8" , Gr 8

BOLT - hex, self-locking, 5/16 NC x 1-1/8 inch, grade 8 (Replaces bolt 27971R1)

6шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

6шт.

673596C91

ROTOR

KIT - rotor, oil pump, D-414 engines with serial numbers prior to 47523, Includes: Ref. 5 & 6

1шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

NSS

NOT SOLD SEPARAT

KIT - rotor, oil pump, D-414 engines with serial number 47523 and after, order kit 1802666C91 below, Includes: Ref. 5 & 6

1шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

NSS

NOT SOLD SEPARAT

KIT - rotor, oil pump, DT-414 engines, order kit 1802666C91 below, Includes: Ref. 5 & 6

1шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - oil pump outer, order kit 1802666C91 below

1шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR - oil pump inner, order kit 1802666C91 below

1шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

7

675860C1

RING

O-RING - oil pump housing (Replaces O-ring 686451C1)

2шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

8

1802879C1

PLATE

PLATE - oil pump housing (Replaces plate 675365C1)

1шт.

Included in Oil Pump Service Kit P/N 1802666C92

1шт.

9

671822C3

PIPE

TUBE - oil pump inlet, used with tractors

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

BOLT, Hex, 5/16"-18 x 1 3/4", G8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

4шт.

9

680896C2

TUBE

TUBE - oil pump inlet, used with combines

1шт.

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

BOLT, Hex, 5/16"-18 x 1 3/4", G8

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

129-139

NUT,3/8"-16, G8

NUT, (Replaces nut 21070R1) 3/8"-16, G8

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

BOLT - hex, 3/8 NC x 1 inch (Replaces bolt 427566)

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

10

671821C2

GASKET

GASKET - lubrication oil pump inlet

1шт.

1802666C92

KIT

KIT - oil pump service, new (Replaces kits 671608C91, 672613C91, 675361C1 and 680381C91), Includes: Parts as indicated above

1шт.

735246C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP KIT - oil pump, remanufactured (North America only), used with D-414 engines, 7/8 inch pump, component parts do not apply to the remanufactured assembly

1шт.

1928213C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

735249C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP KIT - oil pump, remanufactured (North America only), used with DT-414 engines, 1 inch pump, component parts do not apply to the remanufactured assembly

1шт.

1928219C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.
