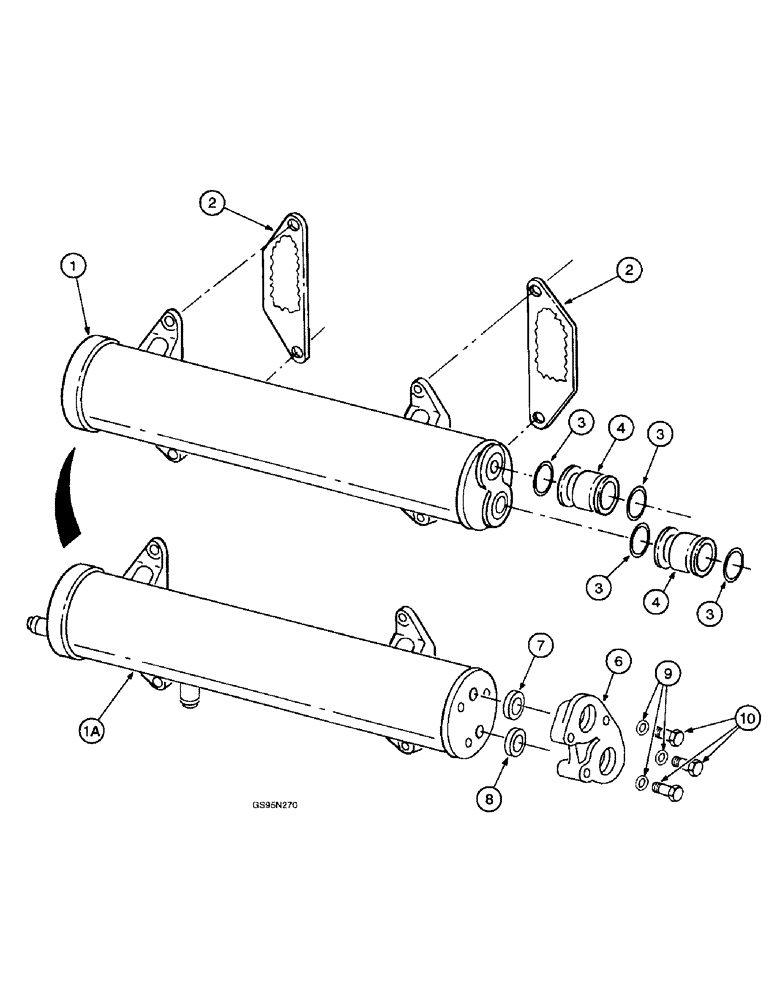

Запчасти Case IH DT-414 (9C-72) - OIL COOLER AND CONNECTIONS

1

690884C2

COOLER

COOLER - oil, no longer used, order cooler 1810171C2, item 1A

1шт.

1a

1810171C2

COOLER, OIL

COOLER - oil (Replaces oil coolers 677092C92 and 690884C2)

1шт.

735260C92

REMAN-OIL COOLER

D-414 - 6 CYLINDER DIESEL ENGINE -

1шт.

1938223C1

CORE-OIL COOLER

Return Number

1шт.

735260C92

REMAN-OIL COOLER

DT-414 - 6 CYLINDER TURBO DIESEL ENGINE -

1шт.

1938223C1

CORE-OIL COOLER

Return Number

1шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

BOLT, (Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, (Replaces washer 115093) 3/8"

4шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

2

675513C1

OIL SEAL

SEAL - oil cooler mounting

2шт.

3

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING, (Replaces O-ring 252483R1) -218, 70 Duro, 1.234" ID x .139" Thk

4шт.

4

677110C1

PIPE FITTING

TUBE - cooler to front cover, used with oil coolers 677092C92 and 690884C2

2шт.

6

1810568C1

PLATE

SPACER - coolant passage

1шт.

7

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

O-RING, Rect, .5" ID x .688" OD, Cl 5

1шт.

8

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

O-RING, -124, 70 Duro, 1.237" ID x .103" Thk

1шт.

9

27439R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

BOLT - hex prevailing torque, 5/16 NC x 1-3/4 inch (Replaces 310-1528)

3шт.

10

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

WASHER - flat, 11/32 x 11/16 x 3/32 inch, hardened

3шт.

735260C92

REMAN-OIL COOLER

COOLER - oil, remanufactured, component parts do not apply to the remanufactured assembly

1шт.

1938223C1

CORE-OIL COOLER

RETURN NUMBER - use this part number to return cooler core for credit when using a remanufactured assembly

1шт.

1815568C91

COOLER, OIL

KIT - oil cooler, new, used with engine serial numbers prior to 517251, Includes: Ref. 1, 2, 3, 6, 7, 8, 9 & 10

1шт.
