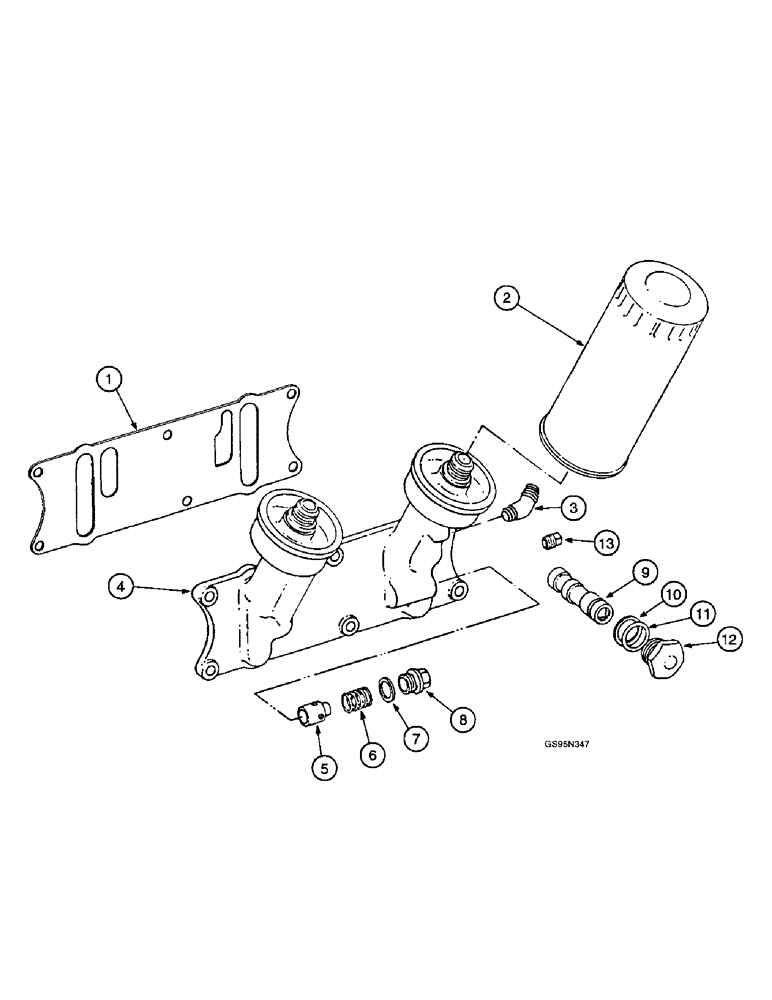

Запчасти Case IH DT-414 (9C-70) - LUBRICATING OIL FILTER

1

675398C2

GASKET

- oil filter base

1шт.

2

A184775

ENGINE OIL FILTER

FILTER - lubricating oil, 8 inch high (Replaces filters 675617C91 and 675616C91)

1шт.

2

677709C91

ENGINE OIL FILTER

FILTER - lubricating oil, 4 inch high, used on tractors equipped with 85 cotton harvester

2шт.

3

606889C1

ELBOW

- 45 degree, used with DT-414 engines

1шт.

4

675358C1

BASE

- lubricating oil filter

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex prevailing torque, 3/8 NC x 1-1/8 inch, grade 8

6шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

6шт.

5

601917C1

VALVE

- base

1шт.

6

676137C1

SPRING

- valve

1шт.

7

676136C1

GASKET

- valve plug

1шт.

8

676135C1

PLUG

- plug

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - oil pressure regulating, order kit 680237C91 below

1шт.

10

261624R1

GASKET

- regulator valve cap

1шт.

11

349055R2

RING

O-RING - 13/16 x 1 x 3/32 inch

1шт.

12

675395C1

CAP

- pressure regulating valve

1шт.

13

221-841

PLUG

- hex socket, 1/4 inch PT, used with D-414 engines (Replaces plug 444655)

1шт.

680237C93

ASSEMBLY

KIT - oil pressure regulating valve, Includes: Ref. 9 - 11

1шт.
