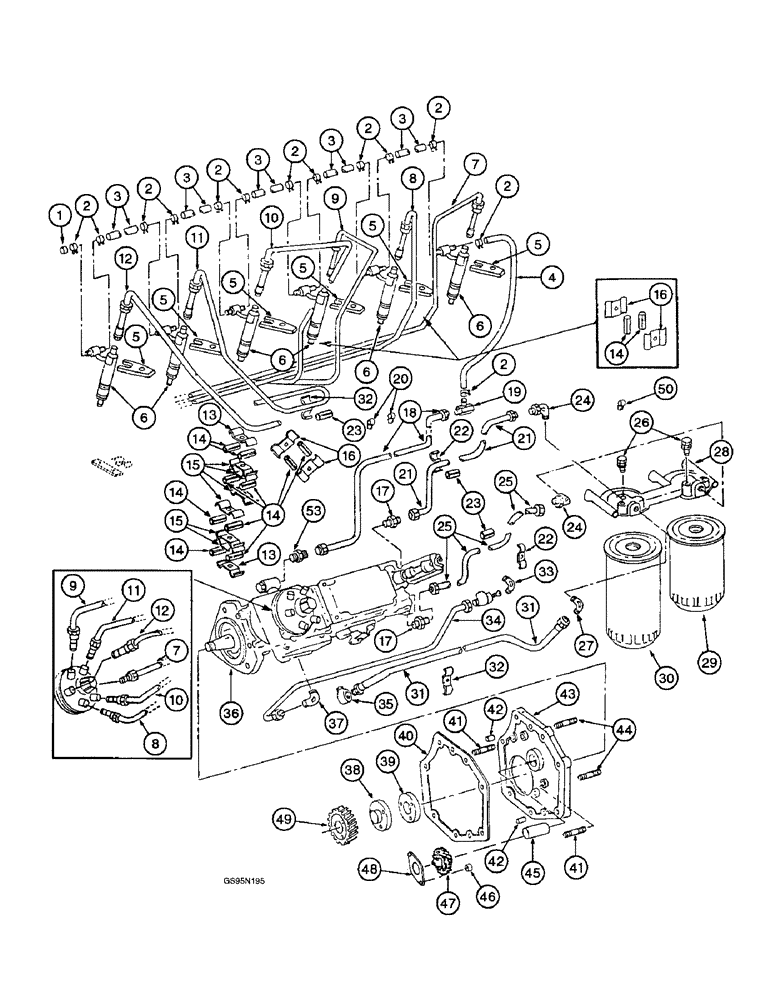

Запчасти Case IH DT-414 (9C-62) - FUEL INJECTION PUMP AND CONNECTIONS

1

1802452C1

CAP

PLUG - fuel return, injector no. 1 (Replaces plug 676547C1)

1шт.

2

A180159

CLAMP,10.29mm - 12.32mm

CLIP - leakoff hose (Replaces clips 677129C1 and 1802453C1)

13шт.

3

REF

INSTRUCTION

HOSE - fuel return injector to injector, 5 inch (127 mm) long, cut from bulk hose 680246CX below

5шт.

4

REF

INSTRUCTION

HOSE - injector, no. 6 to leakoff tube, 10 inch (254 mm) long, cut from bulk hose 680246CX below

1шт.

5

675479C2

CLAMP

CRAB - injection nozzle

6шт.

691105C1

BOLT

- hex, 5/16 NC x 1-1/16 inch, injector crab (Together with crab 675479C2, replaces bolt 684497C1 and washer 675677C1)

6шт.

6

REF

INSTRUCTION

NOZZLE ASSEMBLY - injection, parts list page 9-31

6шт.

1342831C1

SEAL

GROMMET - injection dust cover (Replaces grommet 682810C1)

6шт.

7

680126C1

PIPE

- injection, cylinder no. 6, used with 966 and 1066 tractors

1шт.

7

684516C1

PIPE

- injection, used with 1086 tractors with engine serial numbers, Serial Range: prior-140024

1шт.

7

688856C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder no. 6, used with 1086 tractors with engine serial nunber 140024 and after

1шт.

8

680125C1

PIPE

- injection, cylinder no. 5, used with 966 and 1066 tractors

1шт.

8

684515C1

PIPE

- injection, cylinder no. 5, used with 1086 tractors with engine serial numbers, Serial Range: prior-140024

1шт.

8

688855C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder no. 5, used with 1086 tractors with engine serial number 140024 and after

1шт.

9

680124C1

PIPE

- injection, cylinder no. 4, used with 966 and 1066 tractors

1шт.

9

684514C1

PIPE

- injection, cylinder no. 4, used with 1086 tractors with engine serial numbers, Serial Range: prior-140024

1шт.

9

688854C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder no. 4, used with 1086 tractors with engine serial number 140024 and after

1шт.

10

680123C1

PIPE

- injection, cylinder no. 3, used with 966 and 1066 tractors

1шт.

10

684513C1

PIPE

- injection, cylinder no. 3, used with 1086 tractors with engine serial numbers, Serial Range: prior-140024

1шт.

10

688853C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder no. 3, used with 1086 tractors with engine serial number 140024 and after

1шт.

11

680122C1

PIPE

- injection, cylinder no. 2, used with 966 and 1066 tractors

1шт.

11

684512C1

PIPE

- injection, cylinder no. 2, used with 1086 tractors with engine serial numbers, Serial Range: prior-140024

1шт.

11

688852C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder no. 2, used with 1086 tractors with engine serial number 140024 and after

1шт.

12

680121C1

PIPE

- injection, cylinder no. 1, used with 966 and 1066 tractors

1шт.

12

684511C1

PIPE

- injection, cylinder no. 1, used with 1086 tractors with engine serial numbers, Serial Range: prior-140024

1шт.

12

688851C1

PIPE,0.072" ID, 0.25" OD, 35.5" Length

TUBE - injection, cylinder no. 1, used with 1086 tractors with engine serial number 140024 and after

1шт.

13

673527C1

CLAMP

- fuel line tube, eight used with 1086 tractors

2шт.

23232R1

NUT - hex, 1/4 inch NC, no longer used

1шт.

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

(Replaces screw 25491R1) Hex, 1/4"-20 x 2", G8

1шт.

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752R1) Hex, 1/4"-20 x 1/2", G8, Full Thd

1шт.

684548C1

NUT

- spring, no longer available

4шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW - slotted head, 1/4 NC x 1-1/4 inch (Replaces screw 113961)

3шт.

14

258079C1

GROMMET

- injection line

14шт.

680246CX

LARGE HOSE

HOSE - bulk, 10 foot (3048 mm) long, sold by the foot

1шт.

15

673577C1

CLAMP

- duplex tube, three used with 1086 tractors

2шт.

16

701155C1

CLAMP

- injection pipe (Replaces clamp 674851C1)

6шт.

24942R1

NUT

- hex, 5/16 inch NC

3шт.

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces bolt 25493R1) Hex, 5/16"-18 x 1", G8, Full Thd

3шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

3шт.

17

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - primary pump inlet, primary filter to injection pump tube and final filter to injection pump tube, compression, 3/8 tube OD x 1/4 inch PT (Replaces connector 606819C1)

1шт.

18

680316C91

TUBE,0.375" OD, 28.88" Length

- fuel return, lower

1шт.

265204R1

SLEEVE

- fuel return tube

2шт.

265205R1

TUBE NUT,0.531" Length

NUT - fuel return tube

2шт.

19

673196C1

TEE

- fuel leakoff, used with 966, 1066 tractors and 815, 915 combines

1шт.

19

689382C1

TEE

- fuel leakoff, used with 1086 tractors

1шт.

20

673193C1

CLIP

- tube, fuel return

2шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

2шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

21

684077C91

TUBE,0.375" OD, 15.75" Length

- primary pump to final filter

1шт.

22

673527C1

CLAMP

- fuel tube, primary pump to final filter and primary filter to primary pump tube

2шт.

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752R1) Hex, 1/4"-20 x 1/2", G8, Full Thd

1шт.

262038R1

NUT

- speed

1шт.

23

673171C1

RUBBER BUSHING

SLEEVE - rubber, fuel pipe

2шт.

23

258079C1

GROMMET

- injection tube, fuel pipe

1шт.

23

397483R1

GROMMET

CUSHION - fuel pipe (Replaces cushion 536410R1)

2шт.

24

222-4047

ELBOW

- primary filter outlet and final filter inlet, 90 degree compression x 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

2шт.

25

684075C91

TUBE,0.375" OD, 22.25" Length

- primary filter to primary pump

1шт.

26

39677DA

VALVE

- bleeder

1шт.

27

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree x 5/8 inch x 1/4 inch PT (Replaces elbow 118755)

1шт.

28

1809590C91

HEAD ASSY.

HEADER - fuel filter (Replaces header 676143C2)

1шт.

326-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 8

(Replaces bolt 28784R1) Hex, 3/8"-16 x 4 1/4", G8

3шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

3шт.

29

A184773

SEPARATOR

FILTER - primary fuel (Replaces filter 625627C1)

1шт.

30

A184774

FUEL FILTER

FILTER - final fuel (Replaces filter 672603C2)

1шт.

31

688190C1

HOSE

- final filter to injection pump (Replaces 684167C1 by also ordering elbow 118755)

1шт.

32

684899C1

CLAMP

- hose, final fuel to injection pump and primary filter to no. 2 injection pipe

4шт.

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752R1) Hex, 1/4"-20 x 1/2", G8, Full Thd

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut 24468R1) 1/4"-20, GB

2шт.

33

319615R1

ELBOW

- 1/8 inch x 90 degree male

1шт.

33

686839C1

ELBOW

- flex, side outlet, 90 degree x 1/4 inch tube x 1/8 inch NPT, used with 1086 tractors

1шт.

34

673165C91

TUBE,1" OD

- lube oil

1шт.

34

688301C91

TUBE

- lube oil, used with 1086 tractors

1шт.

35

REF

INSTRUCTION

ELBOW, injection pump hose, furnished as part of injection pump

1шт.

36

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figures 9C-26, 9C-36 and 9C-48

1шт.

37

606296C1

90 ELBOW

- flex lube oil inlet, 1/4 inch NPT x 90 degree

1шт.

38

676925C1

HUB

- injection pump gear

1шт.

39

676926C1

PLATE

- gear retainer

1шт.

27366R1

BOLT,Hex, 5/16" - 24 x 1 1/2", Gr 8

SCREW - hex, 5/16 NC x 1-1/2 inch (Replaces screw 21512R1)

3шт.

40

675609C2

GASKET

- injection pump mounting adapter

1шт.

41

670364C2

STUD

- used only with gray iron adapter 676928C1

2шт.

42

680481C1

PIN

- dowel, 1/4 x 5/8 inch

2шт.

43

676942C93

ADAPTER

- injection pump mounting, used with all except 815 and 915 combines

1шт.

43

689146C91

ADAPTER

- injection pump mounting, used with 815 and 915 combines

1шт.

329-116

NUT,3/8"-24, G8

(Replaces nut 25523R1) 3/8"-24, G8

2шт.

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

(Replaces bolt 25232R1) Hex, 5/16"-18 x 2", G8

1шт.

326-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

Adapter to front cover (Replaces bolt 25235R1) Hex, 5/16"-18 x 2 1/2", G8

2шт.

27292R1

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 8

SCREW - hex, 5/16 NC x 2-1/4 inch

2шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

3шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 9/64 inch, hardened (Replaces washer 25544R1)

1шт.

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (Replaces washer 27326R1)

2шт.

302861R1

COPPER WASHER,8.33mm ID x 14.28mm OD x 1.58mm Thk

- flat

2шт.

44

256333R1

STUD

- pump mounting

2шт.

45

19968R1

DOWEL,3/4" x 1 3/4"

PIN - dowel, 3/4 x 1-3/4 inch

1шт.

46

676936C1

SPACER

- not used on combines

2шт.

47

676938C1

GEAR

- tachometer drive, 32 teeth, not used on combines

1шт.

48

676937C1

PLATE

- tachometer thrust drive

1шт.

232-4615

LOCK NUT,5/16"-24, GC

NUT, LOCK, (Replaces nut 273767), Not used on combines 5/16"-24, GC

2шт.

49

676922C2

GEAR

- injection pump, 33 teeth

1шт.

50

388922R2

CLIP

- electrical cable, used with 1086 tractors

1шт.

27431R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

- hex lock, 3/8 NC x 1/2 inch, grade 8

1шт.

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

53

687426C1

ADAPTER,1/4" NPT x 5/8" - 24 NPT

FITTING - fuel return tube orifice (Replaces fitting 606819C1 in fuel return line by ordering elbow 217-21)

1шт.
