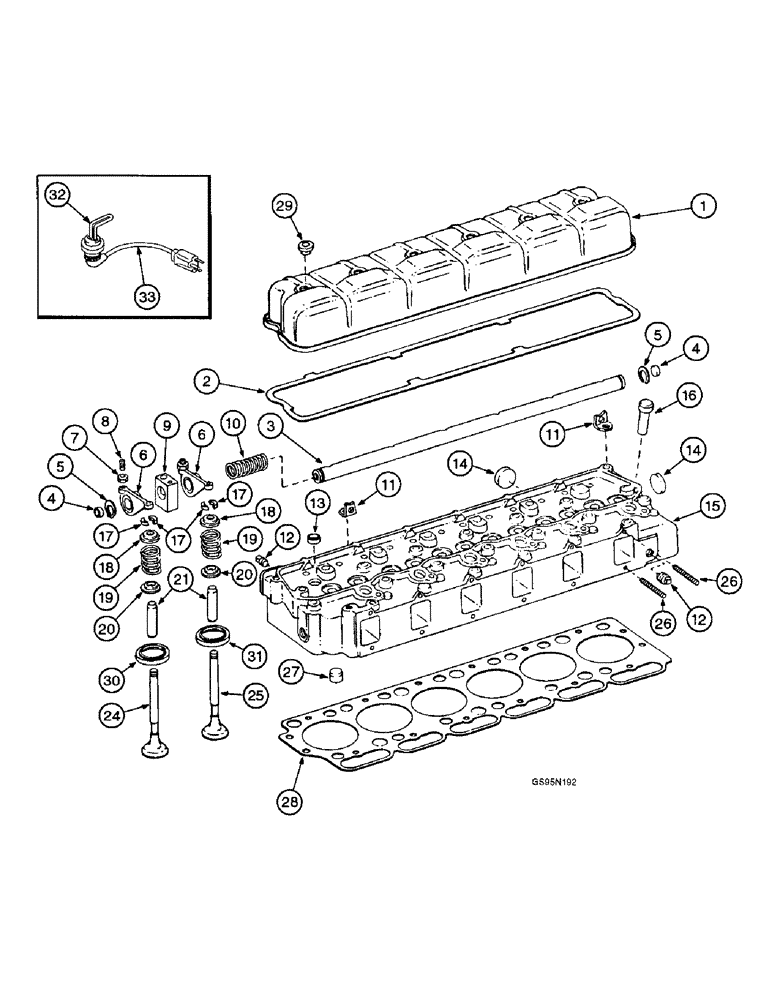

Запчасти Case IH DT-414 (9C-16) - CYLINDER HEAD AND RELATED PARTS

1

676088C5

COVER

- valve, used with 966 and 1066 tractors, 815 and 915 combines, 1086 tractors with engine serial numbers, Serial Range: prior-118713

1шт.

On orders for valve cover 676088C2, order cover 676088C3 and gasket 675109C2.

1шт.

1

690339C3

VALVE COVER

COVER - valve, used with 1086 tractors with engine serial numbers 118713 and after

1шт.

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

(Replaces bolt 25654R1) Hex, 5/16"-18 x 1 1/2", G8

6шт.

2

1342828C1

GASKET

- valve cover (Replaces gasket 675109C2)

1шт.

3

675660C92

SHAFT

- rocker arm

1шт.

4

41-109

PLUG,Cup, 9/16"

- rocker arm shaft (Replaces plug 291171C1)

2шт.

5

100-1184

SNAP RING,#84, Ext

Ring, Snap, (Replaces ring 24577R1) #84, Ext

2шт.

6

682260C91

LEVER

ARM - valve rocker, engine serial numbers, Serial Range: prior-103557

12шт.

6

1820830C92

ROCKER

ARM - valve rocker, engine serial number 103557 and after (Replaces arm 688999C93)

12шт.

7

133093R1

NUT,Hex, 3/8" - 24

- adjusting screw

1шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

- rocker arm adjusting

1шт.

9

675547C2

BRACKET

- rocker arm shaft, no longer available, order bracket 1802461C3 below

5шт.

9

1802461C3

SUPPORT

BRACKET - rocker arm shaft, used at cylinder numbers 2 and 5, order kit 1802464C92

6шт.

9

1802462C2

BRACKET

- rocker arm shaft, used at cylinder no. 4, no longer used, order bracket 1802461C3 above

1шт.

10

675105C1

SPRING

- rocker arm shaft

5шт.

11

675455C1

EYE

- lifting

2шт.

25830R1

BOLT,Hex, 9/16" - 12 x 1 1/4", Gr 8

SCREW - hex, 9/16 NC x 1-1/4 inch (Replaces screw 24648R1)

2шт.

12

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751)

2шт.

13

41-1618

PLUG,Cup, 1 1/8", Stainless

- cup, 1-1/8 inch (Replaces plug 21427R1)

6шт.

14

41-1624

PLUG,Cup, 1 1/2", Stainless

- cup, 1-1/2 inch (Replaces plug 601093C1)

6шт.

1800901C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, used with 966 tractors and 815 combines (Replaces head assembly 684400C92), Includes: Ref. 15 - 27

1шт.

749605C92

REMAN-CYLINDER HEAD

Head Assembly - cylinder, remanufactured for 684400C92, component parts do not apply to the remanufactured assembly

1шт.

1928091C1

CORE-CYLINDER HEAD

Return Part Number - use this part number to return cylinder head for credit when using a remanufactured assembly

1шт.

691876C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, used with 1066 tractors, 915 combines and 1086 tractors, no longer used, order head assembly 749635C92, Includes: Ref. 15 - 27

1шт.

749635C92

REMAN-CYLINDER HEAD

Head Assembly - cylinder, remanufactured for 691876C91, component parts do not apply to the remanufactured assembly

1шт.

1928111C1

CORE-CYLINDER HEAD

Return Part Number - use this part number to return cylinder head for credit when using a remanufactured assembly

1шт.

749854C92

REMAN-CYLINDER HEAD

Head Assembly - cylinder, remanufactured for 691877C91, component parts do not apply to the remanufactured assembly

1шт.

1928113C1

CORE-CYLINDER HEAD

Return Part Number - use this part number to return cylinder head for credit when using a remanufactured assembly

1шт.

1816969C91

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, used with 1086 tractors with engine serial numbers 140024 and after (Replaces head assemblies 687199C91 and 691877C91), Includes: Ref. 15 - 27

1шт.

15

NSS

NOT SOLD SEPARAT

HEAD - cylinder, order head assembly

1шт.

676119C1

BOLT

- cylinder head long

6шт.

676120C1

BOLT

- cylinder head short

20шт.

252018R1

WASHER,15.11mm ID x 25.4mm OD x 4.83mm Thk

- cylinder head bolt

26шт.

16

675442C1

SLEEVE

- injector

6шт.

17

41339D

KEY

LOCK - valve spring retainer

24шт.

18

682221C92

VALVE

ROTATOR ASSEMBLY - valve, top (Replaces rotator 1811581C91), Includes: Ref. 18A

12шт.

18a

1342827C1

SHIELD

- oil (Replaces oil shield 681234C1), not illustrated

1шт.

19

682064C1

SPRING

- valve

12шт.

20

675443C1

SEAT

- valve spring

12шт.

21

675439C1

GUIDE

- valve

12шт.

24

675046C4

VALVE,ENGINE,INLET,S

VALVE - intake

6шт.

25

676865C4

VALVE

- exhaust

6шт.

26

682840C1

STUD

- manifold, exhaust, no longer available, order bolt 1809774C1

12шт.

27

675045C1

DEFLECTOR

DIRECTOR - water, engine serial numbers, Serial Range: prior-153591

12шт.

27

691183C1

DEFLECTOR

DIRECTOR - water, engine serial number 153591 and after

12шт.

1809774C1

STUD,Hex, 7/16" - 14 x 1.50"

BOLT - hex prevailing torque, 7/16 NC x 1-1/2 inch

12шт.

28

1342421C2

CYLINDER HEAD GASKET

- cylinder head (Replaces gasket 676108C2)

1шт.

29

1342830C1

SEAL

GROMMET - valve cover (Replaces grommets 313971R1 and 677692C1)

1шт.

30

671559C1

INSERT

- intake valve seat, 0.002 inch oversize

6шт.

30

671561C1

INSERT

- intake valve seat, 0.015 inch oversize

6шт.

31

671563C2

INSERT

- exhaust valve seat, 0.002 inch oversize

6шт.

31

671565C1

INSERT

- exhaust valve seat, 0.015 inch oversize

6шт.

32

71151C91

HEATER

- engine block, 115 volt, used with 966, 1066 and 1086 tractors; 815 and 915 combines

1шт.

33

A44813

CABLE EXTENSION

CABLE - engine block heater, 12 inch (305 mm) long (Replaces cable 71150C1)

1шт.

A44813 is 1ft. long. For 6ft. long cord, order J905113 or 196466A1. 4/12/02 CJK-TSG

1шт.
