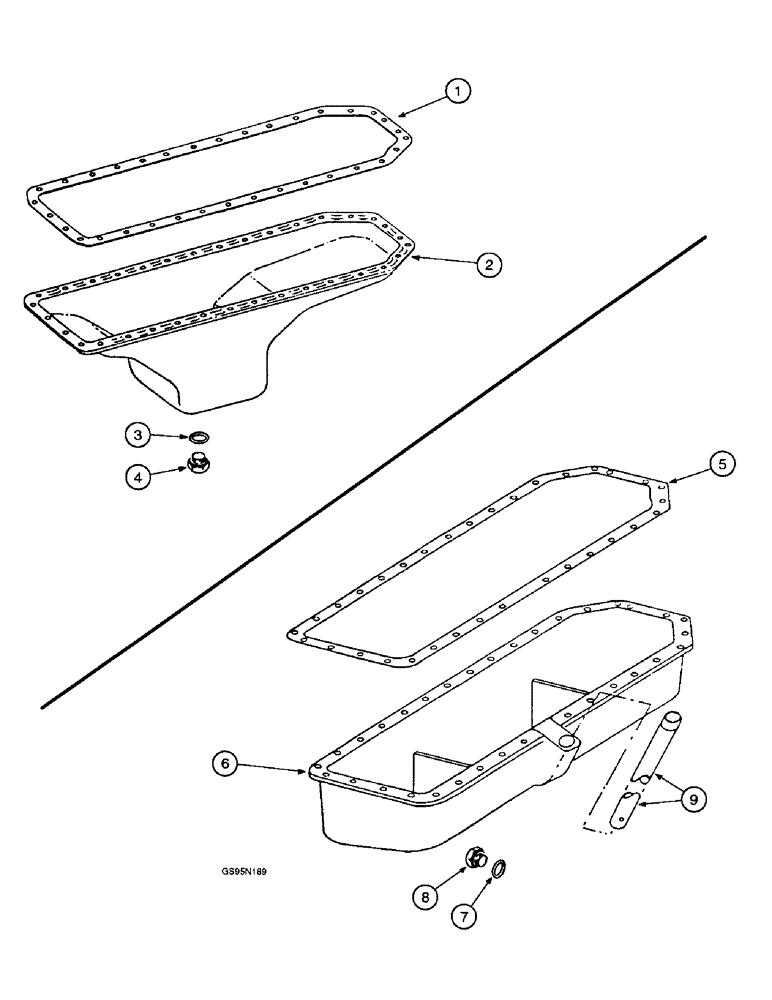

Запчасти Case IH DT-414 (9C-10) - CRANKCASE OIL PAN, 966, 1066 AND 1086 TRACTORS, 815 AND 915 COMBINES

1

671827C4

OIL PAN GASKET SET

- oil pan, crankcase, 966, 1066 and 1086 Tractors

1шт.

2

671826C91

PAN

- crankcase oil, 966, 1066 and 1086 Tractors

1шт.

677490C1

SCREW

- oil pan

34шт.

3

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug, 966, 1066 and 1086 Tractors

1шт.

4

688067C1

PLUG

- crankcase oil pan drain, 966, 1066 and 1086 Tractors

1шт.

5

671827C4

OIL PAN GASKET SET

- oil pan, crankcase, 815 and 915 Combines

1шт.

6

678568C91

SUMP

PAN - crankcase oil with drain plug, also order oil filler tube 680907C1, 815 and 915 Combines

1шт.

690358C1

SCREW

- hex, 5/16 NC x 1 inch, includes conical washer

33шт.

7

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug, 815 and 915 Combines

1шт.

8

688067C1

PLUG

- crankcase oil pan drain, 815 and 915 Combines

1шт.

9

680907C1

TUBE - oil filler, 815 and 915 Combines

1шт.
