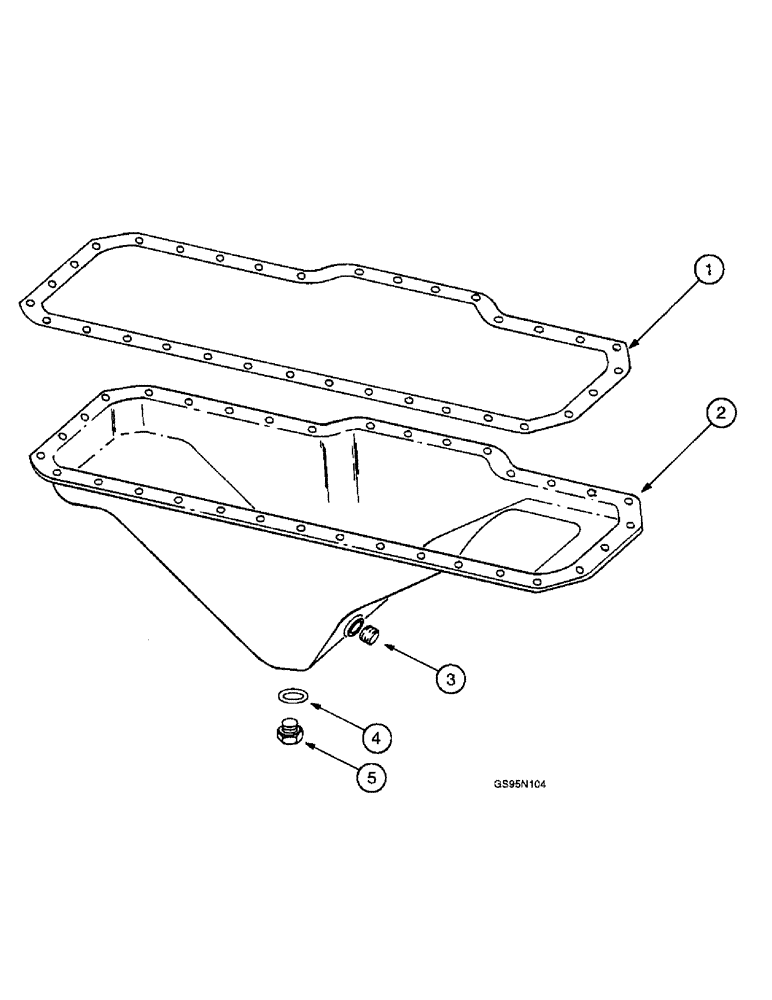

Запчасти Case IH DT-407 (7-06) - CRANKCASE OIL PAN

1

328731R2

OIL PAN GASKET SET

- oil pan

1шт.

332065R11

PAN

ASSEMBLY - oil, used with all machines except 815 and 915 combines, Includes: Ref. 2 - 5

1шт.

612118C11

PAN ASSY.

PAN ASSEMBLY - oil, used with 815 and 915 combines, no longer available, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

PAN - oil, order pan assembly

1шт.

3

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG - hex socket, 3/4 inch PT, used with pan assembly 332065R11 (Replaces plug 9409949)

1шт.

3

333988R1

INSERT - helicoil, used with pan assembly 612118C11, no longer available

1шт.

4

3405HA

GASKET

- drain plug

1шт.

5

688067C1

PLUG

- crankcase oil pan drain (Replaces plug 445096)

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

33шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

33шт.
