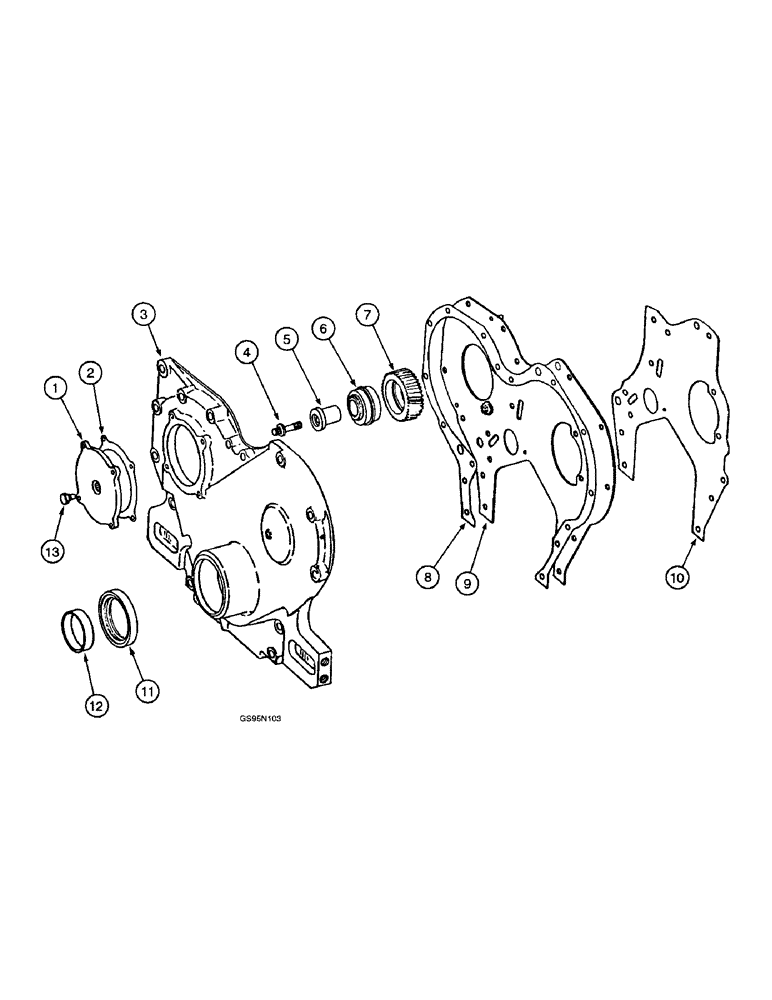

Запчасти Case IH DT-407 (7-04) - CRANKCASE FRONT COVER AND IDLER GEAR

1

341523R11

COVER

- injection pump, no longer available

1шт.

27768R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

SCREW - hex, 3/8 NC x 7/8 inch (Replaces screw 311979R1)

4шт.

2

326582R2

GASKET

- injection pump cover

1шт.

3

349040R2

COVER - crankcase front, no longer available

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 103026).

2шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)

5шт.

25778R1

BOLT,Hex, 3/8" - 24 x 2 3/4", Gr 8

SCREW - hex, 3/8 NC x 2-3/4 inch (Replaces screw 181384)

2шт.

430-830

BOLT - hex, 1/2 NC x 1-7/8 inch (Replaces screw 179888)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

7шт.

4

670033C1

BOLT (SPREADER)

BOLT - counterbore, left-hand

1шт.

5

326583R2

SHAFT

- idler gear

1шт.

601740C1

WASHER

SPACER - idler gear shaft

1шт.

6

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

- idler gear

1шт.

7

326612R1

PINION

GEAR - injection pump idler

1шт.

8

326580R1

GASKET

- front cover

1шт.

9

328732R11

PLATE ASSEMBLY - crankcase front, no longer available, Includes: Ref. 9A & 9B

1шт.

9a

264723R1

NUT - spline, no longer available, not illustrated

2шт.

9b

37-148

DOWEL,1/4" x 1/2"

PIN - dowel, 3/8 x 3/4 inch, hardened (Replaces pin 19841R1), not illustrated

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

10

328735R1

GASKET

- front plate

1шт.

606780C93

PACKAGE

KIT - oil seal, crankcase front, Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - oil, order kit 606780C93

1шт.

12

606779C2

SLEEVE

- wear

1шт.

13

606792C91

BUTTON

- thrust

1шт.
