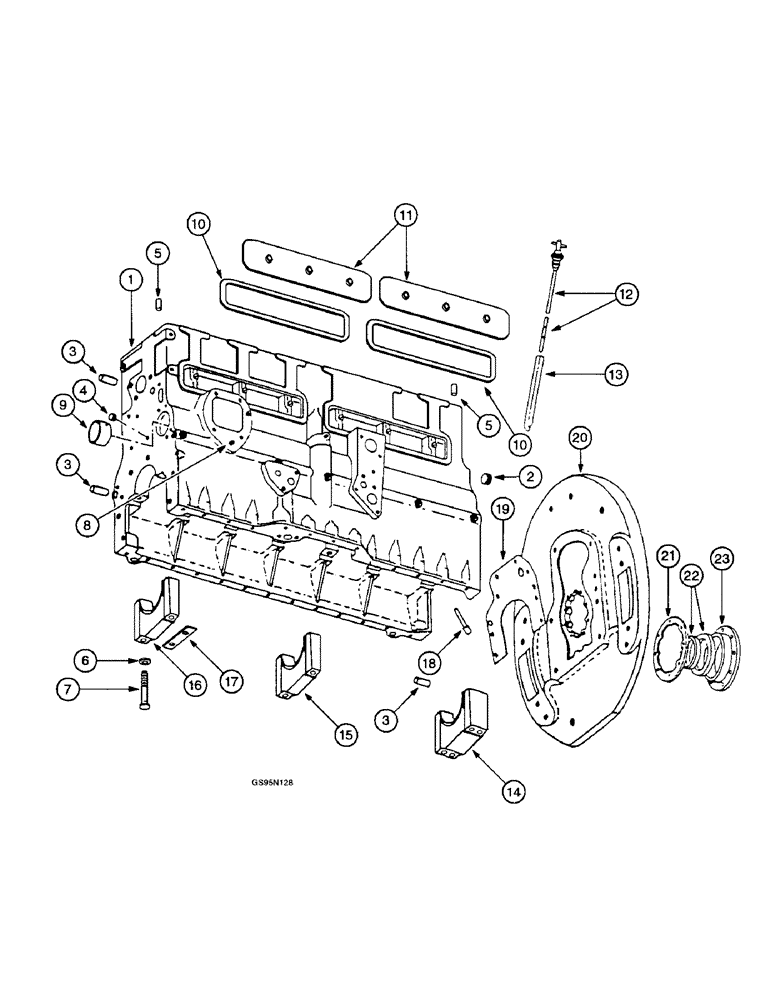

Запчасти Case IH DT-407 (7-02) - CRANKCASE AND RELATED PARTS

670896C92

CRANKCASE

ASSEMBLY - will work for 670019C92, no longer available, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKCASE - order crankcase assembly 670896C92

1шт.

670321C1

ADAPTER - crankcase, no longer available

1шт.

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24 (Replaces ball 7911T)

12шт.

NSS

NOT SOLD SEPARAT

CAP - crankcase

7шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- crankcase, hex socket, 3/8 inch PT (Replaces plug 444782)

3шт.

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - crankcase, square socket, magnetic, 1/2 inch PT (Replaces plug 444667)

1шт.

41-1610

PLUG,Cup, 5/8", Stainless

- crankcase (Replaces plug 347822R1)

5шт.

NSS

NOT SOLD SEPARAT

SLEEVE - crankcase, order crankcase assembly 670896C92

6шт.

50410DA

PLUG

- hex socket, 1/8 inch

2шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 445671)

3шт.

2

41-1626

PLUG,Cup, 1 5/8", Stainless

- cup (Replaces plug 22263R1)

5шт.

3

19838R1

DOWEL,15.88mm OD x 31.75mm L

PIN - dowel, 5/8 x 1-1/4 inch

4шт.

4

315365R1

PLUG

- metering

1шт.

5

37-1610

PIN,3/8" x 5/8"

- dowel, 3/8 x 3/4 inch, hardened (Replaces roll pin 20031R1)

2шт.

6

326515R1

WASHER,15.88mm ID x 28.45mm OD x 4.83mm Thk

- bearing cap bolt

13шт.

7

328729R1

BOLT (SPREADER),9/16" - 12 x 4 1/2"

BOLT - bearing cap

14шт.

8

37-1612

DOWEL,3/8" x 3/4"

PIN - dowel, 3/8 x 3/4 inch, hardened (Replaces pin 19962R1)

2шт.

9

332573R1

BEARING LINER

BEARING - camshaft front

1шт.

9

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

BEARING - camshaft intermediate front

1шт.

9

332629R1

BEARING LINER

BEARING - camshaft intermediate rear

1шт.

9

77514R1

BEARING LINER

BEARING - camshaft rear

1шт.

10

328739R1

GASKET

- push rod cover

2шт.

11

601812C1

COVER ASSY

COVER - push rod

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

6шт.

302861R1

COPPER WASHER,8.33mm ID x 14.28mm OD x 1.58mm Thk

- push rod cover

7шт.

12

609023C91

GAUGE

- oil level, used with 1026, 1256, 1456, 21026, 21256 and 21456 tractors

1шт.

18 inches from the tip of gage to bottom of T handle.

1шт.

12

607295C91

GAUGE ASSY.

GAUGE - oil filler, used with 856 and 2856 tractors

1шт.

20.55 inches from the tip of the gage to the bottom of the T handle.

1шт.

12

672371C1

GAUGE

- oil filler, used with 815 and 915 combines

1шт.

13

607293C1

TUBE

- oil filler

1шт.

14

349049R1

CAP - crankshaft rear bearing

1шт.

15

349050R1

CAP

- crankshaft intermediate bearing, no longer available

5шт.

16

349048R1

CAP - crankshaft front bearing

1шт.

17

332574R2

BRACKET

BRACE - oil pump outlet

1шт.

18

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

NOZZLE - oil jet

12шт.

19

328846R1

GASKET

- rear mounting plate

1шт.

20

332446R21

PLATE ASSEMBLY - crankcase rear mounting, used with all machines except 815 and 915 combines, no longer available, Includes: REf. 20A

1шт.

20a

45979D

STUD

PIN - rear mounting plate dowel, not illustrated

1шт.

21

332303R1

SEAL

- face plate

1шт.

22

1809964C92

OIL SEAL

KIT - crankshaft, seal and wear sleeve (Replaces kit 691631C91)

1шт.

23

601743C1

RETAINER

- rear oil seal

1шт.

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch (Replaces bolt 179886)

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

8шт.

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

(Replaces screw 214168R1) Locking, 5/16"-18 x 1", G8

8шт.
