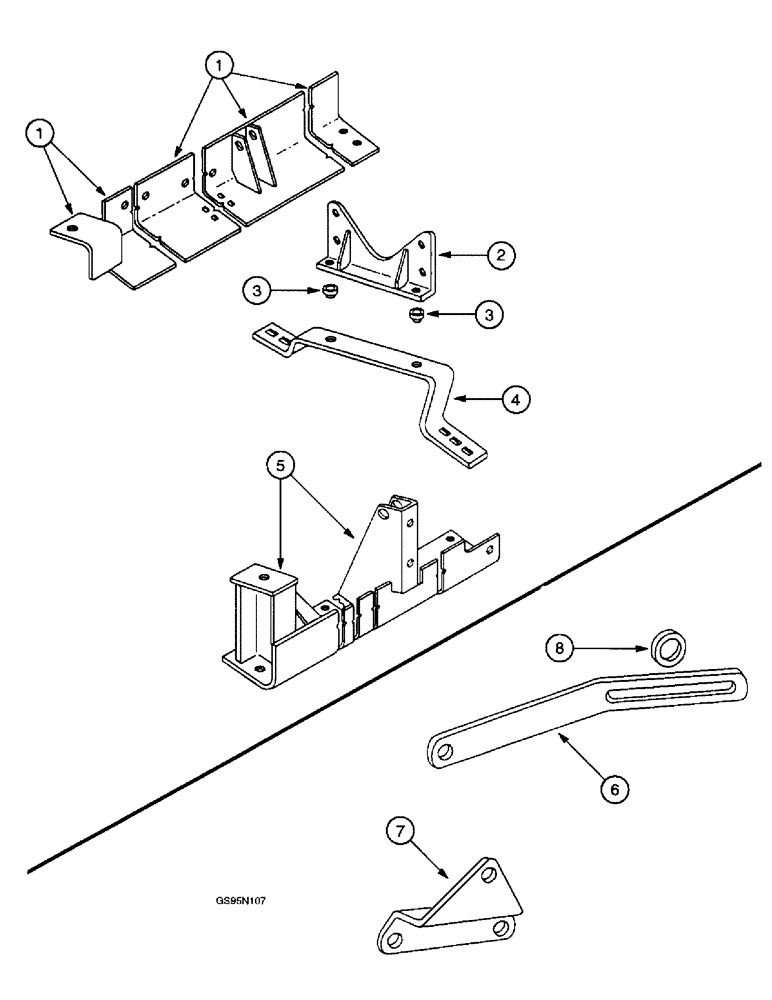

Запчасти Case IH DT-407 (7-74) - SUPPORTS, ENGINE SUPPORT, 815 AND 915 COMBINES / ALTERNATOR-GENERATOR BRACE

1

528426R1

RAIL - engine support, right-hand

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces bolt 271728)

1шт.

22047R1

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3 used with 915 combines, 4 used with 815 combines (Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 3 used with 915 combines, 4 used with 815 combines (Replaces nut 120378) 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Three used with 915 combines, four used with 815 combines (Replaces washer 120384) 1/2"

1шт.

2

672400C1

SUPPORT - front engine

1шт.

20808R1

BOLT - hex, 1/2 NC x 2-5/8 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

4шт.

222890R1

SPACER - front engine support

4шт.

3

L77573

BUSHING,16.51mm ID x 34.29mm OD x 25.4mm L

MOUNT - front vibration (Replaces mount 528506R1)

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (Replaces bolt 271724)

2шт.

21882R1

WASHER - flat, 21/32 x 2 x 1/16 inch

2шт.

22047R1

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

1шт.

4

528731R1

SUPPORT - engine mounting front

1шт.

419-3824

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5

BOLT - hex, 1/2 NC x 1-1/2 inch, plow repair (Replaces bolt 19071R1)

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 2 used with 915 combines, 5 used with 815 combines (Replaces nut 120378) 1/2"-13, G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Two used with 915 combines, five used with 815 combines (Replaces washer 120384) 1/2"

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Three used with 815 combines (Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

5

528421R1

RAIL - engine support, left-hand

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces bolt 271728)

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

4шт.

22047R1

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

6

385008R1

SUPPORT

BRACE - alternator-generator

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Replaces bolt 179820)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

7

385007R1

SUPPORT

BRACKET - alternator generator mounting

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 103026)

2шт.

14-660

SCREW,Hex, 3/8" - 24 x 3 3/4", Gr 5

BOLT - hex, 3/8 NC x 3-3/4 inch (Replaces screw 186311)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

8

280185R1

SPACER

- alternator-generator brace

1шт.
