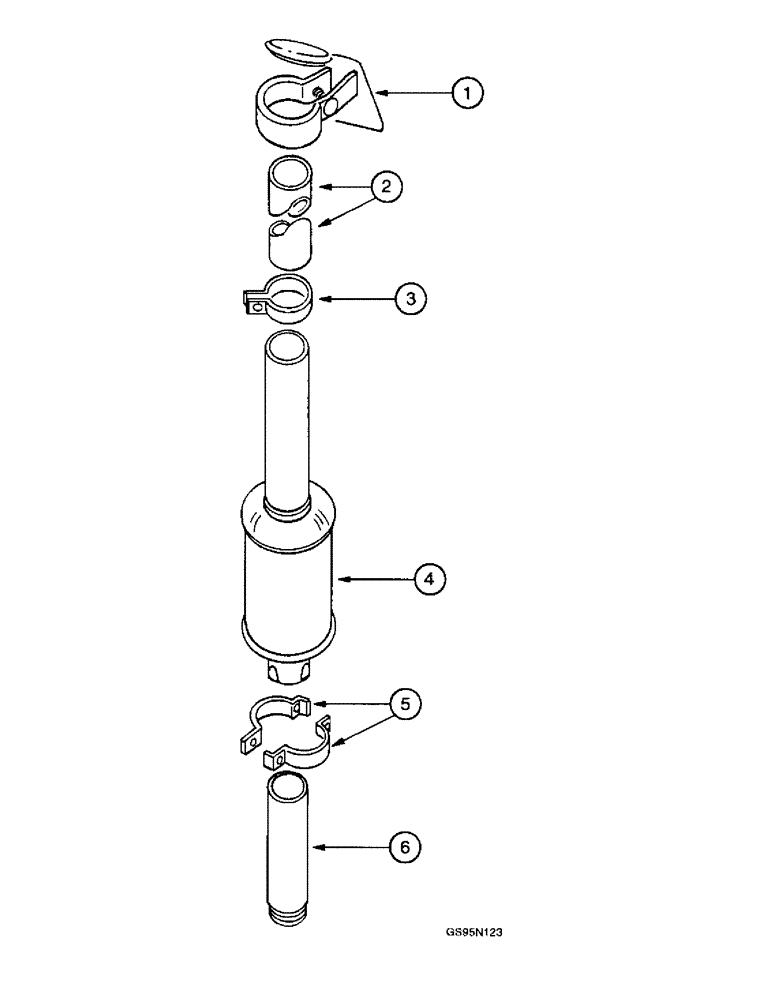

Запчасти Case IH DT-407 (7-72) - EXHAUST SYSTEM, 856 AND 2856 TRACTORS

1

D33884

CAP

- exhaust, 3-3/2 inch nominal size (Replaces cap 321575R91)

1шт.

1

999579R91

CYLINDER END CAP

CAP - exhaust, 3-1/4 inch nominal (Replaces cap 391160R91)

1шт.

2

527703R1

EXTENSION

- exhaust muffler, tractors with cab or protective frame

1шт.

On orders for pipe 402983R1, furnish pipe 527703R1, clamp 527704R2 and weather cap 402309R1.

1шт.

3

527704R2

CLAMP

- exhaust muffler extension, tractors with cab or protective frame (Replaces clamp 402984R1)

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 17471R1)

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces nut 102635) 3/8"-16, G5

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

4

398511R1

MUFFLER

- exhaust

1шт.

4

398511R1GV

MUFFLER

Value, Muffler

1шт.

5

402310R1

FASTENER

CLAMP - exhaust muffler

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (Replaces nut 102635) 3/8"-16, G5

2шт.

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, (Replaces screw 15032R1) Short NK, 3/8"-16 x 1 1/2", G5

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

6

383974R2

TUBE,17.8" Length

PIPE - exhaust

1шт.
