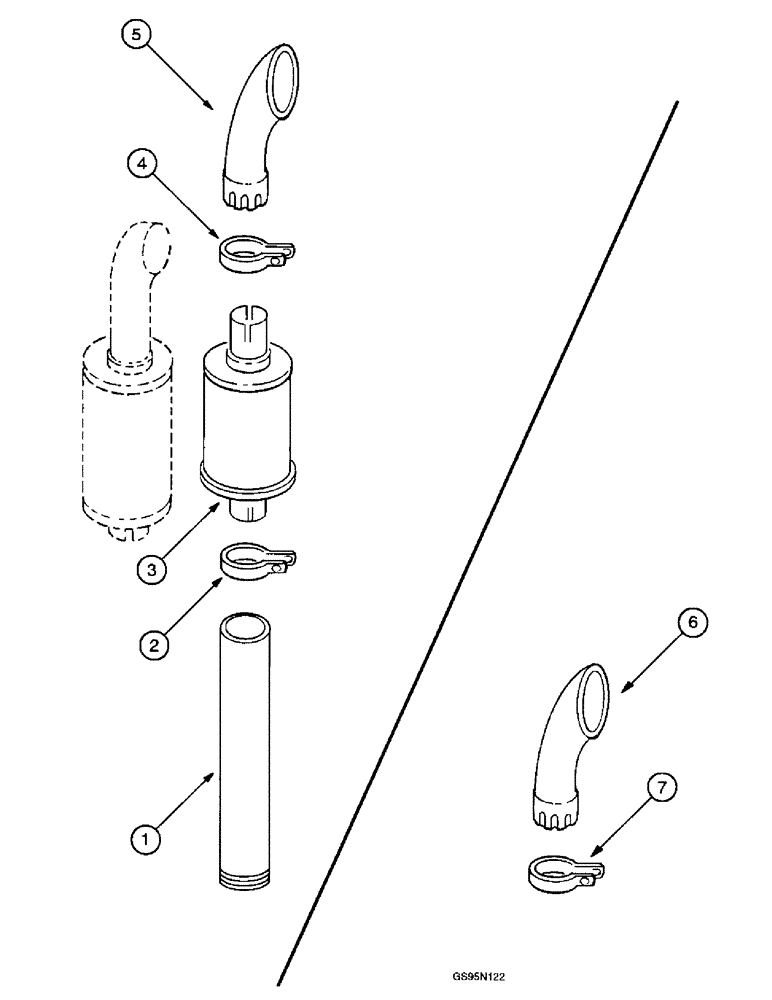

Запчасти Case IH DT-407 (7-70) - EXHAUST SYSTEM, 815 COMBINES, 915 COMBINES

1

601717C1

PIPE - exhaust (Replaces pipe 668531R1), 815 combines

1шт.

2

384402R1

FASTENER

CLAMP - exhaust muffler, 815 combines

1шт.

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

(Replaces screw 180125) Hex, 3/8"-16 x 1 3/8", G5

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

3

398511R1

MUFFLER

- exhaust (Replaces mufflers 384345R92 and 401776R1), 815 combines

1шт.

3

398511R1GV

MUFFLER

Value, Muffler

1шт.

4

396910R2

CLAMP

- exhaust pipe, 815 combines

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

180214

SCREW - hex, 3/8 NC x 1-1/4 inch

1шт.

5

397178R2

EXHAUST SYSTEM PIPE,76.2 mm OD

PIPE - exhaust elbow, 815 combines

1шт.

6

530884R1

PIPE - exhaust extension, 915 combines

1шт.

7

402314R91

CLAMP,94.16mm - 97.21mm

- exhaust pipe, 915 combines

1шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - hex, 5/16 NC x 1-1/4 inch (Replaces bolt 15022R1)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.
