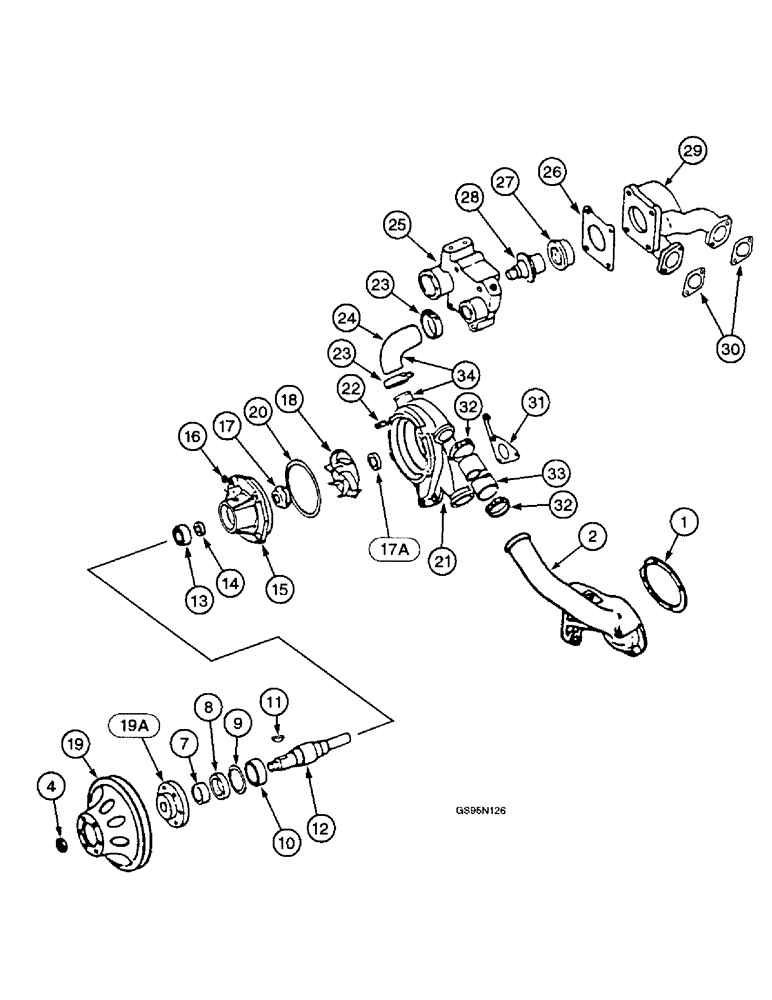

Запчасти Case IH DT-407 (7-64) - THERMOSTAT AND WATER PUMP

749551C91

REMAN-WATER PUMP

Also Order Hub PN 341105R1 , Key 142435 , and Nut 332310R1

1шт.

1928137C1

CORE-WATER PUMP

Return Part Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

337242R1

GASKET

GASKET - oil, Serial Range: cooler-header

1шт.

2

607254C2

SPARE PART HEADER - oil cooler front

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

BOLT - hex, 5/16 NC x 2-1/4 inch (Replaces screw 179827)

7шт.

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

BOLT, (Replaces screw 186272) Hex, 5/16"-18 x 4", G5

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT - hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

1шт.

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, (Replaces screw 186282) Hex, 3/8"-16 x 3 1/4", G5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

8шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

701335C92

CASE

HOUSING ASSEMBLY - water pump, new, no longer available, order remanufactured assembly 749551C91, Includes: Ref. 4 - 17A

1шт.

4

19687R1

LOCK NUT,7/8"-14

NUT - hex, 7/8 inch NF (Replaces nut 18501R1)

1шт.

7

326721R1

SPACER

SPACER - water pump

1шт.

8

333794R91

SEAL

SEAL - oil, water pump shaft

1шт.

9

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, , Brg (Replaces 456736R1) 2.062", Int, #206

1шт.

10

ST715

BEARING

BEARING - ball, water pump shaft front

1шт.

11

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

WOODRUFF KEY, (Replaces key 124549) #9, 3/16" x 3/4", HT

1шт.

12

345081R1

SHAFT

SHAFT - water pump

1шт.

13

L31005

BALL BEARING

BEARING - water pump shaft rear (Replaces bearing ST441)

1шт.

14

610051C91

SEAL

SEAL - oil, pump shaft rear

1шт.

15

749551C91

REMAN-WATER PUMP

Housing - bearing (Replaces housing 328889R1)

1шт.

15

1928137C1

CORE-WATER PUMP

Return Part Number

1шт.

16

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex, 3/8 inch PT (Replaces plug 444660)

1шт.

687161C92

KIT

KIT - seal, water pump, Includes: Ref. 17 & 17A

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 687161C92

1шт.

17a

NSS

NOT SOLD SEPARAT

SEAT - water pump, order kit 687161C92

1шт.

18

332311R1

IMPELLER

IMPELLER - water pump

1шт.

19

341013R1

PULLEY

PULLEY - fan, used with all machines except 815 and 915 combines

1шт.

19

332445R1

PULLEY

PULLEY - fan, used with 815 and 915 combines

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch (Replaces bolt 179839)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19a

341105R1

HUB

HUB - fan pulley

1шт.

425-116

NUT,3/8" - 24, Gr 5

NUT - hex, 3/8 inch NF (Replaces nut 103026)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

20

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

O-RING, (Replaces O-ring 285253R1) -254, 70 Duro, 5.484" ID x .139" Thk

1шт.

21

607253C11

BODY

BODY ASSEMBLY - water pump, Includes: Ref. 22

1шт.

22

273050R1

STUD

STUD - water pump body

4шт.

113-2408

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

BOLT - hex, 1/2 NC x 1-7/8 inch (Replaces screw 179888)

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

BOLT - hex, 1/2 NC x 2-1/4 inch (Replaces screw 179890)

3шт.

116105

WASHER

WASHER - flat, copper, 17/32 x 1-1/16 inch

1шт.

23

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

24

609000C1

HOSE

Thermostat by-pass, Used with all machines except 856 and 2856 tractors (Replaces hose 607259C1)

1шт.

24

607255C1

HOSE,1.50" ID x 4.65", SAE 20R4 Class SC or IH

Thermostat By-Pass, Used with 856 and 2856 Tractors

1шт.

25

607256C11

SPARE PART HOUSING ASSEMBLY - thermostat, used with all machines except 856 and 2856 tractors, Includes: Ref. 25A & 25B

1шт.

25a

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT (Replaces plug 444660), not illustrated

1шт.

25b

19955R1

PIN,1/4" x 1/2", Coiled

Pin, (replaces pin 19407R1), not illustrated 1/4" x 1/2", Coiled

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

25

349274R21

SPARE PART HOUSING ASSEMBLY - thermostat, used with 856 and 2856 tractors, Includes: Ref. 25A & 25B

1шт.

25a

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT (Replaces plug 444660), not illustrated

1шт.

25b

88434H

SPARE PART BEARING - ball, not illustrated

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, (Replaces bolt 179851) Hex, 3/8"-16 x 3", G5

2шт.

26

607258C1

GASKET

GASKET - thermostat housing, used with all machines except 856 and 2856 tractors

1шт.

26

326820R1

GASKET

GASKET - thermostat housing, used with 856 and 2856 tractors

1шт.

27

615175C91

SEAL

SEAL - thermostat

1шт.

28

619736C2

THERMOSTAT

THERMOSTAT - 175 to 190 degree Fahrenheit (Replaces thermostats 326978R91 and 702346C1)

1шт.

28

702346C1

THERMOSTAT

THERMOSTAT - 170 to 192 degree Fahrenheit, no longer used, order thermostat 619736C2 above

1шт.

29

607257C11

ELBOW UNION

Union Elbow ELBOW ASSEMBLY - thermostat housing mounting, used with all machines except 856 and 2856 tractors, Includes: Ref. 29A

1шт.

29a

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751), not illustrated

2шт.

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT, (Replaces screw 186282) Hex, 3/8"-16 x 3 1/4", G5

1шт.

113-2228

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

BOLT - hex, 3/8 NC x 1-5/8 inch (Replaces screw 179844)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

29

601549C11

SPARE PART ELBOW ASSEMBLY - thermostat housing mounting, used with 856 and 2856 tractors, Includes: Ref. 29A

1шт.

29a

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 445751), not illustrated

2шт.

113-2228

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

BOLT - hex, 3/8 NC x 1-5/8 inch (Replaces screw 179844)

3шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, (Replaces bolt 179851) Hex, 3/8"-16 x 3", G5

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

30

326818R1

GASKET

GASKET - elbow

2шт.

31

328892R1

GASKET

GASKET - water pump

1шт.

32

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 274087R91) #28, 1.31/2.25 Type F Worm

2шт.

33

407006R1

HOSE

HOSE - 36 inch (914 mm) long, cut from bulk hose S118571 below

1шт.

34

607253C11

BODY

BODY ASSEMBLY - water pump (Replaces body assembly 607387C91), Includes: Ref. 34A

1шт.

34a

607255C1

HOSE,1.50" ID x 4.65", SAE 20R4 Class SC or IH

Stud, Water Pump Body, Replaces Stud 273050R1, Not Illustrated

4шт.

S118571

HOSE,1.75" ID x 120.00", SAE 20R1

Bulk

1шт.
