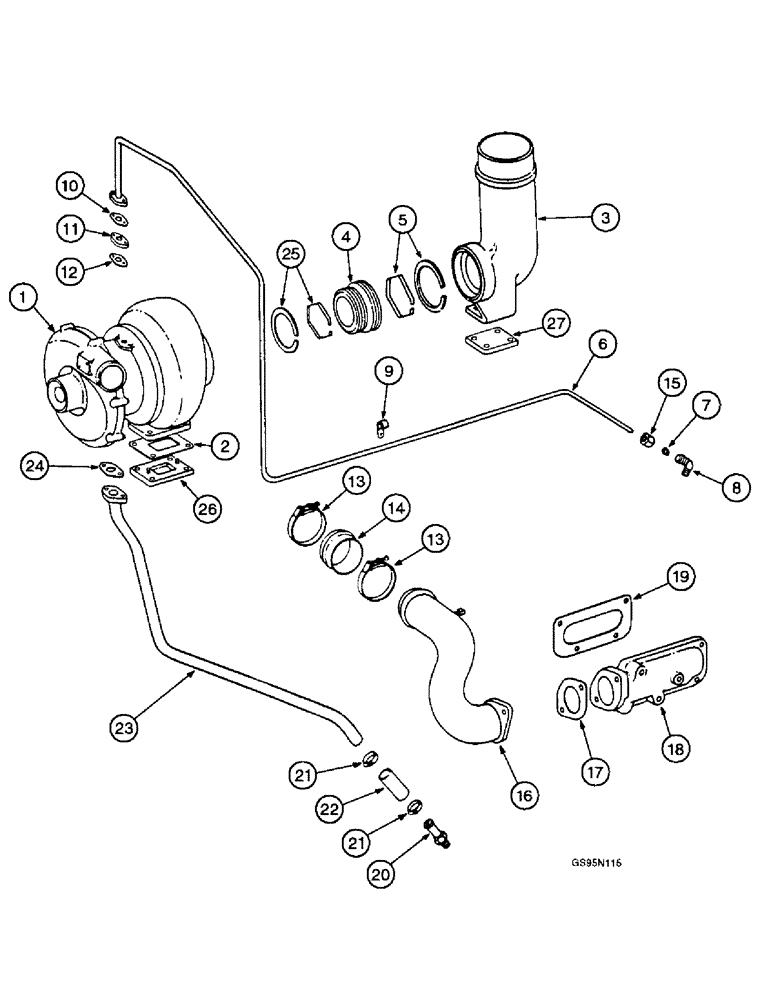

Запчасти Case IH DT-407 (7-60) - TURBOCHARGER AND CONNECTIONS, 1026, 1256, 1456, 21026, 21256, 21456 TRACTORS & 915 COMBINES

1

702277C91

SUPERCHARGER

TURBOCHARGER ASSEMBLY - engine, parts list Figure 7-58

1шт.

1

749305C91

REMAN-TURBOCHARGER

Remanufactured, TURBOCHARGER

1шт.

1

1928231C1

CORE-TURBOCHARGER

Return Number

1шт.

114-203

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex, 3/8 NF x 1-1/2 inch (Replaces bolt 181374)

4шт.

2

670035C1

GASKET

GASKET - turbocharger

1шт.

3

670034C1

ELBOW UNION

ELBOW - exhaust outlet, used with 1026, 1256, 1456, 21026, 21256 and 21456 tractors

1шт.

3

670049C1

ELBOW UNION

ELBOW - exhaust outlet, used with 915 combines

1шт.

114-203

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 181374)

4шт.

4

670036C1

SLEEVE CYLINDER

SLEEVE - exhaust outlet elbow

1шт.

5

606918C91

SEAL

SEAL - turbocharger exhaust sleeve

1шт.

6

670041C11

TUBE,14.6, 11.7" Length

- oil inlet (Replaces tube 670620C11)

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

277737R1

SLEEVE

- oil inlet tube

1шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, (Replaces nut 304451R1) 3/8"-24, GC

4шт.

8

277743R1

ELBOW UNION

ELBOW - oil inlet tube

1шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, (Replaces nut 304451R1) 3/8"-24, GC

4шт.

9

S64985

CLAMP

CLIP - drum harness, oil inlet tube (Replaces clip 670043C1)

1шт.

10

1342834C1

GASKET

- oil inlet tube flange (Replaces gasket 253660R1)

1шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, (Replaces nut 304451R1) 3/8"-24, GC

8шт.

11

601005C91

SCREEN - oil run-in, no longer used

1шт.

12

1342834C1

GASKET

- oil run-in screen (Replaces gasket 253660R1)

1шт.

13

995220R1

CLAMP

- No. 28, outlet hose (Replaces clamp 279027R91)

2шт.

14

670040C2

HOSE,1.96" ID x 2.50", SAE J200

Air Outlet, Used with 1026, 1256, 1456, 21026, 21256 and 21456 Tractors 1.96" ID x 2.50", SAE J200

1шт.

14

670053C1

ELBOW UNION

HOSE - air outlet, used with 915 combines

1шт.

REF # 14 If looking for hose that has different i.d. on each end. refer to drawing no# IZG6783 (db) 5/20/98.

1шт.

15

277738R1

NUT

- oil inlet tube

1шт.

16

670038C11

TUBE

- air outlet, used with 1026, 1256, 1456, 21026, 21256 and 21456 tractors

1шт.

16

670619C11

TUBE - air outlet, used with 915 combines

1шт.

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces bolt 179858) Hex, 7/16"-14 x 1", G5, Full Thd

2шт.

110405

WASHER - lock, 7/16 inch, light spring

2шт.

17

369497R3

GASKET

- air outlet tube flange

1шт.

18

607286C11

ELBOW ASSEMBLY - air intake, Includes: Ref. 18A

1шт.

18a

221-841

PLUG

- hex socket, 1/4 inch PT, not illustrated

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

(Replaces screw 186282) Hex, 3/8"-16 x 3 1/4", G5

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

19

327755R1

GASKET

- air intake elbow

1шт.

20

343750R91

CONNECTOR - oil drain hose

1шт.

21

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Adj - Oil drain hose (Replaces clamps 122316R91 and 995218R1) #12, 0.69/1.25 Type F Worm

2шт.

22

336681R1

HOSE

- oil drain, 2-1/4 inch (5.75 mm) long, cut from bulk hose 364360C1 below

1шт.

364360C1

HOSE

- bulk, 3/4 (19) ID x 600 inch (15240 mm) long

1шт.

23

670037C11

TUBE,20, 8" Length

- oil drain

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

24

341464R1

GASKET

- oil drain tube flange

1шт.

25

615710C1

SEAL

- turbocharger exhaust sleeve

1шт.

26

670063C11

ADAPTER

ASSEMBLY - turbocharger, Includes: Ref. 26A

1шт.

26a

291140

FLEXIBLE HOSE,0.62" OD, 57, 3.38" Length

STUD - adapter, not illustrated

2шт.

63115D

WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk

NUT - includes washer (Replaces nut 619471C1)

2шт.

114-216

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- hex, 3/8 NF x 2 inch (Replaces screw 181379)

6шт.

114-204

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

Hex, 3/8-24 x 1 3/4", G5 (Replaces screw 181377)

2шт.

27

670088C1

ADAPTER

- turbocharger exhaust elbow

1шт.

304391R2

GASKET

- turbo charger adapter

1шт.

12215D

STUD

- turbocharger adapter

2шт.
