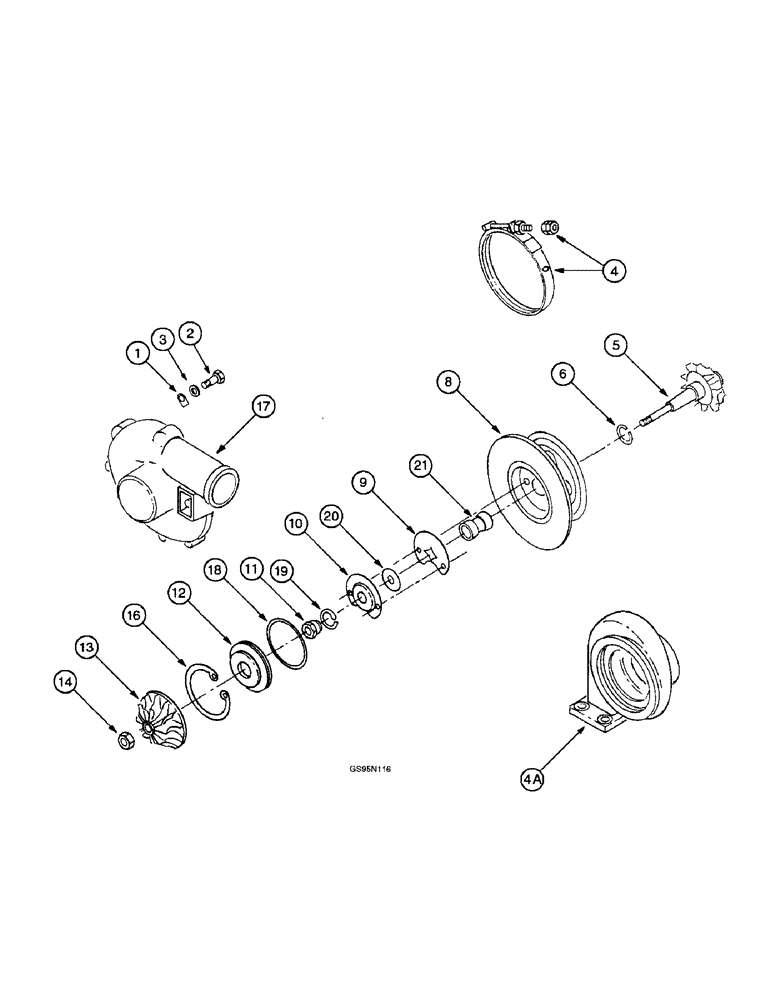

Запчасти Case IH DT-407 (7-58) - TURBOCHARGER, 1026, 1256, 1456, 21026, 21256, 21456 TRACTORS & 915 COMBINES

702277C91

SUPERCHARGER

TURBOCHARGER ASSEMBLY - engine, new, Includes: Ref. 1 - 21

1шт.

749305C91

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, remanufactured component parts do not apply to the remanufactured assembly

1шт.

1928231C1

CORE-TURBOCHARGER

RETURN NUMBER - use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

1

619474C1

LOCK ASSY

CLAMP - tab type

4шт.

2

625744C1

BOLT (SPREADER)

BOLT - includes washer (Replaces bolt 615811C1)

8шт.

3

900107C1

WASHER - lock, 1/4 inch

8шт.

4

A49855

CLAMP

ASSEMBLY - v-band (Replaces clamp 702384C91)

1шт.

313163R1

NUT

- lock, 1/4 inch, used with clamp assembly 702384C91

1шт.

4a

615812C1

HOUSING

- turbine

1шт.

702385C91

TURBOCHARGER

CENTER SECTION - turbocharger, Includes: Ref. 5 - 21

1шт.

627908C91

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER

1шт.

1928233C1

CORE-TURBOCHARGER

Return Number

1шт.

5

702386C1

SHAFT - turbine

1шт.

6

615819C1

RING, PISTON

RING - turbine piston

1шт.

8

702387C1

HOUSING

- bearing

1шт.

9

615818C1

PLATE

- thrust

1шт.

10

615816C1

DEFLECTOR

- oil

1шт.

11

615815C1

SLEEVE

- spacer

1шт.

12

615333C1

INSERT

- slinger plate

1шт.

13

615813C1

WHEEL (STEERING)

WHEEL - compressor

1шт.

14

25737R1

LOCK NUT,5/16"-24, GB

NUT - wheel lock (Replaces nut 615814C1)

1шт.

16

615332C1

RING

- insert snap

1шт.

17

615810C1

COVER - compressor

1шт.

18

687132C1

GASKET

O-RING - insert (Replaces O-ring 615334C1)

1шт.

19

313156R1

RING

- sleeve piston

1шт.

20

615817C1

RING

- thrust

1шт.

21

615820C1

BEARING ASSY

- housing

1шт.
