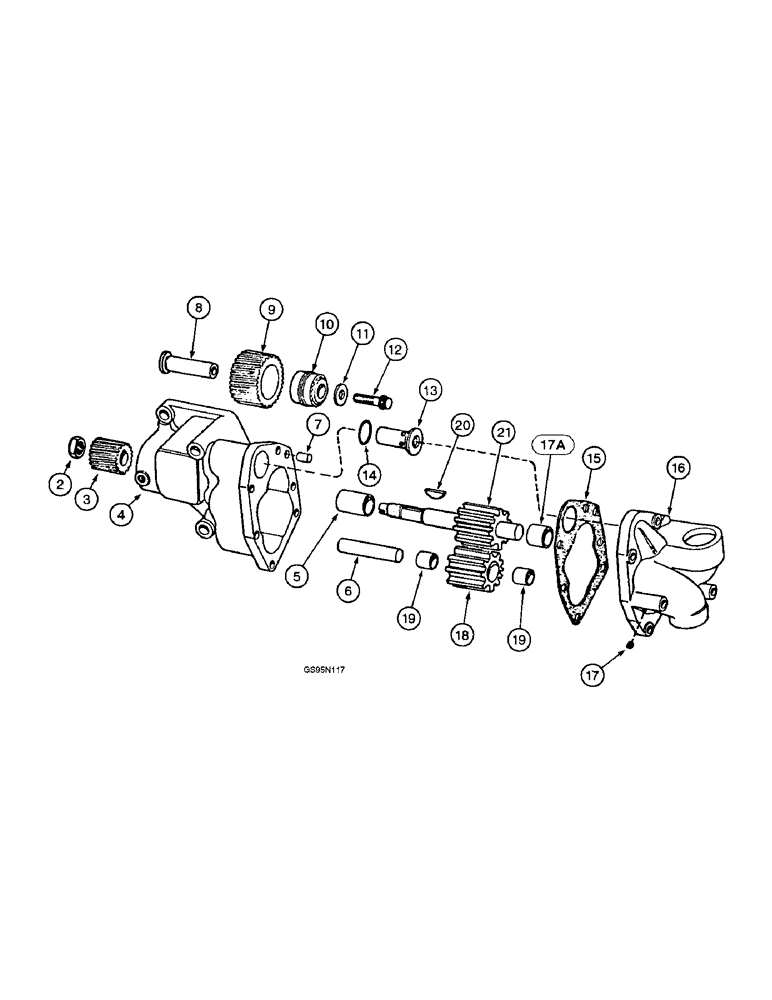

Запчасти Case IH DT-407 (7-50) - LUBRICATING OIL PUMP

332520R94

PUMP

PUMP ASSEMBLY - lubricating oil, new, DT-407 engines, used with 856 tractors and 815 combines, Includes: Ref. 1 - 21

1шт.

735248C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - lubricating oil, remanufactured (North America only), DT-407 engines, component parts do not apply to the remanufactured assembly

1шт.

1928217C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

601243C92

PUMP, ENGINE OIL

PUMP ASSEMBLY - lubricating oil, new, D-407 engines, used with 1026, 1256, 1456 tractors and 915 combines, Includes: Ref. 1 - 21

1шт.

735247C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - lubricating oil, remanufacured (North America only), D-407 engines, component parts do not apply to the remanufactured assembly

1шт.

1928215C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

1

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, (Replaces bolt 179840), Not Illustrated Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

1a

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

BOLT, (Replaces screw 186283), Not illustrated Hex, 3/8"-16 x 3 1/2", G5

2шт.

1b

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321), Not illustrated 3/8"

4шт.

2

18536R1

LOCK NUT,5/8"-18, G5

NUT - hex, 5/8 inch NF (Replaces nut 19263R1)

1шт.

3

332523R1

SPARE PART GEAR - oil pump drive

1шт.

4

332521R11

SPARE PART BODY ASSEMBLY - oil pump, Includes: Ref. 5 - 7

1шт.

5

345291R1

BUSHING

BUSHING - drive shaft, body end

1шт.

6

332524R1

SHAFT

SHAFT - idler gear

1шт.

7

37-148

DOWEL,1/4" x 1/2"

PIN - dowel, 3/8 x 3/4 inch, hardened (Replaces pin 19841R1)

1шт.

8

332528R1

SHAFT

SHAFT - oil pump drive idler

1шт.

9

332529R1

PINION

GEAR - oil pump drive idler

1шт.

10

347299R91

BEARING ASSY

BEARING - oil pump drive idler

1шт.

11

332530R1

WASHER

WASHER - shaft

1шт.

12

166-546

12 PT SCREW,Flg, 3/8" - 24 x 1 1/4", Gr 8

BOLT - hex, 3/8 NC x 1-1/4 inch (Replaces bolt 338774R2)

1шт.

13

345161R91

VALVE

VALVE - relief, used with pump assembly 332520R94

1шт.

13

601135C91

VALVE

VALVE - relief, used with pump assembly 601243C92

1шт.

14

349055R2

RING

O-RING - relief valve, 13/16 x 1 x 3/32

1шт.

15

601381C1

GASKET

GASKET - oil pump

1шт.

16

332527R21

COVER ASSY

COVER ASSEMBLY - oil pump, Includes: Ref. 17 & 17A

1шт.

332527R21R

REMAN-HOUSING

REMANUFACTURED HOUSING - NA Only

1шт.

332527R21C

CORE-HOUSING

Return Number, HOUSING - NA Only

1шт.

17

9409954

PLUG,Hex Soc, 1/16"-27

PLUG - pipe, hex, 1/16 inch

1шт.

17a

345292R1

BEARING

BUSHING - drive shaft, cover end

1шт.

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, (Replaces screw 179819) Hex, 5/16"-18 x 1 1/8", G5, Full Thd

3шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT - hex, 5/16 NC x 2-1/2 inch (Replaces screw 179828)

1шт.

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

BOLT - hex, 5/16 NC x 3-1/2 inch (Replaces bolt 186270)

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Hex, 5/16"-18 x 3", G5

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

6шт.

18

326767R21

PINION

GEAR ASSEMBLY - oil pump idler, Includes: Ref. 19

1шт.

19

326768R1

BUSHING

BUSHING - idler gear

2шт.

20

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, (Replaces key 124545) #5, 1/8" x 5/8", HT

1шт.

21

332522R12

SHAFT

SHAFT - oil pump drive, includes gear

1шт.
