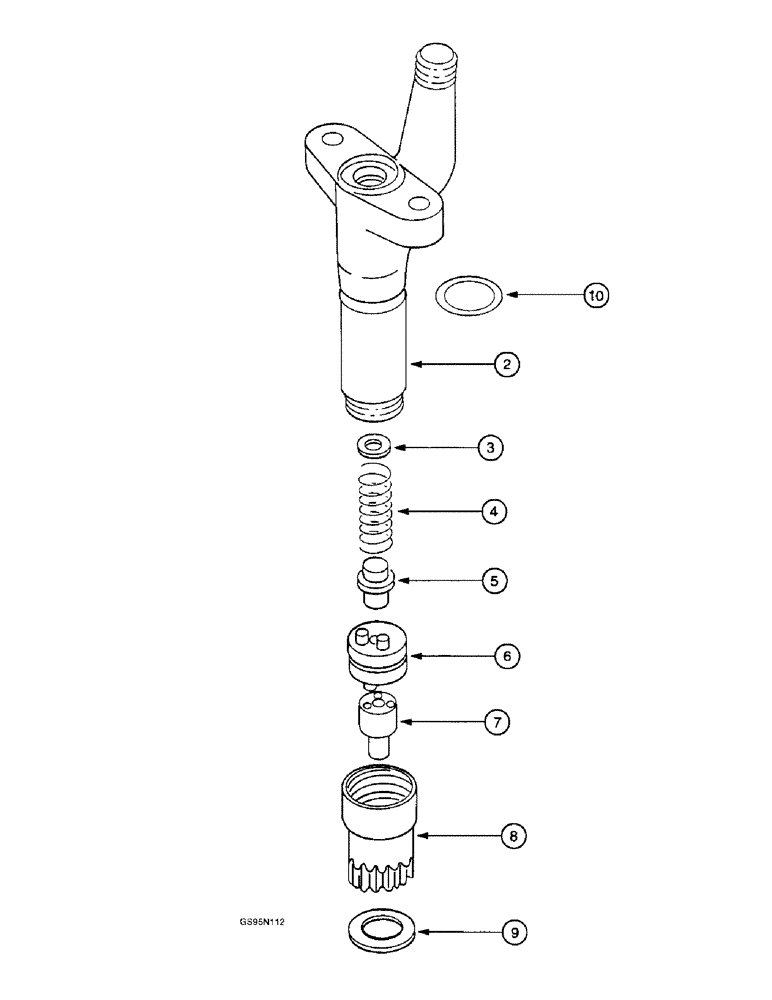

Запчасти Case IH DT-407 (7-42) - NOZZLE AND HOLDER

749082C91

REMAN-INJECT NOZZLE

REMAN-INJECTION NOZZLE NOZZLE ASSEMBLY - fuel injection, remanufactured for nozzle assembly 610715C91 (North America only), component parts do not apply to the remanufactured assembly, no longer available

6шт.

1934159C1

CORE-NOZZLE, INJECT

CORE-INJECTION NOZZLE RETURN NUMBER - use this part number to return nozzles for credit when using a remanufactured assembly

6шт.

610715C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, new, used with 1256 and 21256 tractors with engine serial numbers prior to 6663, no longer available, Includes: Ref. 2 - 8

6шт.

749089C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, remanufactured for nozzle assembly 702541C91 (North America only), component parts do not apply to the remanufactured assembly, no longer available

6шт.

1934165C1

CORE-NOZZLE, INJECT

CORE-INJECTION NOZZLE RETURN NUMBER - use this part number to return nozzles for credit when using a remanufactured assembly

6шт.

702541C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, new, used with 1256 and 21256 tractors with engine serial number 6663 and after, 1026, 1256, 1456, 21026, 21256, 21456 tractors and 915 combines, no longer available, Includes: Ref. 2 - 8

6шт.

749085C91

REMAN-INJECT NOZZLE

REMAN-INJECTION NOZZLE NOZZLE ASSEMBLY - fuel injection, remanufactured for nozzle assembly 610718C91 (North America only), component parts do not apply to the remanufactured assembly

6шт.

1934163C1

CORE-NOZZLE, INJECT

CORE-INJECTION NOZZLE RETURN NUMBER - use this part number to return nozzles for credit when using a remanufactured assembly

6шт.

610718C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, new, used with 856, 2856 tractors and 815 combines, Includes: Ref. 2 - 8

6шт.

2

NSS

NOT SOLD SEPARAT

BODY - holder, order holder assembly

1шт.

3

615109C2

SHIM

SHIM - 0.077 inch

1шт.

3

615110C2

SHIM

SHIM - 0.075 inch

1шт.

3

615111C2

SHIM

SHIM - 0.073 inch

1шт.

3

615112C2

SHIM

SHIM - 0.071 inch

1шт.

3

615113C2

SHIM

SHIM - 0.069 inch

1шт.

3

615114C2

SHIM

SHIM - 0.067 inch

1шт.

3

615115C2

SHIM

SHIM - 0.065 inch

1шт.

3

615116C2

SHIM

SHIM - 0.062 inch

1шт.

3

615117C2

SHIM

SHIM - 0.061 inch

1шт.

3

615118C2

SHIM

SHIM - 0.059 inch

1шт.

3

615119C2

SHIM

SHIM - 0.057 inch

1шт.

3

615120C2

SHIM

SHIM - 0.055 inch

1шт.

3

615121C2

SHIM

SHIM - 0.053 inch

1шт.

3

615122C2

SHIM

SHIM - 0.051 inch

1шт.

3

615123C2

SHIM

SHIM - 0.049 inch

1шт.

3

615124C2

SHIM

SHIM - 0.047 inch

1шт.

3

615125C2

SHIM

SHIM - 0.045 inch

1шт.

3

615126C2

SHIM

SHIM - 0.043 inch

1шт.

3

615127C2

SHIM

SHIM - 0.041 inch

1шт.

3

615128C2

SHIM

SHIM - 0.039 inch

1шт.

4

615105C1

VALVE SPRING

SPRING - nozzle

1шт.

5

615106C1

SEAT

SEAT - spring lower

1шт.

6

615107C1

PLATE

PLATE - intermediate

1шт.

7

606400C91

JET

NOZZLE - used with nozzle assembly 610715C91

1шт.

7

702746C1

JET

NOZZLE - used with nozzle assembly 702541C91

1шт.

7

673175C1

NOZZLE INJECTION

NOZZLE - used with nozzle assembly 610718C91

1шт.

8

615108C1

NUT

NUT - nozzle cap

1шт.

9

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

GASKET - nozzle

6шт.

10

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

O-RING, (Replaces O-ring 364879R1) -118, 70 Duro, .862" ID x .103" Thk

6шт.
