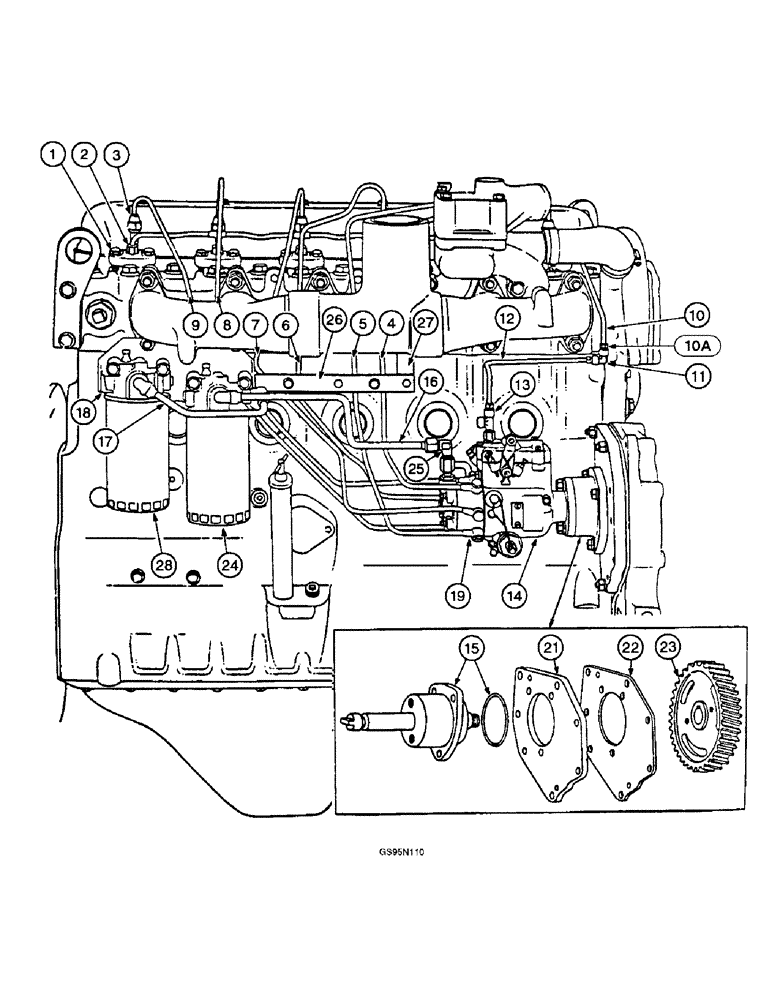

Запчасти Case IH DT-407 (7-38) - FUEL INJECTION PUMP AND CONNECTIONS, 856, 2856 TRACTORS AND 815 COMBINES

1

610718C91

NOZZLE INJECTION

NOZZLE AND HOLDER ASSEMBLY - injection, Bosch, parts list Figure 7-42

6шт.

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

GASKET - nozzle

6шт.

113-2228

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

- hex, 3/8 NC x 1-5/8 inch (Replaces screw 179844)

12шт.

2

336980R1

NUT

- leakoff manifold sleeve

6шт.

222-102

SLEEVE,1/4" Tube

(Replaces sleeve 915500R1) 1/4" Tube

3шт.

3

250617R1

NUT

- injection pipe

6шт.

250610R2

GUARD

SLEEVE - injection pipe

6шт.

4

701228C2

INJECTION PIPE

PIPE - injection no. 1

1шт.

5

701229C2

PIPE CLAMP

PIPE - injection no. 2

1шт.

6

701230C1

PIPE CLAMP

PIPE - injection no. 3

1шт.

7

701231C1

PIPE CLAMP

PIPE - injection no. 4

1шт.

8

701232C1

TUBE

PIPE - injection no. 5

1шт.

9

701233C2

PIPE CLAMP

PIPE - injection no. 6

1шт.

10

612222C11

TUBE

MANIFOLD ASSEMBLY - fuel return, Includes: Ref. 10A & 10B

1шт.

10a

87017024

TUBE NUT,1/2"-24

NUT - fuel return, hex, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1)

1шт.

10b

222-102

SLEEVE,1/4" Tube

(Replaces sleeve 915500R1), Not illustrated 1/4" Tube

1шт.

11

615369C1

UNION

ELBOW - tube union

1шт.

12

612223C11

TUBE

ASSEMBLY - leakoff return, lower, Includes: Ref. 12A & 12B

1шт.

12a

222-102

SLEEVE,1/4" Tube

(Replaces sleeve 915500R1), Not illustrated 1/4" Tube

2шт.

12b

87017024

TUBE NUT,1/2"-24

NUT - leakoff return, 1/4 tube OD x 1/2-24 inch (Replaces nut 915499R1), not illustrated

2шт.

13

615370C1

TEE

- injection pump inlet

1шт.

14

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figure 7-24

1шт.

15

REF

INSTRUCTION

DRIVE - fuel injection pump, see Figure 7-44

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

16

670028C11

TUBE

ASSEMBLY - pump to final filter, no longer available

1шт.

16

612273C11

TUBE

ASSEMBLY - pump to final filter, used without recirculation system, no longer available

1шт.

17

612272C11

TUBE

ASSEMBLY - primary to final filter, Includes: Ref. 17A & 17B

1шт.

17a

222-104

SLEEVE,3/8" Tube

- tube, 3/8 inch OD (Replaces sleeve 265204R1), not illustrated

2шт.

17b

222-114

NUT,5/8"-24

NUT - hex, 3/8 inch OD x 5/8 inch (Replaces nut 265205R1), not illustrated

2шт.

18

701109C1

BRACKET - fuel filter, no longer available

1шт.

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF (Replaces nut 103028)

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

2шт.

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch (Replaces bolt 186285)

2шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

(Replaces 186289) Hex, 3/8"-16 x 5", G5

2шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

4шт.

21455R1

WASHER - filter, no longer used

2шт.

19

612180C1

GASKET

- fuel line connector

12шт.

21

328841R1

PLATE - injection pump mounting

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF (Replaces nut 103026)

2шт.

27588R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW - cap, 3/8 NC x 3/4 inch (Replaces screw 324235R1)

2шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Replaces screw 179850)

1шт.

328-656

BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 8

(Replaces screw 186310) Hex, 3/8"-24 x 3 1/2", G8

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

22

328842R1

GASKET

- injection pump mounting plate

1шт.

23

341525R1

PINION

GEAR - injection pump drive, 58 teeth

1шт.

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

(Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

19899R1

NUT

- gear hub lock

1шт.

341508R1

WASHER

- gear, no longer available

1шт.

24

702253C1

FILTER CARTRIDGE

FILTER - final fuel, see page 5-19

1шт.

25

222-4047

ELBOW

- 90 degree compression x 3/8 tube OD x 1/4 inch PT (Replaces elbow 606845C1)

1шт.

26

670011C21

BAND

CLAMP - injection pipe, outer, no longer available

1шт.

670010C2

PAD

- injection pipe clamp

2шт.

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

(Replaces 181317) Hex, 1/4"-28 x 1 1/4", G5

6шт.

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch (Replaces washer 103339)

6шт.

27

670009C11

CLAMP

- injection pipe, inner

1шт.

28

REF

INSTRUCTION

FILTER - primary fuel, see Figure 7-46

1шт.

701155C1

CLAMP

- injection pipe

4шт.

612180C1

GASKET

- fuel line connection

4шт.

258079C1

GROMMET

- injection pipe

4шт.
