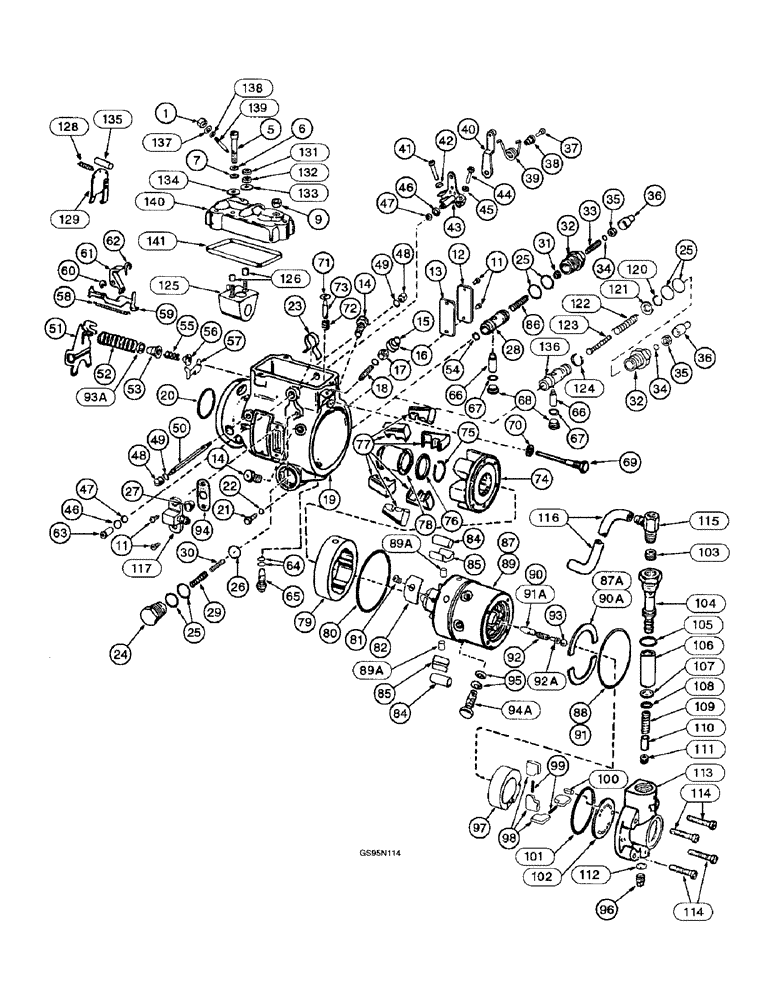

Запчасти Case IH DT-407 (7-24) - FUEL INJECTION PUMP

749726C91

PUMP

ASSEMBLY - fuel injection, remanufactured for 672083C92, used with 1456, 21456 tractors and 915 combines, no longer available

1шт.

749539C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured for 672709C92 (North America only), component parts do not apply to the remanufactured assembly

1шт.

1934039C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

672709C92

PUMP

ASSEMBLY - fuel injection, new, used with 1456, 21456 tractors and 915 combines, no longer available, order remanufactured assembly 749539C91, Includes: Ref. 1 - 141F

1шт.

749539C91

REMAN-INJECTION PUMP

Remanufactured PUMP - for N.A. Only

1шт.

749732C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured for 672711C92 (North America only), component parts do not apply to the remanufactured assembly

1шт.

For service replacement of injection pump 672711C91 and 672737C92, also order tube assembly 612273C11.

1шт.

749734C91

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - for N.A. Only

1шт.

1934041C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

672711C92

PUMP

ASSEMBLY - fuel injection, new, used with 856, 2856 tractors and 815 combines, no longer available, order remanufactured assembly 749732C91, Includes: Ref. 1 - 141F

1шт.

672711C92

PUMP

Remanufactured PUMP - for N.A. Only

1шт.

749540C91

REMAN-INJECTION PUMP

Remanufactured PUMP - for N.A. Only

1шт.

749733C91

PUMP ASSEMBLY - fuel injection, remanufactured for 672713C92, used with 815 combines, no longer available

1шт.

749541C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured for 672737C92 (North America only), component parts do not apply to the remanufactured assembly

1шт.

For service replacement of injection pump 672711C91 and 672737C92, also order tube assembly 612273C11.

1шт.

1934041C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

672737C92

PUMP ASSEMBLY - fuel injection, new, used with 1026 and 21206 tractors, Includes: Ref. 1 - 141F

1шт.

702477C92

PUMP ASSEMBLY - fuel injection, used with 1256 and 21256 tractors, Includes: Ref. 1 - 141F

1шт.

1

369009R1

NUT - low idle adjusting screw, used with cover 304744R1, no longer available

1шт.

5

319674R1

SCREW

- cover hold down, no longer available

3шт.

6

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No. 10, cover hold down screw

3шт.

7

319676R1

WASHER

- cover hold down screw

3шт.

9

610950C91

CONNECTOR, ELEC

CONNECTOR - return line, all pumps except 672709C92

1шт.

9

A47066

COUPLING

CONNNECTOR - return line, used with pump 672709C92

1шт.

11

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

- machine, slotted oval head, No. 8 x 5/16 inch, timing line cover and fitting

4шт.

12

304740R1

COVER ASSY

COVER - timing line, one used on pumps having recirculation system, two used on pumps not having recirculation system

1шт.

13

51200272

GASKET

- timing line cover, one used on pumps having recirculation system, two used on pumps not having recirculation system

1шт.

14

368810R1

SCREW - head locking

2шт.

15

313287R1

COVER ASSY

CAP - torque screw, not used with pump 672737C92

1шт.

16

321313R1

NUT

- torque screw, not used with pump 672737C92

1шт.

17

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Torque screw, Not used with pump 672737C92 (Replaces seal 352219R1)

1шт.

18

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - torque, not used with pump 672737C92

1шт.

19

702666C91

HOUSING

ASSEMBLY - pump, no longer available, Includes: Ref. 19A

1шт.

19a

619449C1

BUSHING

- housing, no longer available, not illustrated

2шт.

20

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pilot tube, 1-1/16 ID x 1/8 inch wide (Replaces seal 304720R1)

1шт.

21

20789R1

SCREW - machine, slotted oval head, 1/4 NF x 1/2 inch, torque screw hole plug, two used with pump 672737C92, no longer used

1шт.

22

324791R1

SEAL ASSY.

WASHER - torque screw hole plug, two used with pump 672737C92

1шт.

23

606415C1

STOP

- high idle screw, not used with pump 672711C92

1шт.

24

346715R1

PLUG - piston hole, spring side, no longer available

1шт.

25

319687R1

WIPER SEAL

- advance piston hole plug

4шт.

26

627885C1

RING

- advance piston, power, used with all pumps except 672709C92 (Replaces ring 346659R1)

1шт.

27

610955C1

SCREW

SCREEN - return oil, use with pumps having recirculation system

1шт.

28

625768C1

PISTON - advance, use with pump 702477C92

1шт.

28

625766C1

PISTON - advance, use with pump 672711C92

1шт.

29

625767C1

SPRING - outer advance, use with pump 672711C92

1шт.

29

613563C1

SPRING - outer advance, used with pump 702477C92, no longer available

1шт.

30

319694R1

VALVE SPRING

SPRING - inner advance, use with pumps 702477C92

1шт.

30

347252R1

SPRING

- inner advance, use with pump 672711C92

1шт.

30

627202C1

VALVE SPRING

SPRING - inner advance, use with pumps 672709C92 and 672737C92

1шт.

31

319692R1

GUIDE

- advance adjusting screw, use with pumps 672711C92 and 702477C92

1шт.

32

680208C1

PLUG

- piston hole, power side, use with pumps 672711C92 and 702477C92

1шт.

32

672884C1

PISTON ASSY.

PLUG - piston hole, power side, use with pumps 672709C92, 672711C92 and 672737C92, no longer available

1шт.

33

319691R1

CAPSCREW,1/4" x 1.385"

SCREW - advance adjusting, use with pumps 672711C92 and 702477C92

1шт.

34

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw

1шт.

35

321313R1

NUT

- advance adjusting screw lock

1шт.

36

313287R1

COVER ASSY

CAP - advance adjusting screw

1шт.

37

217921

SCREW - throttle lever spring, no longer available

1шт.

38

G49621

RETAINER

- throttle lever spring (Replaces retainer 304743R1)

1шт.

39

G48505

SPRING

- throttle lever (Replaces spring 304739R1)

1шт.

40

346702R91

LEVER

- throttle

1шт.

41

627588C1

SCREW - control lever stop, no longer used

1шт.

42

51200274

NUT

- control lever stop screw (Replaces nut 368009R1)

1шт.

43

691471C1

SHAFT

- throttle (Replaces shaft 702393C1)

1шт.

44

627588C1

SCREW - control lever stop, use with pumps 672709C92 and 672737C92, no longer used

2шт.

44

368008R1

SCREW,Drilled Sl Hex, #10 - 32 x 1.53"

- low idle adjusting, use with pumps 672711C92 and 702477C92

1шт.

45

51200274

NUT

- low idle adjusting screw (Replaces nut 368009R1)

1шт.

46

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

47

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Throttle shaft

2шт.

48

368018R1

NUT

- pivot shaft retainer

2шт.

49

304721R1

SEAL

- pivot shaft

2шт.

50

368016R1

SHAFT

- governor arm pivot

1шт.

51

321367R1

ARM

- governor

1шт.

52

615987C1

SPRING

- governor control (Replaces spring 319738R1)

1шт.

53

368015R1

RETAINER - idling spring

1шт.

54

372618R1

SHIM

- advance spring, 0.033, for use with pumps 672711C92 and 702477C92

1шт.

54

368575R1

SHIM

- advance spring, 0.005, for use with pumps 672711C92 and 702477C92

1шт.

54

372617R1

SHIM - advance spring, 0.016, for use with pumps 672711C92 and 702477C92

1шт.

55

304810R1

SPRING

- governor idling, no longer available

1шт.

56

367998R1

GUIDE

- idling spring

1шт.

57

324188R91

ARM

- metering valve

1шт.

58

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

59

702350C1

LINKAGE

HOOK - governor linkage

1шт.

60

368023R1

CAM

- shut-off shaft stop, used with all pumps except 672709C92, no longer available

1шт.

61

304794R1

LEVER

- throttle shaft

1шт.

62

313690R1

LOCK ASSY

CLIP - shut-off, one used with pumps 672709C92, 672711C92 and 702477C92, two used with pumps 672711C92 and 672737C92

1шт.

63

691472C1

SHAFT - shut-off (Replaces shaft 615828C1)

1шт.

64

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

2шт.

65

1802905C1

SCREW

- head locating, for use with pumps 672709C92 and 672711C92 (Replaces screws 346721R91 and 627207C1)

1шт.

66

346723R1

DOWEL

PIN - cam advance

1шт.

67

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

68

1805552C1

PLUG

- advance screw hole

1шт.

69

313677R1

STUD

- governor idle spring

1шт.

70

368014R1

WASHER

- guide stud

1шт.

71

313286R1

WASHER

SHIM - metering valve spring

1шт.

72

304746R1

VALVE SPRING

SPRING - metering valve

1шт.

73

630224C1

PUSH BUTTON

VALVE - metering

1шт.

74

627946C91

RETAINER

- governor weight, used with all pumps except 672709C92

1шт.

74

702589C91

NOZZLE HOLDER

RETAINER - governor weight, for use with pump 672709C92

1шт.

75

100-1193

SNAP RING,#93, Ext

Ring, Snap, , governor gauge, used with all pumps except 672709C92 (Replaces ring 368345R1) #93, Ext

1шт.

75

346732R1

RING, SNAP,#100, Ext

governor gauge, for use with pump 672709C92, no longer available #100, Ext

1шт.

76

368342R1

THRUST WASHER

- governor sleeve thrust

1шт.

77

319669R1

WEIGHT

- governor

6шт.

78

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

79

610922C2

RING

- cam (Replaces ring 610922C1)

1шт.

80

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

81

368806R1

SCREW - leaf spring adjusting, all pumps except 672709C92

1шт.

81

346719R1

CAPSCREW

SCREW - leaf spring adjusting, used with pump 672709C92

1шт.

82

304797R1

VALVE SPRING

SPRING - plunger limiting leaf, used with all pumps except 672709C92 (Replaces spring 613559C1)

1шт.

82

346718R1

VALVE SPRING

SPRING - plunger limiting leaf, for use with pump 672709C92

1шт.

84

368805R1

ROLLER

- plunger cam, two used with all pumps except 672709C92, four used with pump 672709C92

1шт.

85

368804R1

SHOE (ASSY)

SHOE - cam roller, used with all pumps except 672709C92

1шт.

85

346713R1

SHOE - cam roller, for use with pump 672709C92

1шт.

86

319683R1

SPRING

- advance timer, use with pumps 672711C92 and 702477C92

1шт.

625956C91

HEAD (CYLINDER)

HEAD AND ROTOR ASSEMBLY - hydraulic, use with pump 672709C92, Includes: Ref. 87 - 88

1шт.

87

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head and rotor assembly 625956C91

1шт.

NSS

NOT SOLD SEPARAT

SPRING - hydraulic, order head and rotor assembly 625956C91

1шт.

NSS

NOT SOLD SEPARAT

SCREW - hydraulic, order head and rotor assembly 625956C91

1шт.

87a

304800R1

WASHER

RING - retaining

2шт.

88

304801R1

RING

- retaining

1шт.

625385C91

ROTOR

HEAD AND ROTOR ASSEMBLY - hydraulic, used with all pumps except 672709C92 (Replaces head assembly 702479C91), Includes: Ref. 89 - 91

1шт.

89

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head and rotor assembly 625385C91

1шт.

89a

NSS

NOT SOLD SEPARAT

PLUNGER - rotor, order head and rotor assembly 625385C91

1шт.

NSS

NOT SOLD SEPARAT

ROTOR - order head and rotor assembly 625385C91

1шт.

90

619080C1

LOCK VALVE

VALVE - delivery, used with pump 702477C92 with serial number 6663 and after and pump 672737C92, no longer available

1шт.

90

619081C1

LOCK VALVE

VALVE - delivery, no longer available

1шт.

619082C1

SPRING - delivery valve

1шт.

90a

304800R1

WASHER

RING - retaining

2шт.

91

304801R1

RING

- retaining

1шт.

91a

346775R1

LOCK VALVE

VALVE - delivery, pump 702477C92 with serial numbers, Serial Range: prior-6663

1шт.

91a

606141C1

LOCK VALVE

VALVE - delivery, used with pumps 672709C92 and 672711C92

1шт.

92

606144C1

VALVE SPRING

SPRING - delivery valve

1шт.

92a

606145C1

LOCK ASSY

STOP - delivery valve

1шт.

93

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - delivery valve retaining

1шт.

93a

324950R1

SPACER

- governor spring, .200, used with pumps 672711C92 and 702477C92, no longer available (Replaces spacer 338891R1)

1шт.

94

610953C1

GASKET

- timing and return fitting, used with pumps having recirculation system

1шт.

94a

609050C1

SCREW

- fuel line connector

6шт.

95

612180C1

GASKET

- fuel line connector

12шт.

96

615695C1

PLUG

- end plate pipe

1шт.

97

304745R1

GUIDE

LINER - transfer pump

1шт.

98

619761C1

BLADE

- transfer pump

4шт.

99

346724R1

SPRING

- transfer pump blade

2шт.

100

368812R1

DOWEL

PIN - end plate

1шт.

101

367982R1

O-RING,0.154" Width

SEAL - transfer pump, no longer available

1шт.

102

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

103

346705R91

PLUG

- end plate adjusting

1шт.

104

1808814C1

SPOOL

SLEEVE - end plate

1шт.

If you order 1808814C1, you do not need the 615142C1 seal any longer.

1шт.

105

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, End plate sleeve

1шт.

106

A43870

FILTER, FUEL

ELEMENT - filter (Replaces element 346708R1)

1шт.

107

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

108

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Sleeve seal

1шт.

109

A43867

SPRING

- regulating (Replaces spring 346707R1)

1шт.

110

367988R1

PLUNGER

PISTON - regulating

1шт.

111

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1, item 104

1шт.

If you order 1808814C1, you do not need the 615142C1 seal any longer.

1шт.

112

340214R1

SEAL

- end plate plug

1шт.

113

346704R1

PLATE ASSY.

PLATE - end

1шт.

615489C1

LOCK ASSY

STRAP - end plate

2шт.

114

615491C1

SCREW

- end plate

4шт.

615733C1

CLIP

- screw retaining

4шт.

115

610954C91

FITTING - inlet, used with pumps having recirculation system, no longer available

1шт.

116

610952C91

HOSE - fuel return by-pass, pumps having recirculation system, no longer available

1шт.

117

610951C91

FITTING

- timing and return, pumps having recirculation system

1шт.

120

100-2150

SNAP RING,0.50", Int, #50

Ring, Snap, , Used with pumps 672709C92, 672711C92 and 672737C92 (Replaces ring 264038R1) 0.50", Int, #50

1шт.

121

627204C1

WASHER - advance spring, used with pumps 672709C92, 672711C92 and 672737C92, no longer available

1шт.

122

313678R1

SPRING

- advance timer, used with pumps 672709C92, 672711C92 and 672737C92

1шт.

123

627206C1

SCREW - advance adjustable, used with pumps 6727009C92, 672711C92 and 672737C92

1шт.

124

346726R1

SEAL

- advance piston ring, used with pumps 672709C92, 672711C92 and 672737C92

1шт.

627313C91

SOLENOID

COVER AND SOLENOID ASSEMBLY - electric shut off, used with pumps 672083C92 and 672713C92, Includes: Ref. 125 - 141

1шт.

125

691360C91

SWITCH

FRAME ASSEMBLY - shut down coil and solenoid, used with cover 308614R1, Includes: Ref. 126 - 135

1шт.

126

1807718C1

TUBE

- cover insulating, used with cover 308614R1 (Replaces tube 308619R1)

1шт.

128

308616R1

VALVE SPRING

SPRING - shut down coil arm, used with cover 308614R1, no longer available

1шт.

129

308615R91

LEVER

ARM - shut down, used with cover 308614R1

1шт.

131

321314R3

NUT

- terminal contact lock, used with cover 308614R1, no longer available

2шт.

132

308618R1

NUT - contact screw retaining, used with cover 308614R1

2шт.

133

308617R1

WASHER - insulating, used with cover 308614R1

2шт.

134

24525R1

WASHER - contact screw retaining nut, used with cover 308614R1

2шт.

135

606103C1

SLEEVE - shut down coil arm spring, used with cover 308614R1

1шт.

136

627201C1

PISTON - advance, for use with pumps 672709C92 and 672711C92

1шт.

137

304728R1

WASHER

- low idle adjusting screw, used with cover 304744R1

1шт.

137

118676

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

- low idle hole plug, used with cover 308614R1

1шт.

138

304721R1

SEAL

- low idle adjusting screw

1шт.

139

304788R1

SET SCREW

- low idle adjusting, used with cover 304744R1

1шт.

139

217920

COVER

SCREW - low idle hole plug, use with cover 308614R1, no longer available

1шт.

140

304744R1

COVER ASSY

COVER - governor control, used with all pump assemblies except 628083C92 and 672713C92

1шт.

140

308614R1

COVER - governor control, used with pump assemblies 672083C92 and 672713C92

1шт.

141

368012R1

SEAL

RING - seal, governor control cover

1шт.

141a

606491C1

PLATE ASSY.

PLATE - name, not illustrated

1шт.

141b

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

- name plate, drive, round head, No. 10 x 1/8 inch, not illustrated

2шт.

141c

1806929C91

GASKET KIT

- overhaul gasket, used with pumps 672711C92 and 702477C92 (Replaces kit 347784R91), not illustrated

1шт.

141d

1806931C91

GASKET KIT

- overhaul gasket, used with all pumps except 672711C92 and 702477C92 (Replaces kit 603940C92), not illustrated

1шт.

141e

678026C1

ELECTRICAL WIRE

WIRE - lock, injection pump, not illustrated

2шт.

141f

687459C1

ELECTRICAL WIRE

SEAL - lock, injection pump seal wire, not illustrated

2шт.
