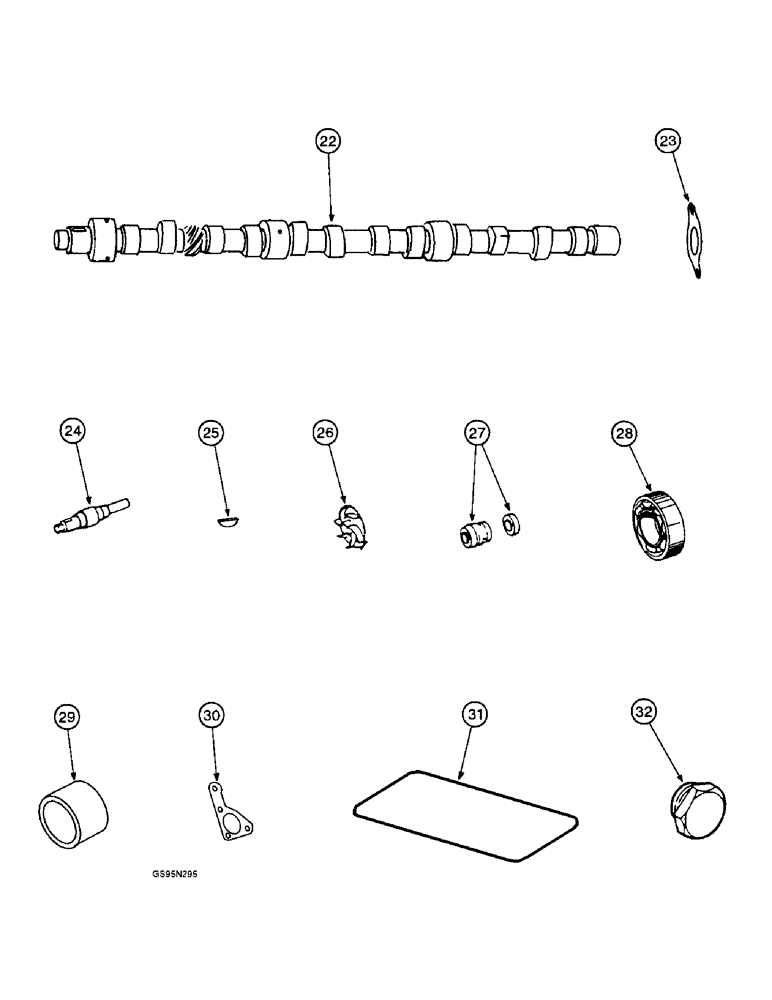

Запчасти Case IH DT-407 (7-22) - SERVICE KITS

678001C92

PACKAGE

KIT - crankcase service, no longer available, order components, Includes: Parts Listed Below & on Figure 7-20

1шт.

328777R91

BEARING SET

BEARING - crankshaft rear

1шт.

670324C93

PACKAGE

KIT - crankcase gasket

1шт.

670325C94

PACKAGE

KIT - cylinder head

1шт.

606780C93

PACKAGE

KIT - oil seal and wear sleeve service

1шт.

701067C91

CAMSHAFT

KIT - camshaft, no longer available, order components, Includes: Ref. 22 & 23

1шт.

22

670349C1

CAMSHAFT

- engine

1шт.

23

16027DB

WASHER

FLANGE - camshaft thrust

1шт.

609459C93

PACKAGE

KIT - water pump service, no longer available as a kit, order components, Includes: Parts Listed Below

1шт.

24

345081R1

SHAFT

- water pump

1шт.

25

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

(Replaces key 124549) #9, 3/16" x 3/4", HT

1шт.

26

332311R1

IMPELLER

- water pump

1шт.

27

687161C92

KIT

- water pump seal

1шт.

610051C91

SEAL

- oil, water pump, rear

1шт.

333794R91

SEAL

- oil, water pump, front

1шт.

L31005

BALL BEARING

- rear (Replaces bearing ST441)

1шт.

28

ST715

BEARING

- front

1шт.

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, (Replaces 456736R1) 2.062", Int, #206

1шт.

29

326721R1

SPACER

- water pump

1шт.

30

328892R1

GASKET

- water pump

1шт.

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

Water pump body (Replaces O-ring 285253R1) -254, 70 Duro, 5.484" ID x .139" Thk

1шт.

19687R1

LOCK NUT,7/8"-14

NUT - pulley (Replaces nut 18501R1)

1шт.

345082R91

KIT - water pump shaft service, no longer available, order components, Includes: Shaft & Nut Listed Below

1шт.

345081R1

SHAFT

- water pump

1шт.

19687R1

LOCK NUT,7/8"-14

NUT - hex, 7/8 inch NF (Replaces nut 18501R1)

1шт.

1806929C91

GASKET KIT

- fuel injection pump overhaul gasket (Replaces kit 347784R91), Includes: Parts Listed Below

1шт.

NLS

NO LONGER SERVICED

- timing cover (Replaces gasket 367979R1)

2шт.

31

368012R1

SEAL

RING - seal, governor control cover

1шт.

32

615695C1

PLUG

- end plate pipe, also order seal 340214R1 below (Replaces plug 346712R1)

1шт.

32a

340214R1

SEAL

- end plate plug, not shown

1шт.

603936C1

PLUG

- end plate

1шт.

615768C1

CLIP

RING - flexible retaining

1шт.

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pilot tube oil, 1-1/16 ID x 1/8 inch wide (Replaces seal 304720R1)

1шт.

304721R1

SEAL

- pivot shaft

3шт.

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

2шт.

319687R1

WIPER SEAL

- piston hole plug

4шт.

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

346706R1

SEAL - regulating piston, order sleeve 1808814C1

1шт.

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw

5шт.

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

4шт.

367982R1

O-RING,0.154" Width

SEAL - transfer pump, no longer available

1шт.

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, End plate sleeve (Replaces seals 368030R1 and 371544R1)

2шт.

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1

1шт.

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

367984R1

SEALING WASHER

WASHER - fuel line connector screw

12шт.

368014R1

WASHER

- guide stud

1шт.
