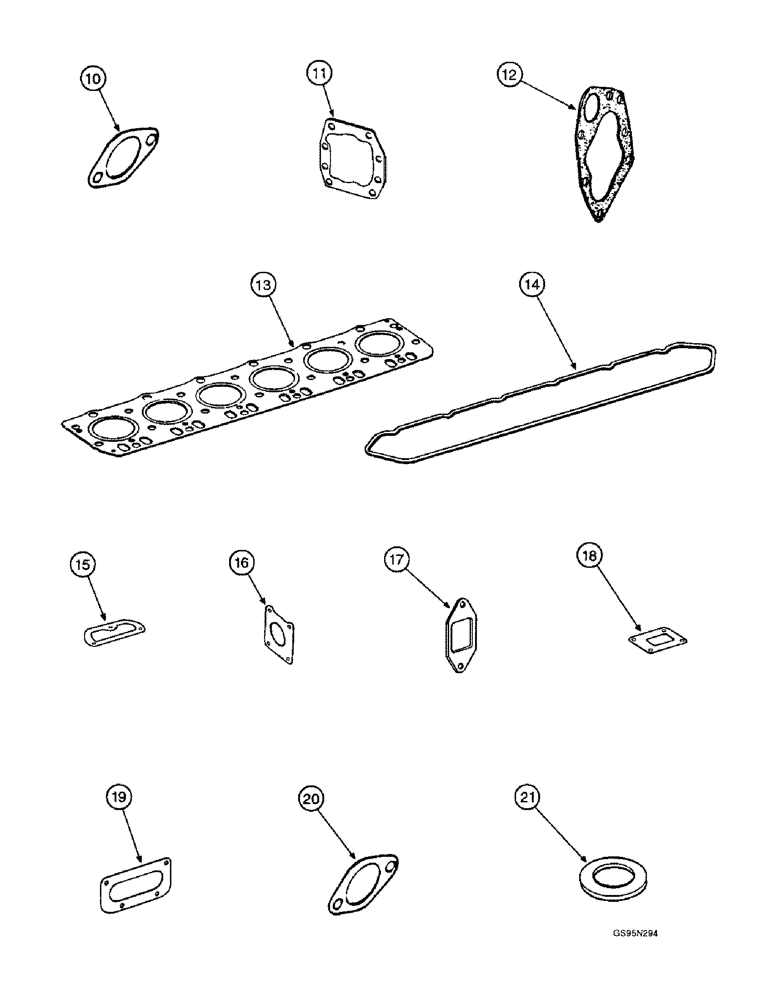

Запчасти Case IH DT-407 (7-20) - SERVICE KITS

670324C93

PACKAGE

KIT - crankcase gasket, continued, Includes: Parts Listed Below & on Figure 7 -12, 14 -18

1шт.

Does Not Incl Ref 13

1шт.

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

- idler shaft, 1-3/4 ID x 1/8 inch wide

1шт.

18556R1

LOCK PIN,1/4" x 3/4", Slotted

O-RING - drive gear (Replaces O-ring 257735R1)

1шт.

382842R1

SCREW,Shldr, Hex, 5/16" - 18 x 0.65", W/ Nylon Pellet

GASKET - injection pump plate

1шт.

346895R1

WIPER SEAL

O-RING - injection pump

1шт.

612180C1

GASKET

- fuel line connector

12шт.

382781R1

O-RING,1.737" ID x 0.103" Width

- tachometer drive (Replaces O-ring 302506R1)

1шт.

343396R2

SEALING RING

O-RING - case to pump tube

2шт.

332544R1

GASKET

- crankcase oil outlet

1шт.

343398R2

RING

O-RING - pump to cooler tube

2шт.

343398R2

RING

O-RING - filter header to cooler header

1шт.

332536R1

GASKET

- oil pump mounting

1шт.

345247R1

GASKET

- cooler header

1шт.

10

332549R1

GASKET

- oil pump inlet

1шт.

10

332566R1

GASKET

- flange

1шт.

332555R1

GASKET

- oil cooler flange

2шт.

343398R2

RING

O-RING - cooler to filter tube

1шт.

11

332536R1

GASKET

- oil pump mounting

1шт.

345247R1

GASKET

- cooler header

1шт.

332549R1

GASKET

- oil pump inlet

1шт.

332566R1

GASKET

- flange

1шт.

332555R1

GASKET

- oil cooler flange

2шт.

343398R2

RING

O-RING - cooler to filter tube

2шт.

343396R2

SEALING RING

O-RING - cooler to filter tube

2шт.

304573R1

GASKET

- cranking motor

1шт.

349055R2

RING

O-RING - oil pump safety valve

1шт.

12

601381C1

GASKET

- oil pump cover

1шт.

670325C94

PACKAGE

KIT - cylinder head gasket, Includes: Parts Listed Below

1шт.

13

670672C1

CYLINDER HEAD GASKET

- cylinder head

1шт.

934662R1

SEALING RING,10mm ID x 14mm OD x 1mm Thk

GASKET - annular, 3/8 inch

6шт.

14

328678R1

GASKET

- valve cover

1шт.

15

609402C1

GASKET

- breather cover

1шт.

326818R1

GASKET

- thermostat housing elbow

2шт.

16

326820R1

GASKET

- thermostat housing

1шт.

16

607258C1

GASKET

- thermostat housing

1шт.

17

188275A1

MANIFOLD GASKET

- exhaust manifold (Replaces gasket 670848C1)

6шт.

18

670035C1

GASKET

GASKET - turbo flange

1шт.

19

327755R1

GASKET

- air intake

1шт.

20

1342834C1

GASKET

- turbocharger oil inlet tube (Replaces gasket 253660R1)

1шт.

20

341464R1

GASKET

- turbocharger oil drain

1шт.

21

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

GASKET - nozzle

6шт.

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Injection nozzle, dust -118, 70 Duro, .862" ID x .103" Thk

6шт.

222-102

SLEEVE,1/4" Tube

Leak off (Replaces sleeve 915500R1) 1/4" Tube

6шт.

369497R3

GASKET

- turbocharger air outlet

1шт.

678001C92

PACKAGE

KIT - crankcase service, no longer available, order components, Includes: Parts Listed Below & on Figure 7-22

1шт.

670896C92

CRANKCASE

- engine, no longer available

1шт.

343464R1

TUBE,0.049" ID, 1" OD, 2" Length

NOZZLE - piston coolant jet, oil

12шт.

670027C92

PACKAGE

KIT - piston ring service, no longer available, order kit 674728C91

1шт.

674728C91

RING, SET

KIT - piston ring service (Replaces kit 625430C91)

1шт.

681314C3

BEARING SET

BEARING - connecting rod (Replaces bearing 323962R11)

6шт.

328771R91

BEARING SET

BEARING - crankshaft front

1шт.
