Запчасти Case IH DT-407 (7-18) - SHORT BLOCK ENGINE, CLIPS, SERVICE KITS

670945C91

ENGINE ASSEMBLY

ENGINE - block, short, new, used with 1026, 1256, 21026 and 21256 tractors, no longer available, order remanufactured engine 749207C91

1шт.

749614C91

SKELETON ENGINE

ENGINE - block, short, remanufactured for short block 701347C91 (North America only), no longer available

1шт.

1928059C1

CORE-ENGINE

RETURN NUMBER - use this part number to return engine for credit when using a remanufactured assembly

1шт.

701347C91

ENGINE

- block, short, D-407 engine, used with 856 and 2856 tractors, no longer available, order remanufactured service engine 749614C91

1шт.

749207C91

ENGINE ASSEMBLY

ENGINE - block, short, remanufactured for short block 670945C91 (North America only), DT-407, used with 1026, 1256 and 1456 tractors, 915 combines with chassis serial numbers, Serial Range: prior-9001

1шт.

1928037C1

CORE-ENGINE

RETURN NUMBER - use this part number to return engine for credit when using a remanufactured assembly

1шт.

670945C91

ENGINE ASSEMBLY

ENGINE - block, short, DT-407 engine, consists of: camshaft, connecting rods and bearings, crankcase, crankshaft and bearings, oil pump less screen, pistons with pins and rings, valve tappets

1шт.

When engine is ordered for 915 combines, use oil pump sump inlet 612126C91 instead of oil pump sump inlet 332545R91.

1шт.

749906C91

ENGINE - basic, remanufactured, turbocharged, used with 915 combines, 1026, 21026, 1256, 21256, 1456 and 21456 tractors, no longer available

1шт.

See remanufactured parts marketing book for content.

1шт.

749920C91

ENGINE - basic, remanufactured, used with 815 combines, 856 and 2856 tractors, no longer available

1шт.

See remanufactured parts marketing book for content.

1шт.

384554R1

CLIP

- cable harness, used with all machines except 1256 tractors

1шт.

349059R91

CLIP - harness and tachometer drive, used with 1026, 1256, 1456, 21026, 21256, and 21456 tractors, no longer available

1шт.

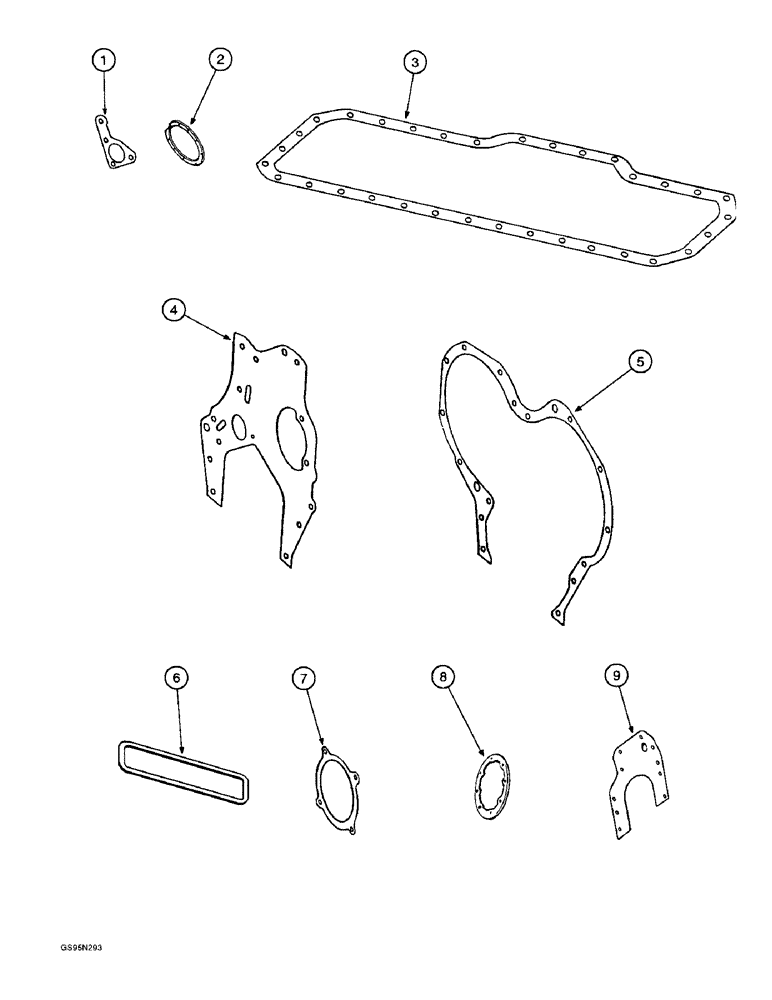

670324C93

PACKAGE

KIT - crankcase gasket, Includes: Parts Listed Below & on Figure 7-20

1шт.

1

328892R1

GASKET

- water pump

1шт.

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

Water pump bearing housing -254, 70 Duro, 5.484" ID x .139" Thk

1шт.

2

337242R1

GASKET

- cooler header

2шт.

3

328731R2

OIL PAN GASKET SET

- oil pan

1шт.

4

328735R1

GASKET

- front plate

1шт.

5

326580R1

GASKET

- front cover

1шт.

6

328739R1

GASKET

- valve lifter cover

2шт.

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Breather tube -214, 70 Duro, .984" ID x .139" Thk

2шт.

3405HA

GASKET

- drain plug

1шт.

7

326582R2

GASKET

- injection pump cover

1шт.

238-5150

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

PTO drive (Replaces O-ring 343831R1) -150, 70 Duro, 2.862" ID x .103" Thk

2шт.

8

332303R1

SEAL

- seal face plate, retainer

1шт.

9

328846R1

GASKET

- flywheel housing

1шт.

238-5266

O-RING,0.139" Thk x 7.984" ID, -266, Cl 5, 75 Duro

- flywheel housing cover

1шт.
