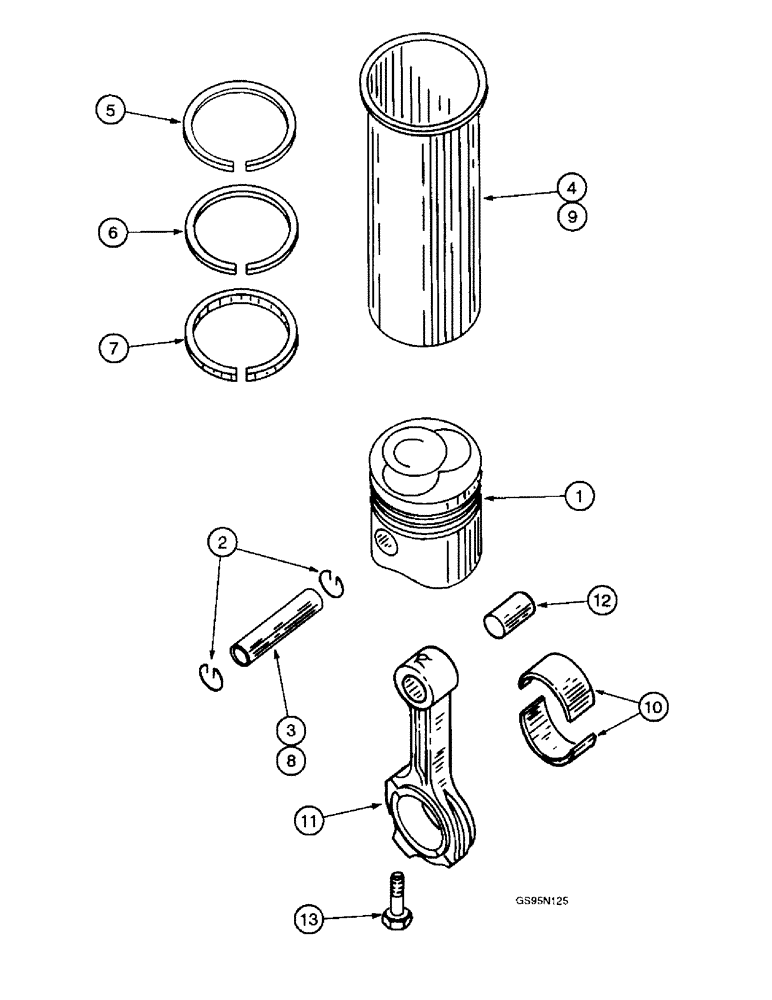

Запчасти Case IH DT-407 (7-10) - CONNECTING RODS, PISTONS AND SLEEVE SETS

670725C91

SLEEVE CYLINDER

KIT - piston and sleeve, used with 1456 tractors, 21456 tractors and 915 combines, Includes: Ref. 1 - 7

6шт.

670297C92

STRIPPER PACKAGE

KIT - piston and sleeve, used with 1026, 1256, 21026, and 21256 tractors, Includes: Ref. 1 - 7

6шт.

670298C92

STRIPPER PACKAGE

KIT - piston and sleeve, used with 856 tractors, 2856 tractors, and 915 combines, Includes: Ref. 1 - 7

6шт.

1

670677C1

PISTON ASSY.

PISTON - engine, used with kit 670725C91

1шт.

1

670294C1

PISTON

- engine, SS marking, used with kit 670297C92

1шт.

1

670173C1

PISTON ASSY.

PISTON - engine, used with kit 670298C92

1шт.

2

326751R1

RING, SNAP

RING - piston pin retaining, used with all machines except 1456, 21456 tractors and 915 combines

2шт.

2

326874R1

RETAINER

RING - piston pin retaining, used with 1456 tractors, 21456 tractors and 915 combines

2шт.

3

670571C1

AXLE PIN,38.1mm OD x 88.9mm L

PIN - piston, standard, will work for 326749R2, used with all machines except 1456 tractors, 21456 tractors and 915 combines

1шт.

3

670675C1

PISTON PIN,41.27mm OD x 89.15mm L

PIN - piston, standard, used with 1456 tractors, 21456 tractors and 915 combines

1шт.

4

A77684

SLEEVE

- cylinder, standard (Replaces sleeve 670293C2)

1шт.

REF

INSTRUCTION

KIT - piston ring, koppers, no longer used, order kit 674728C91 below

6шт.

674728C91

RING, SET

KIT - piston ring, sealed power, Includes: Ref. 5 - 7

6шт.

5

NSS

NOT SOLD SEPARAT

RING - compression piston, top or first groove, order kit 674728C91

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression piston, second groove, order kit 674728C91

1шт.

7

NSS

NOT SOLD SEPARAT

RING - oil piston, third or bottom groove, order kit 674728C91

1шт.

8

670571C1

AXLE PIN,38.1mm OD x 88.9mm L

PIN - piston, 0.005 inch oversize (Replaces piston pin 326750R1)

6шт.

9

A77685

SLEEVE

- cylinder, 0.002 inch oversize (Replaces sleeve 670014C1)

6шт.

9

2062493R1

SLEEVE

- cylinder, 0.010 inch oversize (Replaces sleeve 670015C1)

6шт.

10

681314C3

BEARING SET

BEARING - connecting rod, two halves, standard, will work for 323962R11 and 341573R11

6шт.

10

681315C3

BEARING SET

- connecting rod, two halves, 0.010 inch undersize, will work for 341576R11 and 341579R11

6шт.

REF# 10B-P/N 681315C3 CONN ROD BEARING .010" US). PER CASE# 1263265, THE .020" US CONN ROD BEARING IS P/N 687382C3. JBEDFORD 1/2/03.

1шт.

10

681316C3

BEARING SET

- connecting rod, two halves, 0.030 inch undersize, will work for 341582R11

6шт.

Rod #735239C91 is for 1.5" wristpin. G Oetken - TSG 6/14/00

1шт.

11

341113R94

ROD

ASSEMBLY - connecting, new, used with all machines except 1456 tractors, 21456 tractors, and 915 combines, Includes: REf. 12 & 13

6шт.

11

735239C91

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured , component parts do not apply to the remanufactured assembly

6шт.

11

1928151C1

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return rods for credit when using a remanufactured assembly

6шт.

11

735240C91

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured (North America only), component parts do not apply to the remanufactured assembly

6шт.

Rod #735240C91 is for 1.625" wristin. G Oetken - TSG 6/14/00

1шт.

11

1928153C1

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return rods for credit when using a remanufactured assembly

6шт.

11

670678C91

ROD

ASSEMBLY - connecting, new, used with 1456 tractors, 21456 tractors, and 915 combines, Includes: Ref. 12 & 13

6шт.

12

326562R1

BUSHING

- piston pin, used with rod assembly 341113R94

1шт.

12

670681C1

BEARING

BUSHING - piston pin, used with rod assembly 670678C91

1шт.

13

326563R2

BOLT (SPREADER),1/2" - 20 x 2.1"

BOLT - connecting rod

2шт.
