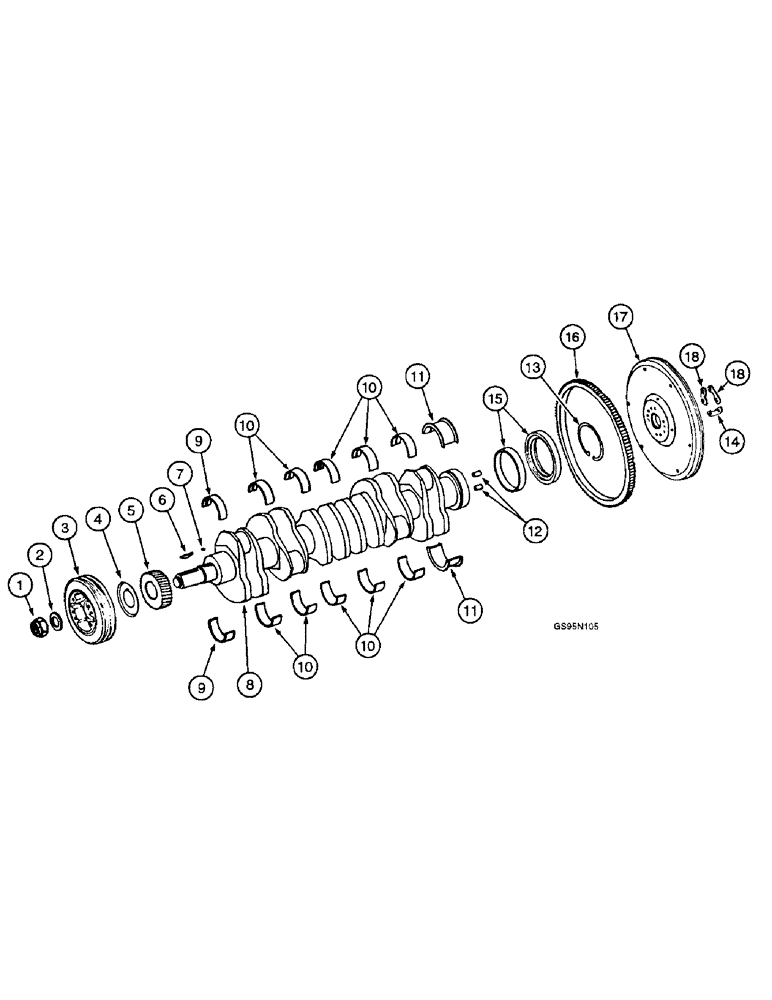

Запчасти Case IH DT-407 (7-08) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

19857R1

NUT

- starting

1шт.

2

116451H

WASHER

- starting nut

1шт.

3

701036C93

DAMPER

ASSEMBLY - vibration, Includes: Ref. 3A

1шт.

3a

606779C2

SLEEVE

- wear, damper, not illustrated

1шт.

4

612280C1

SLINGER

- crankshaft oil

1шт.

5

326705R1

PINION

GEAR - crankshaft

1шт.

6

332421R2

KEY

- vibration damper

1шт.

7

126-128

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

Crankshaft gear (Replaces key 124556) #18, 1/4" x 1 1/8", HT

1шт.

8

735217C91

REMAN-CRANKSHAFT

CRANKSHAFT - remanufactured (North America only), 0.010 inch undersize, no longer available

1шт.

8

749652C91

REMAN-CRANKSHAFT

CRANKSHAFT - remanufactured (North America only), 0.030 inch undersize, no longer available

1шт.

8

1928171C1

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

8

670008C11

CRANKSHAFT

- standard, new, no longer available

1шт.

8

670020C91

CRANKSHAFT

- undersize, new, no longer available

1шт.

9

328771R91

BEARING SET

BEARING - crankshaft front, two halves, standard

1шт.

9

341536R91

BEARING - crankshaft front, two halves, 0.002 undersize, no longer available

1шт.

9

341545R91

BEARING SET

- crankshaft front, two halves, 0.010 undersize

1шт.

9

341563R91

BEARING SET

- crankshaft front, two halves, 0.030 undersize

1шт.

10

328774R91

BEARING SET

BEARING - crankshaft intermediate, two halves, standard

5шт.

10

341548R91

BEARING SET

- crankshaft intermediate, two halves, 0.010 undersize

5шт.

10

341566R91

BEARING SET

- crankshaft intermediate, two halves, 0.030 undersize

5шт.

11

328777R91

BEARING SET

BEARING - crankshaft rear, two halves, standard

1шт.

11

341551R91

BEARING SET,Piston Rod

BEARING - crankshaft rear, two halves, 0.010 undersize

1шт.

11

341569R91

BEARING SET

- crankshaft rear, two halves, 0.030 undersize

1шт.

12

19838R1

DOWEL,15.88mm OD x 31.75mm L

PIN - flywheel to crankshaft dowel

2шт.

13

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, , Used with 856, 1026, 1256, 2856, 21026 and 21256 tractors (Replaces 456736R1) 2.062", Int, #206

1шт.

14

345473R1

RETAINER

PLATE - lock bolt

1шт.

15

1809964C92

OIL SEAL

KIT - crankshaft rear oil seal, will work for 674262C93 (Replaces kits 678529C91 and 691631C91)

1шт.

326760R41

FLYWHEEL

ASSEMBLY - used with 1256, 1456, 21256 and 21456 tractors, Includes: Ref. 16 & 17

1шт.

341603R31

FLYWHEEL

ASSEMBLY - used with 856, 1026, 2856, and 21026 tractors, Includes: Ref. 16 & 17

1шт.

672369C92

FLYWHEEL ASSEMBLY - used with 815 and 915 combines, no longer available, Includes: Ref. 16 & 17

1шт.

16

326759R1

GEAR

- flywheel ring, used with 132 teeth, 1256, 1456, 21256 and 21456 tractors

1шт.

16

341604R1

GEAR

- ring, used with 856, 1026, 2856, 21026 tractors, 815 and 915 combines

1шт.

17

NSS

NOT SOLD SEPARAT

FLYWHEEL - order flywheel assembly

1шт.

28-826

BOLT,Hex, 1/2" - 20 x 1-5/8", Gr 8

- flywheel to crankshaft, hex, 1/2 NF x 1-5/8 inch, grade 8 (Replaces bolt 327131R1)

6шт.

18

345472R1

RETAINER

PLATE - lock bolt

2шт.
