Запчасти Case IH DT-361 (8-06) - CRANKCASE FRONT COVER & IDLER GEAR, 806 & 2806 TRACTORS W/ENGINE S/N PRIOR TO 23979

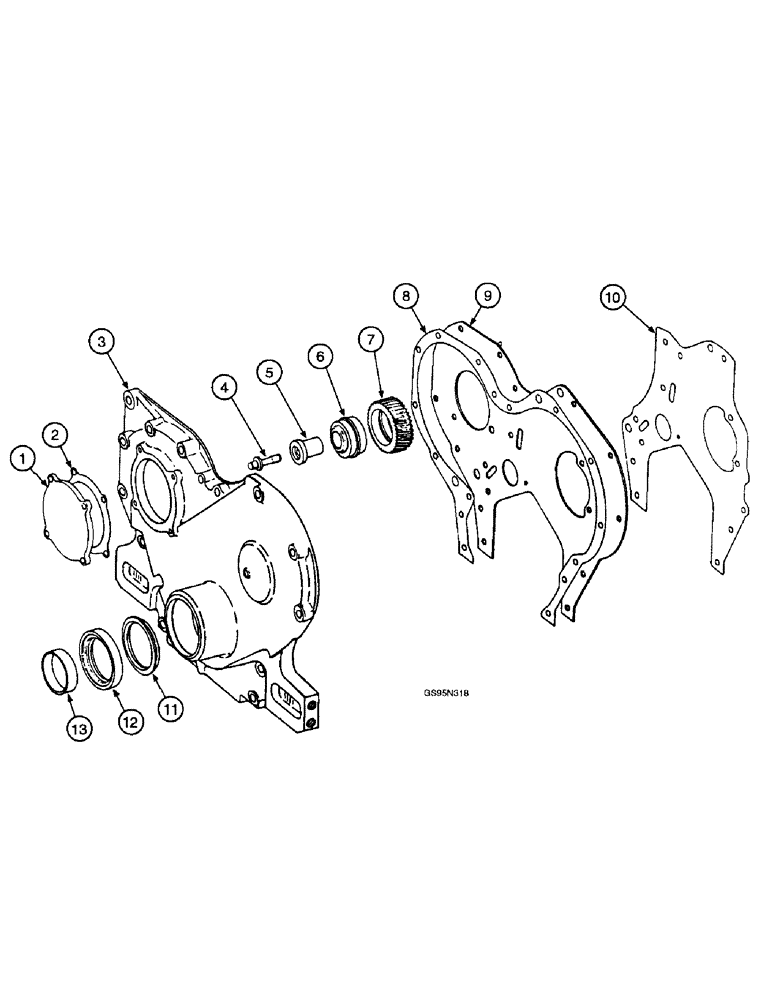

Схема запчастей Case IH DT-361 - (8-06) - CRANKCASE FRONT COVER & IDLER GEAR, 806 & 2806 TRACTORS W/ENGINE S/N PRIOR TO 23979
4
6
5
8
7
12
9
2
11
1
13
10
3

Артикул

Название

Примечание

Количество

1

326581R1

COVER - injection pump, no longer available

1шт.

27768R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- cover (Replaces bolt 311979R1)

4шт.

2

326582R2

GASKET

- injection pump cover

1шт.

3

349040R2

COVER - crankcase front, no longer available

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

5шт.

25778R1

BOLT,Hex, 3/8" - 24 x 2 3/4", Gr 8

SCREW - hex, 3/8 NC x 2-3/4 inch

2шт.

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- hex, 1/2 NC x 1-7/8 inch

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

4

670033C1

BOLT (SPREADER)

BOLT - counterbore

1шт.

5

326583R2

SHAFT

- idler gear

1шт.

601740C1

WASHER

SPACER - idler gear shaft

1шт.

6

327185R91

BEARING ASSY,31.75mm ID x 59.16mm OD x 36.75mm W

- idler gear

1шт.

7

326612R1

PINION

GEAR - injection pump idler

1шт.

8

326580R1

GASKET

- front cover

1шт.

9

328732R11

PLATE ASSEMBLY - crankcase front, no longer available, Includes: Ref. 9A & 9B

1шт.

9a

264723R1

NUT - spline, no longer available, not illustrated

2шт.

9b

37-148

DOWEL,1/4" x 1/2"

PIN - dowel, 3/8 x 3/4 inch, hardened (Replaces pin 19841R1), not illustrated

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

328735R1

GASKET

- front plate

1шт.

11

116457H

DEFLECTOR

- oil, engine serial numbers, Serial Range: 501-11200

1шт.

12

333750R91

SEAL

- crankshaft front oil, prior to engine serial number 21596

1шт.

12

606780C93

PACKAGE

SEAL ASSEMBLY - oil, crankshaft front, engine serial numbers 21597 to 23978, Includes: Ref. 13

1шт.

13

606779C2

SLEEVE

- wear

1шт.

Выбрано товаров: 25
