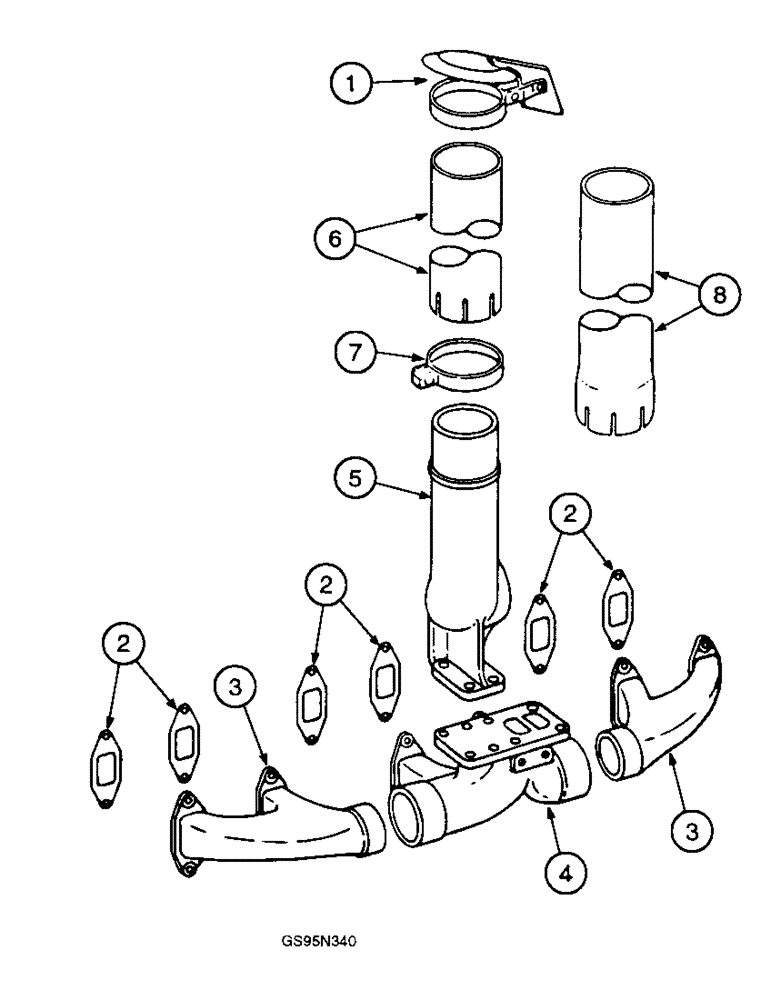

Запчасти Case IH DT-361 (8-88[A]) - INTAKE AND EXHAUST MANIFOLDS, 1206 AND 21206 TRACTORS

1

321576R91

CYLINDER END CAP

CAP - exhaust (Replaces cap 402315R1)

1шт.

2

188275A1

MANIFOLD GASKET

- exhaust manifold (Replaces gasket 326523R1)

6шт.

3

607251C1

MANIFOLD

- exhaust, front and rear

2шт.

250451R1

NUT

- exhaust manifold stud

8шт.

4

607252C21

MANIFOLD

- center exhaust

1шт.

250451R1

NUT

- exhaust manifold stud

4шт.

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444577)

2шт.

5

607282C1

ELBOW

- turbo exhaust outlet

1шт.

6

402313R1

TUBE

PIPE - exhaust extension (Replaces pipe 391930R1)

1шт.

7

402314R91

CLAMP,94.16mm - 97.21mm

- exhaust extension pipe, no longer available (Replaces clamp 395811R1)

1шт.

8

402986R1

PIPE, EXHAUST SYSTEM

EXTENSION - exhaust pipe, tractors with cab (Replaces extension 392982R1)

1шт.
