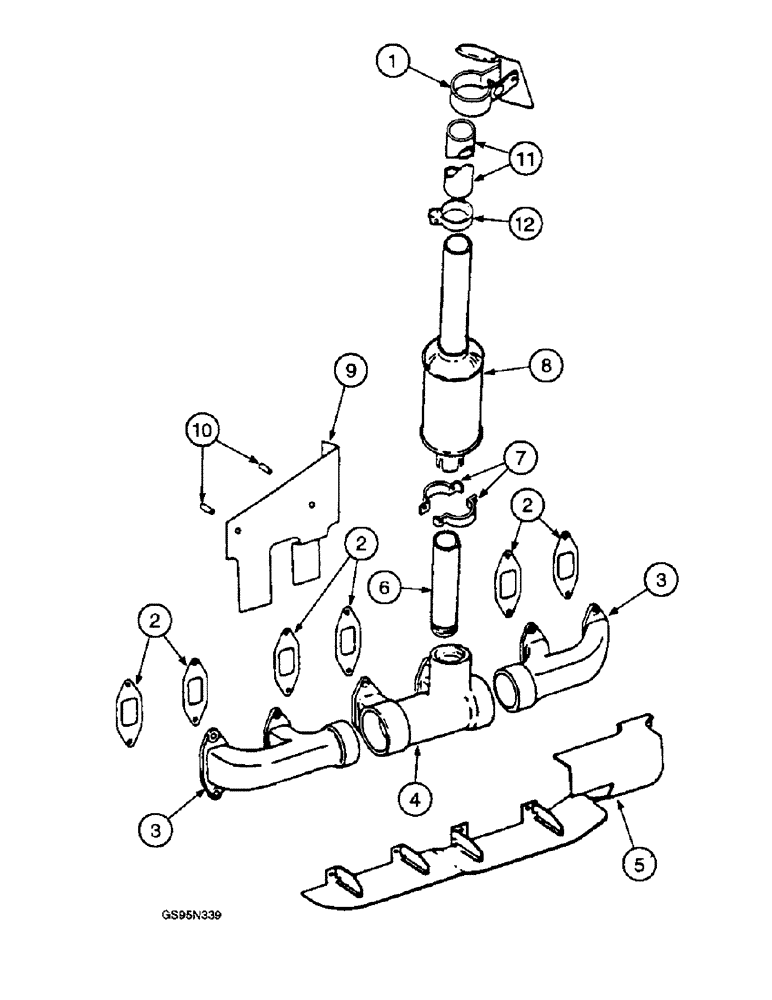

Запчасти Case IH DT-361 (8-86) - INTAKE AND EXHAUST MANIFOLDS, 806 AND 2806 TRACTORS

1

D33884

CAP

- exhaust (Replaces cap 321575R91)

1шт.

1

999579R91

CYLINDER END CAP

CAP - exhaust, tractors with cab (Replaces cap 391160R91)

1шт.

2

188275A1

MANIFOLD GASKET

- exhaust manifold (Replaces gasket 326523R1)

6шт.

3

326521R1

MANIFOLD

- exhaust, front and rear

2шт.

250451R1

NUT

- exhaust manifold stud

8шт.

4

326699R1

TUBE ASSY.,90.17mm Bore Dia

MANIFOLD - exhaust, center, no longer available

1шт.

250451R1

NUT

- exhaust manifold stud

4шт.

5

345465R91

SHIELD - heat, engine serial numbers 501 to 13612, no longer available

1шт.

96-11053

WASHER,17/32" x 1 1/16" x .095", HDN

- shield, flat, 17/32 x 1-1/16 x 3/32 inch, hardened (Replaces washer 58516H)

4шт.

6

383974R2

TUBE,17.8" Length

PIPE - exhaust

1шт.

7

384402R1

FASTENER

CLAMP - exhaust muffler

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

398511R1

MUFFLER

- exhaust (Replaes muffler 384345R92)

1шт.

8

398511R1GV

MUFFLER

Value, Muffler

1шт.

9

385121R1

SHIELD - injection line, no longer available

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

10

389522R1

SPACER - injection line shield, no longer available

2шт.

11

527703R1

EXTENSION

- exhaust muffler, tractors with cab (Replaces extension 391154R1)

1шт.

12

391156R1

CLAMP

- exhaust muffler extension, tractors with cab

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 17471R1)

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
