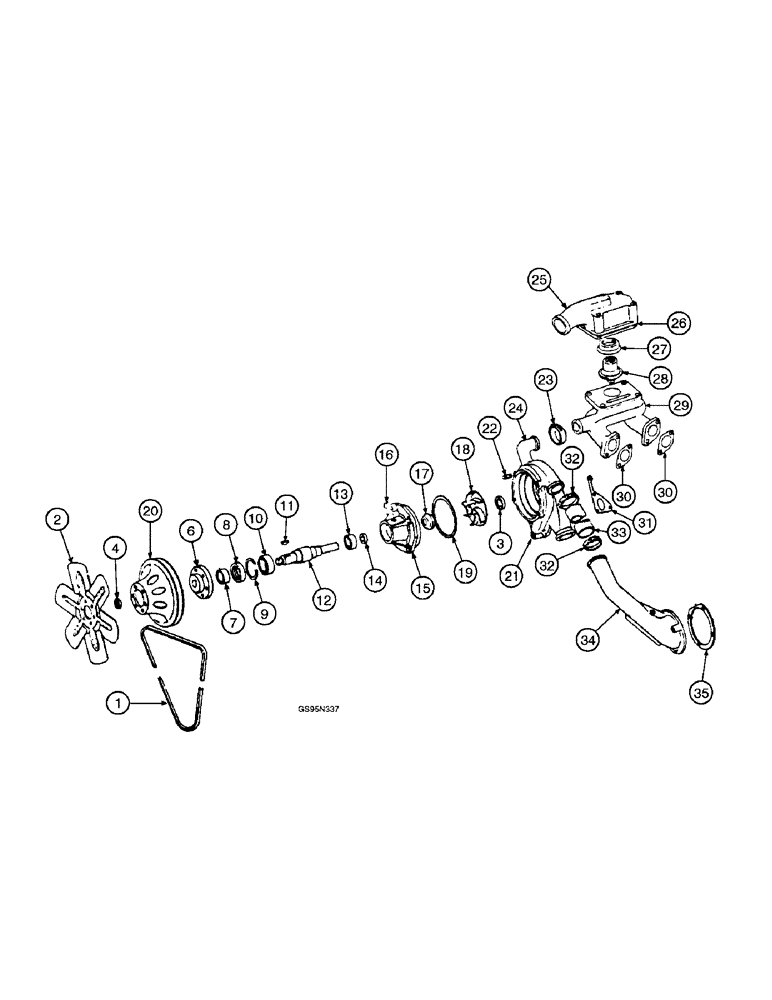

Запчасти Case IH DT-361 (8-78) - FAN, THERMOSTAT AND WATER PUMP, 806 AND 2806 TRACTORS W/ENGINE S/N 23699 & AFTER

749551C91

REMAN-WATER PUMP

Also Order Hub PN 341105R1 , Key 142435 , and Nut 332310R1

1шт.

1928137C1

CORE-WATER PUMP

Return Number

1шт.

1

380060R1

V-BELT,0.597" W 66.00" L

Generator and water pump

1шт.

1

385120R2

V-BELT,0.597" W 66.50" L

Alternator-generator and water pump

1шт.

2

A173728

FAN

BLADE - fan (Replaces blade 383668R91)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

701335C92

CASE

HOUSING ASSEMBLY - water pump bearing, new, no longer available, order remanufactured assembly 749551C91, Includes: 425-116, 92-11038 & Ref. 3 - 18

1шт.

425-116

NUT,3/8" - 24, Gr 5

NUT - hex, 3/8 inch NF

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

265164C91

PACKING RING

SEAT - water pump seal, no longer available, order kit 687161C92

1шт.

Part of water pump service kit P/N 609459C92

1шт.

4

19687R1

LOCK NUT,7/8"-14

NUT - stop, 7/8 inch NF (Replaces nut 18501R1)

1шт.

6

341105R1

HUB

HUB - fan pulley

1шт.

7

326721R1

SPACER

SPACER - water pump

1шт.

8

333794R91

SEAL

SEAL - oil, water pump shaft

1шт.

9

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, , Brg (Replaces 456736R1) 2.062", Int, #206

1шт.

Part of water pump service kit P/N 609459C92

1шт.

10

ST715

BEARING

BEARING - ball, water pump shaft, front (Replaces bearing ST442)

1шт.

Part of water pump service kit P/N 609459C92

1шт.

11

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

KEY - Woodruff, 3/16 x 3/4 inch (Replaces key 124549)

1шт.

Part of water pump service kit P/N 609459C92

1шт.

12

345081R1

SHAFT

SHAFT - water pump

1шт.

13

L31005

BALL BEARING

BEARING - water pump shaft, rear (Replaces bearing ST441)

1шт.

14

610051C91

SEAL

SEAL - oil, water pump shaft, rear

1шт.

Part of water pump service kit P/N 609459C92

1шт.

15

328889R1

CAGE

HOUSING - bearing

1шт.

16

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex, 3/8 inch PT

1шт.

17

607454C91

PACKAGE

SEAL - water pump, no longer available, order kit 687161C92

1шт.

18

332311R1

IMPELLER

IMPELLER - water pump

1шт.

19

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

O-RING, (Replaces O-ring 285253R1) -254, 70 Duro, 5.484" ID x .139" Thk

1шт.

Part of water pump service kit P/N 609459C92

1шт.

20

341013R1

PULLEY

PULLEY - fan

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

607253C11

BODY

BODY ASSEMBLY - water pump, no longer available, Includes: Ref. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - water pump, order body assembly

1шт.

22

273050R1

STUD

STUD - water pump body

4шт.

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

BOLT - hex, 1/2 NC x 1-7/8 inch

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

BOLT - hex, 1/2 NC x 2-1/4 inch

3шт.

116105

WASHER

WASHER - copper, 17/32 x 1-1/16 inch

4шт.

23

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

24

607255C1

HOSE,1.50" ID x 4.65", SAE 20R4 Class SC or IH

Thermostat By-Pass

1шт.

25

349274R21

SPARE PART HOUSING ASSEMBLY - thermostat, no longer available, Includes: Ref. 25A & 25B

1шт.

25a

88434H

SPARE PART BALL - steel, thermostat, no longer available, not illustrated

1шт.

25b

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex, 3/8 inch PT, not illustrated

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

326820R1

GASKET

GASKET - thermostat housing

1шт.

687161C92

KIT

KIT - seal, water pump, Includes: Seat & Seal Listed Below

1шт.

NSS

NOT SOLD SEPARAT

SEAT - water pump seal, order kit 687161C92

1шт.

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 687161C92

1шт.

27

347497R91

SEAL

SEAL - thermostat, no longer available, order seal 615175C91

1шт.

27

615175C91

SEAL

SEAL - thermostat

1шт.

28

619736C2

THERMOSTAT

THERMOSTAT - engine, 175 to 190 degrees Fahrenheit (Replaces thermostats 326978R91 and 702346C1)

1шт.

28

702346C1

THERMOSTAT

THERMOSTAT - engine, 170 to 192 degrees Fahrenheit, no longer available, order thermostat 619736C2 above

1шт.

29

601549C11

SPARE PART ELBOW ASSEMBLY - thermostat housing, no longer available, Includes: Ref. 29A

1шт.

29a

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

PLUG - square socket, magnetic, 1/2 inch PT (Replaces plug 444667), not illustrated

2шт.

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 5/8", G5

3шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

326818R1

GASKET

GASKET - elbow

2шт.

31

328892R1

GASKET

GASKET - water pump

1шт.

32

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 274087R91) #28, 1.31/2.25 Type F Worm

2шт.

33

407006R1

HOSE

HOSE - 3 foot long, cut from bulk hose S118571 below

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

BOLT - hex, 5/16 NC x 2-1/4 inch

7шт.

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

BOLT - hex, 5/16 NC x 4 inch

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT - hex, 3/8 NC x 1-3/4 inch

1шт.

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-5/8 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

337242R1

GASKET

GASKET - oil, Serial Range: cooler-header

1шт.

609459C92

SERVICE KIT

KIT - water pump service, Includes: refs. nos. 3, 9, 10, 11, 14 & 19, no longer available as a kit, order components

1шт.

S118571

HOSE,1.75" ID x 120.00", SAE 20R1

Bulk

1шт.
