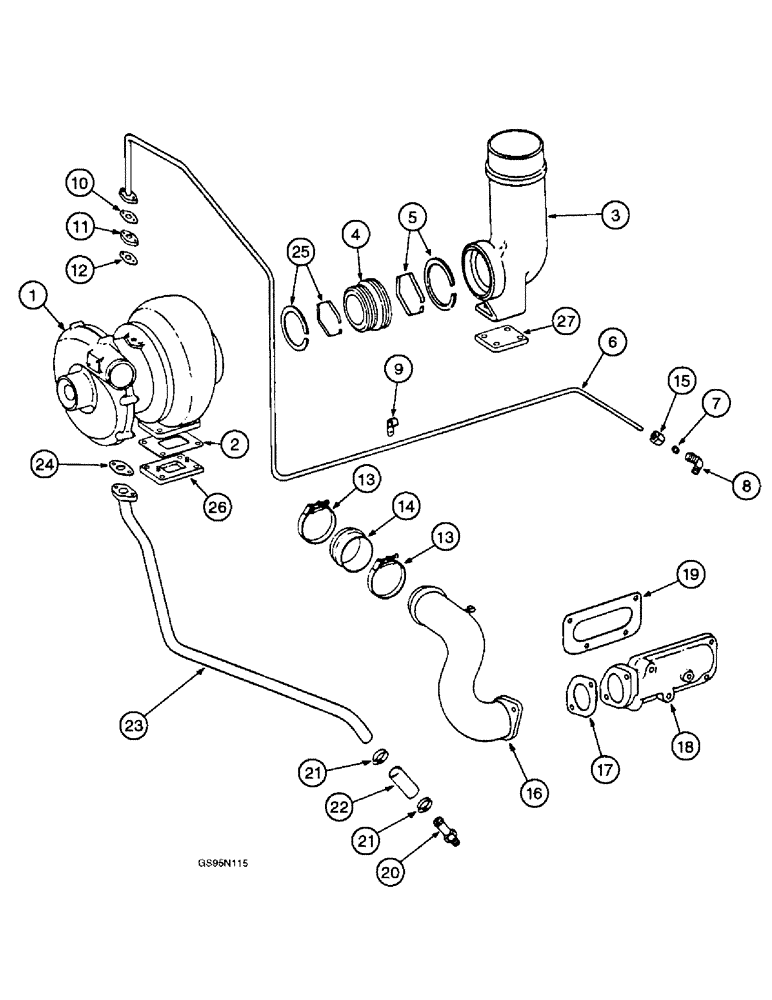

Запчасти Case IH DT-361 (8-73A) - TURBOCHARGER AND CONNECTIONS, 1206 AND 21206 TRACTORS
№
Артикул
Название
Примечание
Количество
1
702277C91
SUPERCHARGER
TURBOCHARGER ASSEMBLY - engine, parts list Figure 8-71A
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
1
749305C91
REMAN-TURBOCHARGER
Remanufactured, TURBOCHARGER
1шт.
1
1928231C1
CORE-TURBOCHARGER
Return Number
1шт.
222-4636
NUT - hex, 3/8 inch NF, grade 8 (Replaces nut 9413980)
4шт.
414-624
BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5
- hex, 3/8 NF x 1-1/2 inch (Replaces bolt 181374)
4шт.
2
670035C1
GASKET
GASKET - turbocharger
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
3
670049C1
ELBOW UNION
ELBOW - exhaust outlet
1шт.
Included in Exhaust Oulet Elbow Kit P/N 670090C91
1шт.
3a
232-4636
LOCK NUT,3/8"-24, GC
NUT, LOCK, (Replaces nut 9413980), Not illustrated 3/8"-24, GC
4шт.
3b
414-624
BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch (Replaces bolt 181374), not illustrated
4шт.
Included in Exhaust Oulet Elbow Kit P/N 670090C91
1шт.
4
670036C1
SLEEVE CYLINDER
SLEEVE - exhaust outlet elbow
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
5
606918C91
SEAL
SEAL - turbocharger exhaust sleeve, if used
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
5
615710C1
SEAL
- turbocharger exhaust sleeve, if used
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
6
670041C11
TUBE,14.6, 11.7" Length
- oil inlet (Replaces tube 670620C11)
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
6a
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch (Replaces bolt 179818), Not illustrated
2шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
7
277737R1
SLEEVE
- oil inlet tube
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
8
277743R1
ELBOW UNION
ELBOW - oil inlet tube
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
9
S64985
CLAMP
CLIP - drum harness, oil inlet tube (Replaces clip 670043C1)
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
10
1342834C1
GASKET
- oil inlet tube flange (Replaces gasket 253660R1)
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
11
601005C91
SCREEN - oil run-in, no longer used
1шт.
12
1342834C1
GASKET
- oil run-in screen (Replaces gasket 253660R1)
1шт.
13
214-1428
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
CLAMP, HOSE, , Adjustable, Outlet hose (Replaces clamp 995220R1) #28, 1.31/2.25 Type F Worm
2шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
14
670053C1
ELBOW UNION
HOSE - air outlet
1шт.
670065C1
INTAKE AIR HOSE,76.20 mm ID x 91.30 mm
76.20 mm ID x 91.30 mm
1шт.
15
277738R1
NUT
- oil inlet tube
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
16
670050C11
TUBE - air outlet, no longer available
1шт.
413-716
BOLT,Hex, 7/16" - 14 x 1", Gr 5
(Replaces 179858) Hex, 7/16"-14 x 1", G5, Full Thd
2шт.
110405
WASHER - lock, 7/16 inch, light spring, no longer used
2шт.
17
369497R3
GASKET
- air outlet tube flange
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
18
607286C11
ELBOW ASSEMBLY - air intake
1шт.
221-841
PLUG
- hex socket, 1/4 inch PT
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch (Replaces bolt 179839)
2шт.
413-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
- hex, 3/8 NC x 3-1/4 inch (Replaces screw 186282)
2шт.
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, (Replaces washer 103321) 3/8"
4шт.
19
327755R1
GASKET
- air intake elbow
1шт.
20
343750R91
CONNECTOR - oil drain hose, no longer available
1шт.
21
214-1412
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
Adj - Oil drain hose (Replaces clamps 122316R91 and 995218R1) #12, 0.69/1.25 Type F Worm
2шт.
22
336681R1
HOSE
- oil drain, 2-1/4 inch (57 mm) long, cut from bulk hose 364360C1 below
1шт.
364360C1
HOSE
- bulk, 3/4 (19) ID x 600 inch (15240 mm) long
1шт.
23
670037C11
TUBE,20, 8" Length
- oil drain
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
23a
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch (Replaces bolt 179839), not illustrated
2шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
23b
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, (Replaces washer 103321), Not illustrated 3/8"
2шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
24
341464R1
GASKET
- oil drain tube flange
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
25
615710C1
SEAL
- turbocharger exhaust sleeve
1шт.
26
670063C11
ADAPTER
ASSEMBLY - turbocharger
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
26a
291140
FLEXIBLE HOSE,0.62" OD, 57, 3.38" Length
STUD - adapter, no longer used, not illustrated
2шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
26b
63115D
WASHER,10.32mm ID x 17.46mm OD x 2.74mm Thk
NUT - includes washer (Replaces nut 619471C1), not illustrated
2шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
26c
114-216
BOLT,Hex, 3/8" - 24 x 2", Gr 5
- hex, 3/8 NF x 2 inch (Replaces screw 181379), not illustrated
6шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
26d
414-628
BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5
- hex, 3/8 NF x 1-3/4 inch (Replaces screw 181377), not illustrated
2шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
232-4636
LOCK NUT,3/8"-24, GC
NUT, LOCK, (Replaces nut 9413980) 3/8"-24, GC
8шт.
27
670088C1
ADAPTER
- turbocharger exhaust elbow
1шт.
Included in Exhaust Oulet Elbow Kit P/N 670090C91
1шт.
27a
304391R2
GASKET
- turbo charger adapter, not illustrated
1шт.
Included in Turbocharger Conversion Kit P/N 670060C92
1шт.
12215D
STUD
- turbocharger adapter
2шт.
703180C91
KIT - heavy duty air cleaner, no longer available
1шт.
670060C92
KIT - turbocharger conversion, Includes: 1, 2, 4 - 10, 13, 15, 17, 23, 23A, 23B, 24, 26, 26A, 26B, 26C, 26D & 27A, no longer available, order components
1шт.
670090C91
KIT - exhaust outlet elbow, for service on elbow 609116C91, Includes: Ref. 3, 3B & 27, no longer available
1шт.
