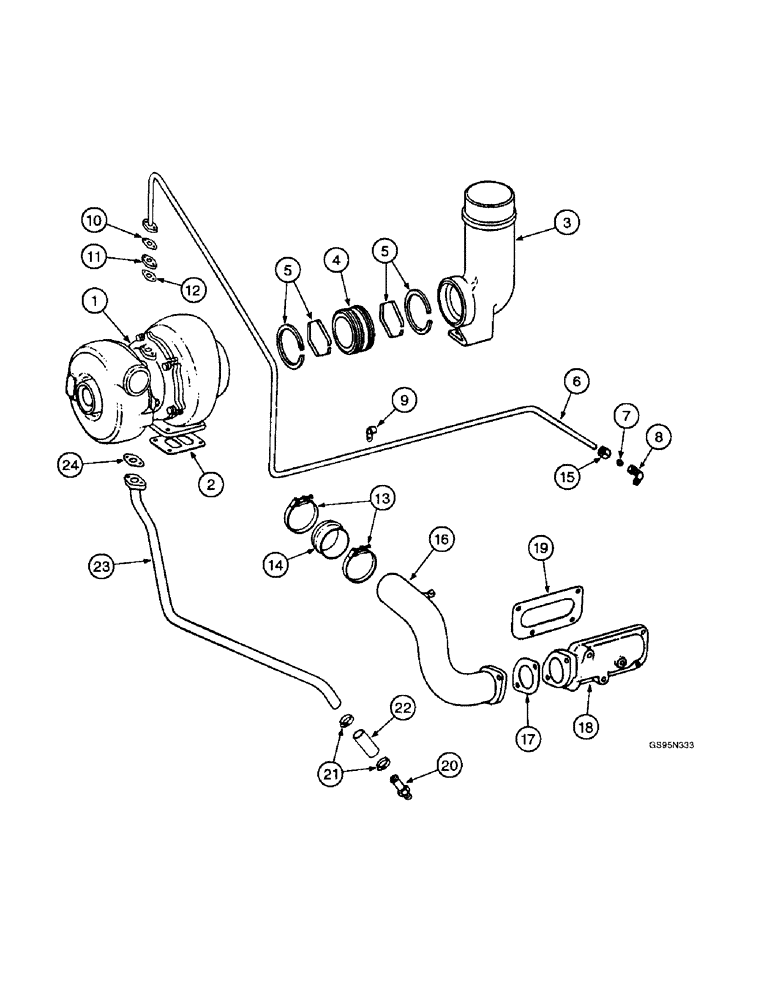

Запчасти Case IH DT-361 (8-72) - TURBOCHARGER AND CONNECTIONS, 1206 AND 21206 TRACTORS

1

900173C91

TURBOCHARGER ASSEMBLY - DT-361 engine, parts list Figure 8-70

1шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, (Replaces nut 304451R1) 3/8"-24, GC

4шт.

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex, 3/8 NF x 1-1/2 inch (Replaces screw 181371)

4шт.

2

304391R2

GASKET

- turbocharger

1шт.

3

607282C1

ELBOW

- exhaust outlet

1шт.

304451R1

NUT

- special, 3/8 inch NF

4шт.

181371

BOLT

SCREW - hex, 3/8 NF x 1-3/8 inch

4шт.

4

607283C1

SLEEVE CYLINDER

SLEEVE - exhaust outlet elbow, no longer available

1шт.

5

606918C91

SEAL

SEAL - exhaust outlet elbow

2шт.

6

607287C11

TUBE

- oil inlet, no longer available

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

277741R2

SLEEVE CYLINDER

SLEEVE - oil inlet tube

1шт.

8

336014R1

ELBOW UNION

ELBOW - oil inlet tube, no longer available

1шт.

9

363487R1

CLIP

- oil inlet tube

1шт.

10

1342834C1

GASKET

- oil inlet tube flange (Replaces gasket 253660R1)

1шт.

11

601005C91

SCREEN - oil run-in, no longer available

1шт.

12

1342834C1

GASKET

- oil run-in screen (Replaces gasket 253660R1)

1шт.

13

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Outlet hose, Adjustable (Replaces clamp 279038R91) #32, 1.56/2.50 Type F Worm

2шт.

14

310385R2

INTAKE AIR HOSE,2.21" ID x 3.00", SAE J200

- Outlet 2.21" ID x 3.00", SAE J200

1шт.

15

277742R1

NUT

- oil inlet tube

1шт.

16

607285C11

TUBE - air outlet, no longer available

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

110405

WASHER - lock, 7/16 inch, no longer used

2шт.

17

369497R3

GASKET

- air outlet tube flange

1шт.

18

607286C11

ELBOW - air intake, no longer available

1шт.

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444577)

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch (Replaces screw 186282)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

327755R1

GASKET

- air intake elbow

1шт.

20

343750R91

CONNECTOR - oil drain hose, no longer available

1шт.

21

995218R1

CLAMP

- oil drain hose (Replaces clamp 122316R91)

2шт.

22

336681R1

HOSE

- oil drain, 2-1/4 inch (57 mm) long, cut from bulk hose 364360C1 below

1шт.

23

607284C11

TUBE - oil drain, no longer available

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

341464R1

GASKET

- oil drain tube flange

1шт.

364360C1

HOSE

- bulk, 3/4 (19) ID x 600 inch (15240 mm) long

1шт.
