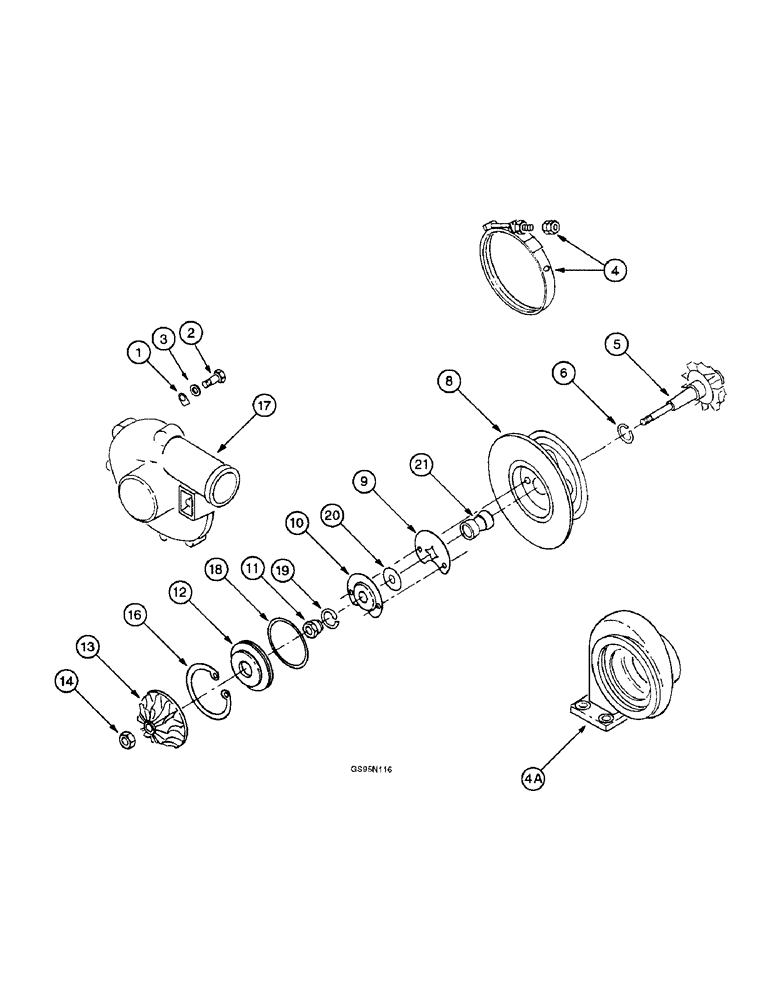

Запчасти Case IH DT-361 (8-71A) - TURBOCHARGER, 1206 AND 21206 TRACTORS
№
Артикул
Название
Примечание
Количество
702277C91
SUPERCHARGER
TURBOCHARGER ASSEMBLY - engine, Schwitzer, new, Includes: Ref. 1 - 21
1шт.
749305C91
REMAN-TURBOCHARGER
TURBOCHARGER ASSEMBLY - engine, remanufactured component parts do not apply to the remanufactured assembly
1шт.
1928231C1
CORE-TURBOCHARGER
RETURN NUMBER - use this part number to return turbocharger core for credit when using a remanufactured assembly
1шт.
1
619474C1
LOCK ASSY
CLAMP - tab type
4шт.
2
625744C1
BOLT (SPREADER)
BOLT - includes washer (Replaces bolt 615811C1)
8шт.
3
900107C1
SPARE PART WASHER - lock, 1/4 inch, no longer available
8шт.
4
A49855
CLAMP
CLAMP ASSEMBLY - v-band (Replaces clamp 702384C91), Includes: Lock Nut Listed Below
1шт.
313163R1
NUT
NUT - lock, 1/4 inch, used with clamp assembly 702384C91, no longer available
1шт.
4a
615812C1
HOUSING
HOUSING - turbine, no longer available
1шт.
702385C91
TURBOCHARGER
CENTER SECTION - turbocharger, no longer available, Includes: Ref. 5 - 21
1шт.
627908C91
REMAN-TURBOCHARGER
Remanufactured TURBOCHARGER
1шт.
1928233C1
CORE-TURBOCHARGER
Return Number
1шт.
5
702386C1
SPARE PART SHAFT - turbine, no longer available
1шт.
6
615819C1
RING, PISTON
RING - turbine piston
1шт.
8
702387C1
HOUSING
HOUSING - bearing
1шт.
9
615818C1
PLATE
PLATE - thrust
1шт.
10
615816C1
DEFLECTOR
DEFLECTOR - oil
1шт.
11
615815C1
SLEEVE
SPARE PART SLEEVE - spacer
1шт.
12
615333C1
INSERT
INSERT - slinger plate
1шт.
13
615813C1
WHEEL (STEERING)
WHEEL - compressor
1шт.
14
25737R1
LOCK NUT,5/16"-24, GB
NUT - wheel lock (Replaces nut 615814C1)
1шт.
16
615332C1
RING
SPARE PART RING - insert snap, no longer available
1шт.
17
615810C1
SPARE PART COVER - compressor, no longer available
1шт.
18
687132C1
GASKET
O-RING - insert (Replaces O-ring 615334C1)
1шт.
19
313156R1
RING
RING - sleeve piston
1шт.
20
615817C1
RING
SPARE PART RING - thrust
1шт.
21
615820C1
BEARING ASSY
BEARING - housing
1шт.
Выбрано товаров: 27
