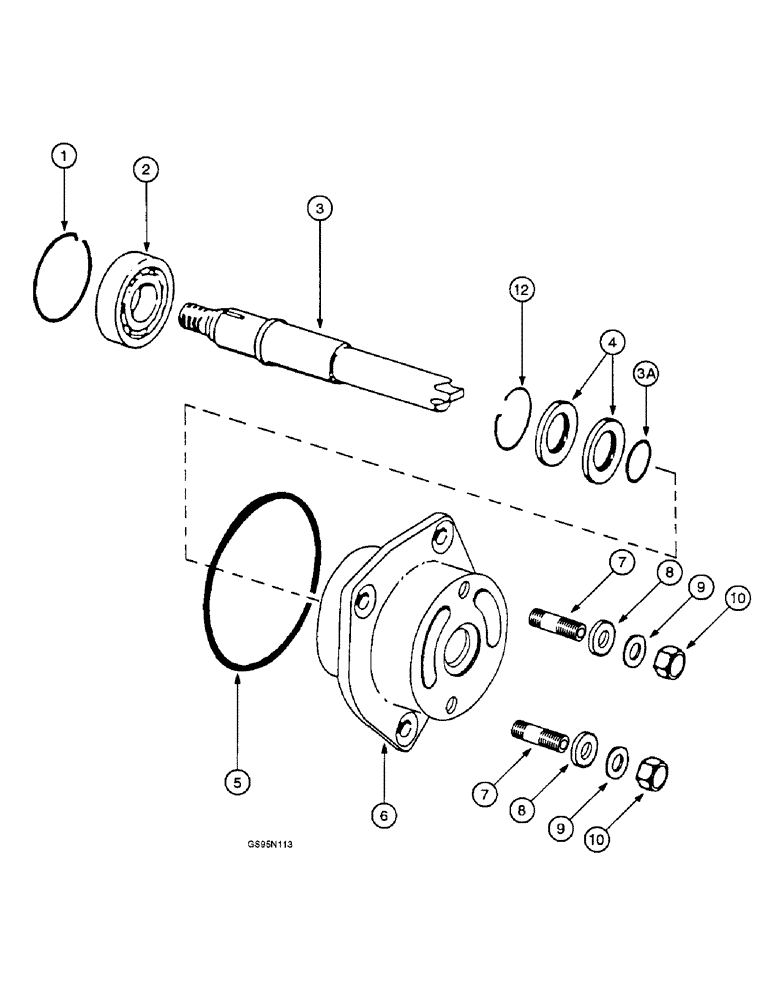

Запчасти Case IH DT-361 (8-52) - FUEL INJECTION PUMP DRIVE, 1206 AND 21206 TRACTORS, 806 AND 2806 TRACTORS W/ENGINE S/N 23979 & AFTER

1

346876R1

BUSHING

RING - bearing retainer

1шт.

2

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING - drive shaft (Replaces bearing 346893R91)

1шт.

3

613612C1

SHAFT

ASSEMBLY - drive, Includes: Ref. 3A

1шт.

3a

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Drive shaft

1шт.

4

372762R91

OIL SEAL

SEAL - drive shaft

2шт.

5

346895R1

WIPER SEAL

SEAL - mounting adapter

1шт.

6

619762C1

COUPLING

ADAPTER - mounting (Replaces adapter 613990C1)

1шт.

7

324688R1

STUD

- mounting

3шт.

8

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 142619H)

3шт.

9

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, (Replaces washer 138542) Int Tooth, 3/8"

3шт.

10

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

3шт.

12

100-21137

SNAP RING,1.375", Int, #137

Ring, Snap, , seal (Replaces 273026R1) 1.375", Int, #137

1шт.
