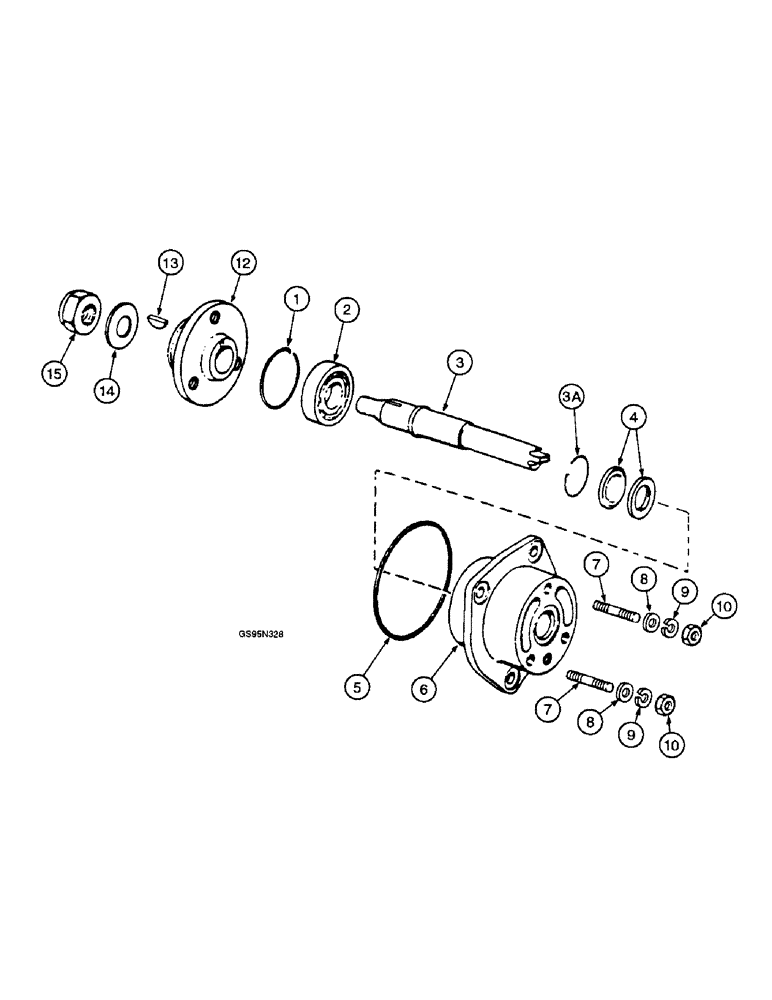

Запчасти Case IH DT-361 (8-50) - FUEL INJECTION PUMP DRIVE, 806 AND 2806 TRACTORS W/ENGINE S/N PRIOR TO 23979

613519C91

DRIVE SPROCKET

DRIVE ASSEMBLY - injection pump, Includes: Ref. 1 - 15

1шт.

1

346876R1

BUSHING

RING - bearing retainer

1шт.

2

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING - drive shaft (Replaces bearing 346893R91)

1шт.

3

615154C1

SHAFT

ASSEMBLY - drive, Includes: Ref. 3A

1шт.

3a

100-21137

SNAP RING,1.375", Int, #137

Ring, Snap, , seal (Replaces 273026R1) 1.375", Int, #137

1шт.

4

372762R91

OIL SEAL

SEAL - drive shaft

2шт.

5

346895R1

WIPER SEAL

SEAL - mounting adapter

1шт.

6

615152C1

ADAPTER - mounting

1шт.

7

324688R1

STUD

- mounting

2шт.

8

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 142619H)

2шт.

9

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, (Replaces washer 138542) Int Tooth, 3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

2шт.

12

615153C1

HUB CAP

HUB - drive, no longer available

1шт.

13

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive hub (Replaces key 106750) #6, 5/32" x 5/8", HT

1шт.

14

615143C1

WASHER - drive hub, no longer available

1шт.

15

19899R1

NUT

- hex, nylon insert, 5/8 inch NF, drive hub

1шт.
