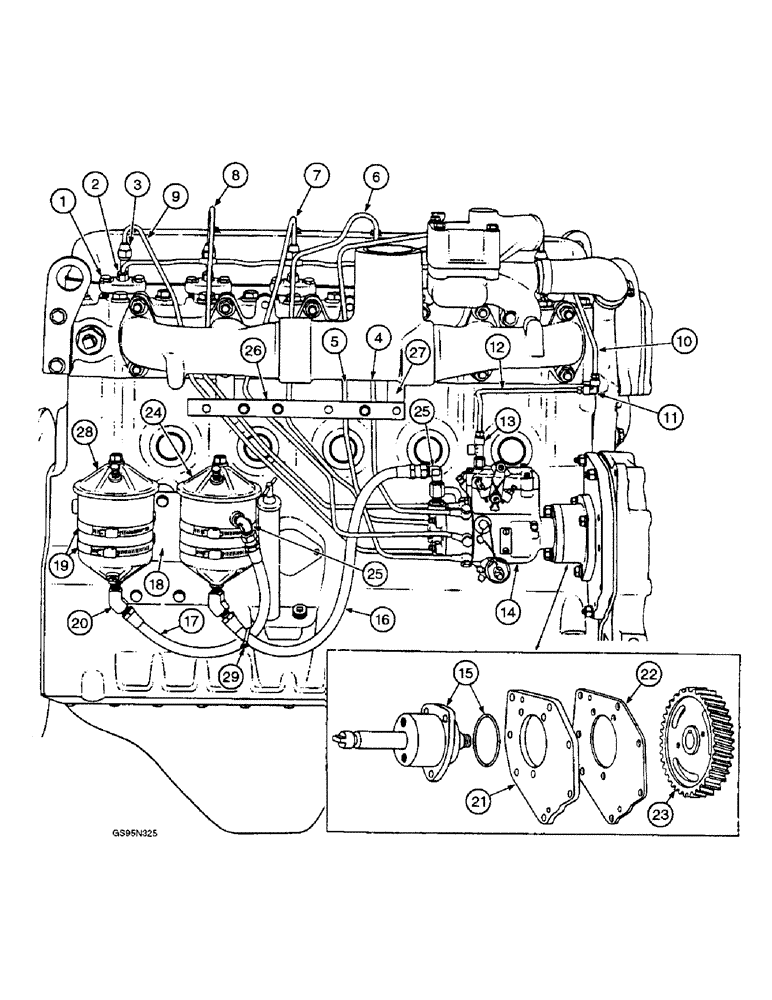

Запчасти Case IH DT-361 (8-38) - FUEL INJECTION PUMP AND CONNECTIONS, 806 AND 2806 TRACTORS W/ENGINE S/N 23979 & AFTER

1

349106R91

ASSEMBLY

NOZZLE ASSEMBLY - injection, engine serial numbers prior to 24300, no longer available, order nozzle assembly 749085C91, parts list Figure 8-48

1шт.

1

610718C91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, Bosch, engine serial number 24301 and after, parts list Figure 8-48

1шт.

601076C1

WASHER,9.42mm ID x 17.27mm OD x 1.68mm Thk

GASKET - nozzle holder

6шт.

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

12шт.

2

336980R1

NUT

- leakoff manifold sleeve

6шт.

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

(Replaces O-ring 364879R1) -118, 70 Duro, .862" ID x .103" Thk

6шт.

222-102

SLEEVE,1/4" Tube

(Replaces sleeve 915500R1) 1/4" Tube

6шт.

3

250617R1

NUT

- injection pipe

6шт.

250610R2

GUARD

SLEEVE - injection pipe

6шт.

4

609279C11

PIPE

- injection cylinder no. 1

1шт.

5

609280C11

PIPE

- injection cylinder no. 2

1шт.

6

609281C11

TUBE

- injection cylinder no. 3

1шт.

7

609282C11

PIPE

- injection cylinder no. 4

1шт.

8

609283C11

PIPE

- injection cylinder no. 5

1шт.

9

609284C11

PIPE

- injection cylinder no. 6

1шт.

10

612222C11

TUBE

MANIFOLD ASSEMBLY - leakoff, Includes: Ref. 10A & 10B

1шт.

10a

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD, not illustrated

1шт.

10b

222-102

SLEEVE,1/4" Tube

Not illustrated 1/4" Tube

1шт.

11

615369C1

UNION

ELBOW - tube union

1шт.

12

612233C11

TUBE ASSEMBLY - leakoff return lower, no longer available, Includes: Ref. 12A & 12B

1шт.

12a

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD, not illustrated

2шт.

12b

222-102

SLEEVE,1/4" Tube

Not illustrated 1/4" Tube

2шт.

13

615370C1

TEE

- injection pump inlet

1шт.

14

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figure 8-24

1шт.

15

REF

INSTRUCTION

DRIVE ASSEMBLY - fuel injection pump, parts list Figure 8-50 or 8-52

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened (Replaces washer 25709R1)

3шт.

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 142619H)

2шт.

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

16

610423C91

HOSE

- Filter to injection pump

1шт.

17

347823R92

HOSE

- primary to final filter

1шт.

18

345293R11

BRACKET - fuel filter, no longer available

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex, 3/8 NC x 1-7/8 inch

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

214-1466

HOSE CLAMP,#66, 3.75" - 4.63", Type F Worm

CLAMP - filter, adjustable, 3-3/4 - 4-5/8 inch diameter (Replaces clamp 274090R91)

4шт.

20

444082

ELBOW

- 45 degree, 14-18 inch

2шт.

21

328841R1

PLATE - injection pump mounting

1шт.

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

27588R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW - cap, 3/8 NC x 3/4 inch (Replaces screw 324235R1)

2шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

328-656

BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 8

(Replaces screw 25244R1) Hex, 3/8"-24 x 3 1/2", G8

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

328842R1

GASKET

- injection pump mounting plate

1шт.

23

341525R1

PINION

GEAR - injection pump drive, 58 tooth

1шт.

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

(Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

19899R1

NUT

- gear hub lock

1шт.

341508R1

WASHER

- gear, no longer available

1шт.

24

REF

INSTRUCTION

FILTER ASSEMBLY - final fuel, parts list Figure 8-54

1шт.

25

690456C1

CONNECTOR, ELEC

ELBOW - 90 degree, 9/16 inch NF (Replaces elbow 9402838)

2шт.

26

601245C11

PLATE ASSY.

CLAMP - injection pipe, outer

1шт.

601249C1

PLATE ASSY.

PAD - injection pipe clamp

2шт.

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

6шт.

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

6шт.

27

601811C1

CLAMP

- injection pipe, inner

1шт.

28

610932C91

FILTER CARTRIDGE

FILTER ASSEMBLY - primary fuel, parts list Figure 8-54

1шт.

29

702093C1

CABLE TIE

CLAMP - hose

1шт.
