Запчасти Case IH DT-361 (8-30) - INTERNATIONAL R. D. FUEL INJECTION PUMP, HOUSING AND COVER, 806 AND 2806 TRACTORS

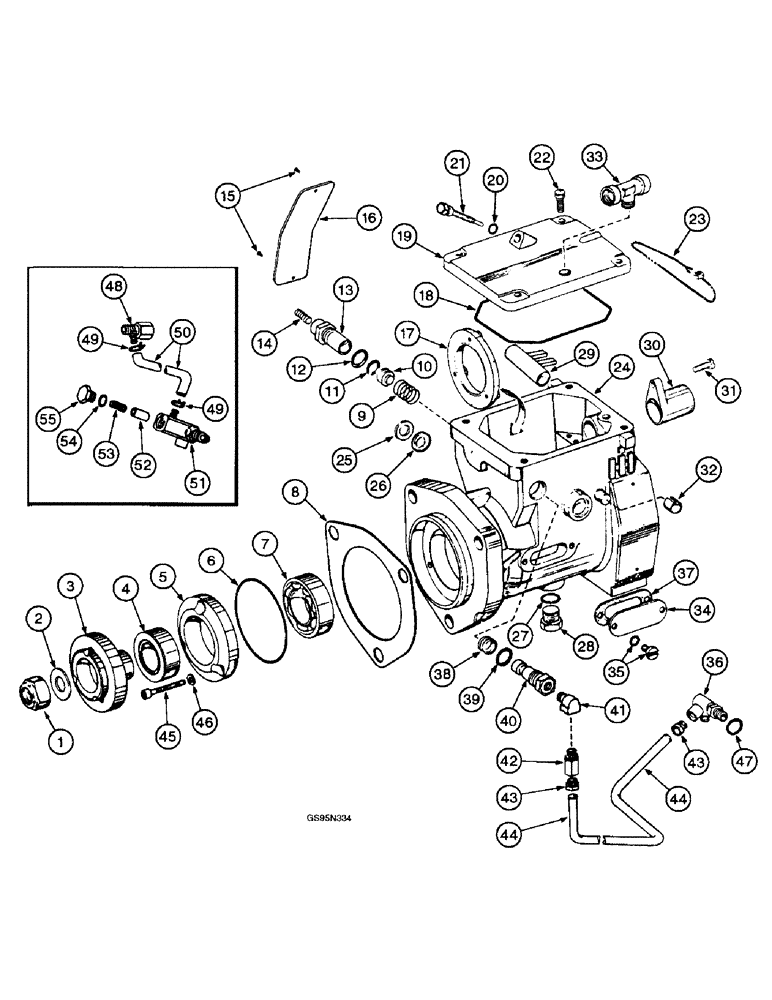

Схема запчастей Case IH DT-361 - (8-30) - INTERNATIONAL R. D. FUEL INJECTION PUMP, HOUSING AND COVER, 806 AND 2806 TRACTORS
42
33
19
55
17
45
24
46
49
37
25
29
54
18
27
38
39
23
11
26
35
43
51
16
22
30
50
20
40
34
10
32
28
49
41
8
13
47
53
48
12
7
6
21
31
9
1
4
14
2
36
15
43
5
3
52
44
44

Артикул

Название

Примечание

Количество

1

19899R1

NUT

- gear hub lock

1шт.

2

345032R1

GASKET

- gear hub, no longer available

1шт.

3

341311R1

HUB - gear, no longer available

1шт.

4

343715R91

SEAL

- oil, main shaft

1шт.

5

310130R2

PLATE - main shaft oil seal

1шт.

6

238-5149

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

Main shaft oil seal plate -149, 90 Duro, 2.8" ID x .103" Thk

1шт.

7

ST681A

BEARING - ball, main shaft front, no longer available

1шт.

8

278347R1

GASKET

- injection pump

1шт.

9

330452R1

SPRING - timing, no longer available

1шт.

10

330450R1

SEAT - spring, no longer available

1шт.

11

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk - Spring seat (Replaces O-ring 330453R1)

1шт.

12

303545R1

O-RING

- timing advance stop

1шт.

13

341313R11

STOP - timing advance, no longer available

1шт.

14

20684R1

SCREW - hex socket, No. 10-32 x 3/4 inch, no longer used

1шт.

15

40329DA

RIVET

- identification plate

2шт.

16

323745R1

PLATE - identification, no longer available

1шт.

17

310131R1

RETAINER - main shaft front bearing, no longer available

1шт.

18

310126R1

GASKET

- pump housing top cover

1шт.

19

310074R1

COVER - pump housing top

1шт.

110488

SCREW - slotted fillister head, No. 10-24 x 5/8 inch, no longer used

2шт.

20

238-5009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

-009, 70 Duro, .208" ID x .070" Thk, Low idle screw

1шт.

21

349325R1

SCREW - low idle, no longer used

1шт.

22

310125R1

SCREW

- pump housing top cover seal

2шт.

23

279673R91

WASHER

WIRE - seal

1шт.

24

341327R11

HOUSING

- pump, pump serial numbers prior to 20225, Includes: Ref. 25 - 28A, no longer available, order housing assembly 601452C11 below, (2) 601209C91 sealbolts and (3) 113934H washers

1шт.

24

601452C11

HOUSING ASSEMBLY - pump, pump serial number 20225 and after, Includes: Ref. 25 - 28A, no longer available

1шт.

25

312594R1

RETAINER

- control shaft seal

2шт.

26

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

Control shaft -110, 70 Duro, .362" ID x .103" Thk

2шт.

27

303545R1

O-RING

- housing plug

1шт.

28

76349

PLUG,9/16" - 18 ORB

Pump housing Hex Hd, 9/16"-18 ORB

1шт.

29

330446R91

SLEEVE - timing advance, no longer available

1шт.

30

310129R1

COVER - torque adjusting screw

1шт.

31

310125R1

SCREW

- torque adjusting cover

1шт.

32

310073R1

RING - stop screw contact, no longer available

1шт.

33

346793R1

TEE - pipe, 1/4 inch, no longer available

1шт.

34

349061R1

COVER - timing window, no longer available

2шт.

35

349062R91

SCREW - timing window cover, no longer available

4шт.

36

347007R91

ELBOW - pressure pipe, no longer available

1шт.

37

310128R1

GASKET

- timing window cover

2шт.

38

337147R1

SPACER - timing sleeve, 1 degree, no longer available

1шт.

38

337148R1

SPACER - timing sleeve, 2 degree, no longer available

1шт.

39

303545R1

O-RING

- pressure inlet fitting

1шт.

40

328823R1

FITTING - pressure inlet

1шт.

41

333819R1

ELBOW - street

1шт.

42

222-402

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR - male, 1/4 inch tube, heavy duty

1шт.

43

19984R1

TUBE NUT,7/16"-24

NUT - heavy-duty tube fitting, 7/16-24 inch

2шт.

44

345307R1

PIPE - pressure, no longer available

1шт.

45

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, (Replaces screw 147114) Hex Soc Hd, #10-24 x 1 1/4"

3шт.

46

312589R1

SEAL - plate screw, no longer available

3шт.

47

303545R1

O-RING

- pressure pipe elbow, no longer available

1шт.

48

607134C11

CONNECTOR - leakoff hose, pump serial numbers, Serial Range: prior-14262

1шт.

49

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP - hose, pump serial numbers prior to 14262

2шт.

50

607135C1

HOSE - leakoff, pump serial numbers, Serial Range: prior-14262

1шт.

601821C91

PISTON ASSEMBLY - surge, pump serial numbers prior to 14262, Includes: Ref. 51 - 55, no longer available

1шт.

51

601822C11

BODY - surge piston, no longer available

1шт.

52

607290C1

PISTON ASSY.

PISTON - surge, .100 inch lift, no longer available

1шт.

53

607291C1

VALVE SPRING

SPRING - surge piston

1шт.

54

303545R1

O-RING

- surge piston body plug

1шт.

55

601823C1

PLUG - surge piston body, no longer available

1шт.

332374R92

SET

KIT - injection pump O-ring and gasket

1шт.

28a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Not shown

1шт.

Выбрано товаров: 61
