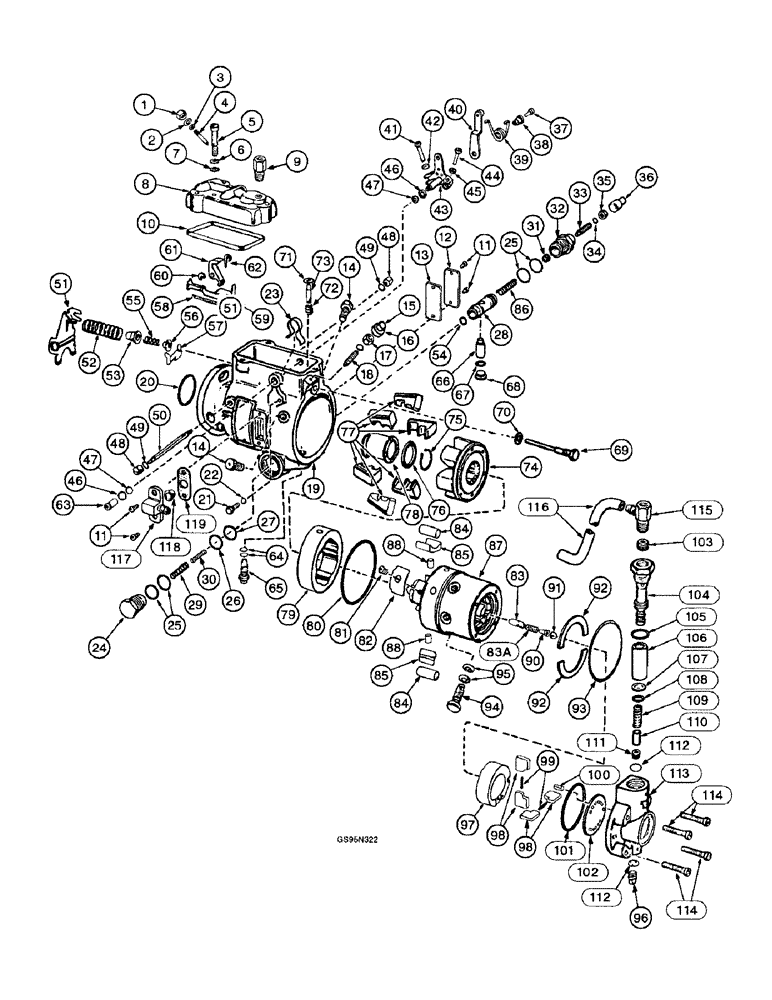

Запчасти Case IH DT-361 (8-24) - FUEL INJECTION PUMP

749732C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured for 702476C92 (North America only), component parts do not apply to the remanufactured assembly

1шт.

702476C92

PUMP

ASSEMBLY - fuel injection, Roosa-Master, new, D-361 engines with serial number 23979 and after, used with 806 and 2806 tractors, no longer available, order remanufactured pump assembly 749732C91

1шт.

749734C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured for pump assembly 702477C92 (North America only), component parts do not apply to the remanufactured assembly

1шт.

702477C92

PUMP ASSEMBLY - fuel injection, new, DT-361 engine, used with 1206 and 21206 tractors, Includes: Ref. 1 - 119

1шт.

1

51200274

NUT

- low idle adjusting screw (Replaces nut 368009R1)

1шт.

2

304728R1

WASHER

- low idle adjusting screw

1шт.

3

304721R1

SEAL

- low idle adjusting screw (Replaces seal 304729R1)

1шт.

4

304788R1

SET SCREW

- low idle adjusting

1шт.

5

319674R1

SCREW

- cover hold-down, no longer available

3шт.

6

138534

LOCK WASHER,Int Tooth, #10

WASHER - internal-tooth lock, No. 10, cover hold-down screw

3шт.

7

319676R1

WASHER

- cover hold-down screw

3шт.

8

304744R1

COVER ASSY

COVER - governor control

1шт.

9

610950C1

CONNECTOR - return line

1шт.

10

368012R1

SEAL

- governor control cover

1шт.

11

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

- slotted oval head, machine, No. 8-32 x 5/16 inch, timing line cover and fitting

4шт.

12

304740R1

COVER ASSY

COVER - timing line

1шт.

13

73453

GASKET

- timing line cover (Replaces gasket 367979R1)

1шт.

14

368810R1

SCREW - head locking

2шт.

15

313287R1

COVER ASSY

CAP - torque screw

1шт.

16

321313R1

NUT

- torque screw

1шт.

17

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Torque screw (Replaces O-ring 352219R1)

1шт.

18

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - torque

1шт.

19

702666C91

HOUSING

- pump, no longer available (Replaces housing 346700R91)

1шт.

20

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pilot tube oil, 1-1/16 ID x 1/8 inch wide

1шт.

21

20789R1

SCREW - slotted pan head, machine, 1/4 NF x 1/2 inch, torque screw hole plug, no longer used

1шт.

22

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

23

606415C1

STOP

- high idle screw

1шт.

24

680208C1

PLUG

- piston hole, power side (Replaces plug 346714R1)

1шт.

25

319687R1

WIPER SEAL

- advance piston hole plug

4шт.

26

627885C1

RING

- advance piston, power (Replaces ring 346659R1)

1шт.

27

346726R1

SEAL

- piston ring, used with pump assembly 702477C92 only

1шт.

28

346716R1

PISTON - advance, used with pump assembly 702477C92

1шт.

28

625766C1

PISTON - advance, used with pump assembly 702476C92

1шт.

29

319989R1

SPRING - outer advance, used with pump assembly 702477C92

1шт.

29

625767C1

SPRING - outer advance, used with pump assembly 702476C92

1шт.

30

319694R1

VALVE SPRING

SPRING - inner advance, used with pump assembly 702477C92

1шт.

31

319692R1

GUIDE

- advance adjusting screw

1шт.

32

346715R1

PLUG - piston hole, spring side, no longer available

1шт.

33

319691R1

CAPSCREW,1/4" x 1.385"

SCREW - advance adjusting

1шт.

34

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw

1шт.

35

321313R1

NUT

- lock, advance adjusting screw

1шт.

36

313287R1

COVER ASSY

CAP - advance adjusting screw

1шт.

37

217921

SCREW - hex socket head cap, No. 10-32 x 5/8 inch, throttle lever, no longer available

1шт.

38

G49621

RETAINER

- throttle lever spring (Replaces retainer 304743R1)

1шт.

39

G48505

SPRING

- throttle lever (Replaces spring 304739R1)

1шт.

40

346702R1

LEVER - throttle, no longer available

1шт.

41

51200273

SCREW

- high idle adjusting (Replaces screw 368002R1)

1шт.

42

225-14210

NUT,#10-32

High idle adjusting screw, used with pump assembly 702477C92 (Replaces nut 120614) #10-32

1шт.

42

51200274

NUT

- hex, No. 10 NF, high idle adjusting screw, used with pump assembly 702476C92 (Replaces nut 368009R1)

1шт.

43

6891471C1

SHAFT - throttle (Replaces shaft 702393C1)

1шт.

44

368024R1

SCREW - throttle lever stop, used with pump assembly 702477C92, no longer available

1шт.

44

51200273

SCREW

- high idle adjusting, used with pump assembly 702476C92

1шт.

45

225-14210

NUT,#10-32

Throttle lever stop screw, used with pump assembly 702477C92 (Replaces nut 120614) #10-32

1шт.

45

51200274

NUT

- hex, No. 10-32, throttle lever stop screw, used with pump assembly 702476C92 (Replaces nut 368009R1)

1шт.

46

R22936

WASHER

- shut-off and throttle shaft (Replaces washer 319744R1)

2шт.

47

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Shut-off and throttle shaft

2шт.

48

368018R1

NUT

- pivot shaft retainer

2шт.

49

304721R1

SEAL

- pivot shaft

2шт.

50

368016R1

SHAFT

- governor arm pivot

1шт.

51

321367R1

ARM

- governor

1шт.

52

615987C1

SPRING

- governor control, used with pump assembly 702477C92 (Replaces spring 319738R1)

1шт.

52

313699R1

VALVE SPRING

SPRING - governor control, used with pump assembly 702476C92

1шт.

324950R1

SPACER

- governor spring, 0.200 inch, used with spring 313699R1, no longer available

1шт.

53

368015R1

RETAINER - idling spring

1шт.

54

372618R1

SHIM

- advance spring, 0.033 inch

1шт.

54

368575R1

SHIM

- advance spring, 0.005 inch

1шт.

54

372617R1

SHIM - advance spring, 0.016 inch

1шт.

55

304810R1

SPRING

- governor idling, no longer available

1шт.

56

367998R1

GUIDE

- idling spring

1шт.

57

324188R91

ARM

- metering valve

1шт.

58

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

59

702350C1

LINKAGE

HOOK - governor linkage (Replaces hook 313241R91)

1шт.

60

368023R1

CAM

- shut-off shaft stop, no longer available

1шт.

61

304794R1

LEVER

- throttle shaft

1шт.

62

313690R1

LOCK ASSY

CAM - shut-off

1шт.

63

615828C1

SHAFT

- shut-off

1шт.

64

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

2шт.

65

1802905C1

SCREW

- head locating, used with pump assembly 702477C92 (Replaces screw 346721R91)

1шт.

65

627207C1

SCREW

- head locating, used with pump assembly 702476C92

1шт.

66

346723R1

DOWEL

PIN - cam advance

1шт.

67

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

68

1802552C1

PLUG - advance screw hole (Replaces plug 346722R1)

1шт.

69

313677R1

STUD

- governor idle spring

1шт.

70

368014R1

WASHER

- guide stud

1шт.

71

313286R1

WASHER

SHIM - metering valve spring

1шт.

72

304746R1

VALVE SPRING

SPRING - metering valve

1шт.

73

630224C1

PUSH BUTTON

VALVE - metering (Replaces valve 313683R1)

1шт.

74

627946C91

RETAINER

- governor weight (Replaces retainer 702586C91)

1шт.

75

100-1193

SNAP RING,#93, Ext

Ring, Snap, , governor cage (Replaces ring 368345R1) #93, Ext

1шт.

76

368342R1

THRUST WASHER

- governor sleeve thrust

1шт.

77

319669R1

WEIGHT

- governor

6шт.

78

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

79

601922C1

RING - cam, no longer available

1шт.

80

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

81

368806R1

SCREW - leaf spring adjusting

1шт.

82

304797R1

VALVE SPRING

SPRING - plunger limiting leaf

1шт.

83

346775R1

LOCK VALVE

VALVE - delivery, used with pump assembly 702477C92

1шт.

83

606141C1

LOCK VALVE

VALVE - delivery, used with pump assembly 702476C92

1шт.

83

346885R1

O-RING

VALVE - delivery, oversize, used with pump assembly 702477C92

1шт.

83

169080C1

VALVE - delivery, used with head assembly 702479C91 below, no longer available

1шт.

83a

606144C1

VALVE SPRING

SPRING - delivery valve

1шт.

84

368805R1

ROLLER

- plunger cam

2шт.

85

368804R1

SHOE (ASSY)

SHOE - cam roller

2шт.

86

319683R1

SPRING

- advance timer

1шт.

702479C91

HEAD ASSY.

HEAD ASSEMBLY - hydraulic, used with pump assembly 702477C92, no longer available, order head assembly 625385C91 (Replaces head assembly 610947C91), Includes: Ref. 87 - 91

1шт.

625385C91

ROTOR

HEAD ASSEMBLY - hydraulic, used with pump assembly 702476C92 (Replaces head assembly 610947C91), Includes: Ref. 87 - 91C

1шт.

87

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head assembly

1шт.

88

NSS

NOT SOLD SEPARAT

PLUNGER - rotor, order head assembly

1шт.

89

NSS

NOT SOLD SEPARAT

ROTOR - order head assembly, not shown

1шт.

90

606145C1

LOCK ASSY

STOP - delivery valve, used with head assembly 702479C91

1шт.

91

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - delivery valve retaining

1шт.

91a

619083C1

SCREW - used with head assembly 625385C91

1шт.

91b

619082C1

SPRING - used with head assembly 625385C91

1шт.

91c

619081C1

LOCK VALVE

VALVE - used with head assembly 625385C91, no longer available

1шт.

92

304800R1

WASHER

RETAINER - rotor

2шт.

93

304801R1

RING

- rotor retainer

1шт.

94

609050C1

SCREW

- fuel line connector

6шт.

95

670207C1

GASKET

WASHER - fuel line connector

1шт.

96

615695C1

PLUG

- end plate pipe (Replaces plug 346712R1)

1шт.

340214R1

SEAL

- end plate plug, used with plug 615695C1

1шт.

97

304745R1

GUIDE

LINER - transfer pump

1шт.

98

619761C1

BLADE

- transfer pump (Replaces blade 346728R1)

1шт.

99

346724R1

SPRING

- transfer pump blade

2шт.

100

368812R1

DOWEL

PIN - end plate roll

1шт.

101

367982R1

O-RING,0.154" Width

- transfer pump, 1-1/2 x 1-13/16 x 5/32 inch, no longer available

1шт.

102

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

103

615695C1

PLUG

- end plate pipe, used with pump assembly 702477C92

1шт.

103

346705R91

PLUG

- end plate adjusting, used with pump assembly 702476C92

1шт.

104

615142C1

SEAL

SLEEVE - end plate (Replaces sleeve 346711R1

1шт.

For assembly, order 1808814C1.

1шт.

105

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Fuel inlet strainer (Replaces O-ring 368030R1)

1шт.

106

A43870

FILTER, FUEL

ELEMENT - filter ( Replaces element 346708R1)

1шт.

107

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

108

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, End plate sleeve (Replaces O-ring 359158R1)

1шт.

109

A43867

SPRING

- regulating (Replaces spring 346707R1)

1шт.

110

367988R1

PLUNGER

PISTON - regulating

1шт.

111

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1)

1шт.

112

D61943

SNAP RING,0.25", Int, #25

Ring, Snap, , piston retainer, used with pump assembly 702477C92 (replaces ring 346731R1) 0.25", Int, #25

1шт.

113

346704R1

PLATE ASSY.

PLATE - end

1шт.

615489C1

LOCK ASSY

STRAP - end plate

2шт.

615733C1

CLIP

- screw retaining

2шт.

319676R1

WASHER

- end plate screw

4шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER - internal tooth lock, No. 10 (Replaces washer 11545)

4шт.

114

615491C1

SCREW

- end plate

1шт.

115

610954C91

FITTING - inlet, no longer available

1шт.

116

610952C1

HOSE,0.20" ID x 5.41"

- Fuel return by-pass 0.20" ID x 5.41"

1шт.

117

610951C91

FITTING

- timing and return

1шт.

118

610955C1

SCREW

SCREEN - return oil

1шт.

119

610953C1

GASKET

- timing and return fitting

1шт.

12736D

ELECTRICAL WIRE

WIRE - lead pump and sealing, used with pump assembly 702477C92

6шт.

279673R91

WASHER

WIRE - torque screw cap seal, used with pump assembly 702477C92

1шт.

606491C1

PLATE ASSY.

PLATE - name, used with pump assembly 702476C92

1шт.

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

- nameplate, drive, round head, No. 10 x 1/8 inch, used with pump assembly 702476C92 (Replaces screw 145362)

2шт.

678026C1

ELECTRICAL WIRE

WIRE - injection pump lock, used with pump assembly 702476C92

2шт.

687459C1

ELECTRICAL WIRE

LOCK - injection pump seal wire, used with pump assembly 702476C92, (replaces lock 678027C1)

2шт.

1806929C91

GASKET KIT

- fuel injection pump overhaul

1шт.

347784R91

GASKET KIT

KIT - fuel injection pump overhaul, Includes: Ref. 3, 10, 13, 17, 20, 22, 25, 27, 46, 49, 64, 67, 80, 101, 105 & 107

1шт.
