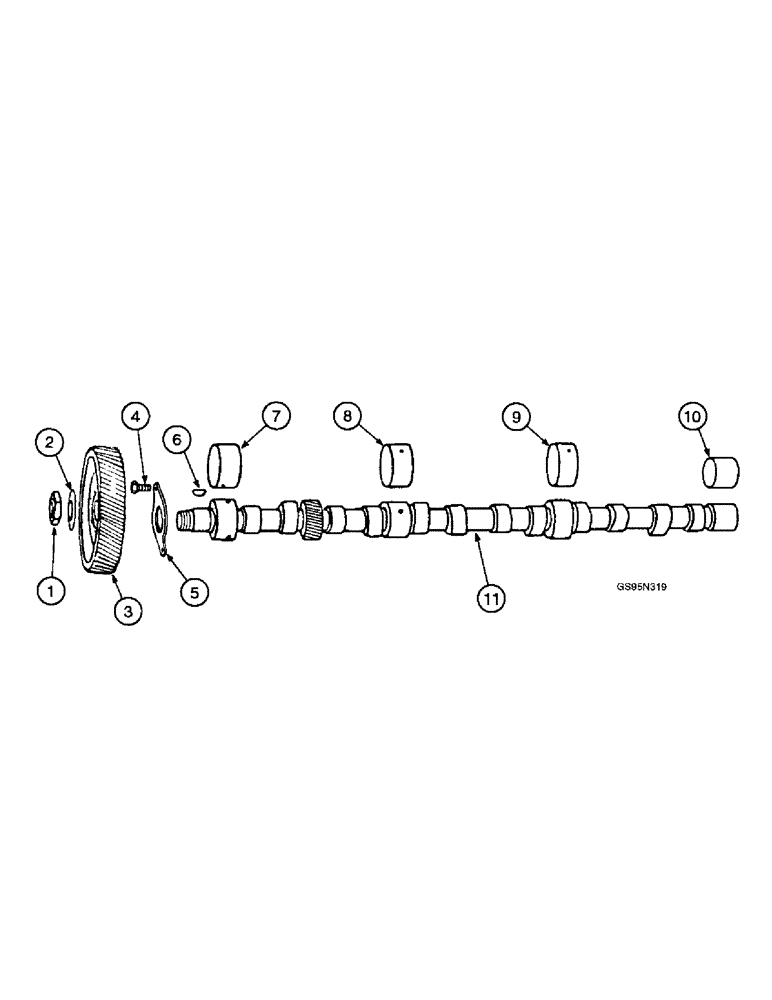

Запчасти Case IH DT-361 (8-16) - CAMSHAFT AND RELATED PARTS

1

16026DB

NUT

- camshaft gear

1шт.

2

16025D

SHIM

NUT - lock, camshaft gear, used only with 806 and 2806 tractors with engine serial numbers, Serial Range: prior-4873

1шт.

3

131858R1

PINION

GEAR - camshaft

1шт.

4

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- camshaft thrust plate (Replaces bolt 70425R1)

2шт.

5

16027DB

WASHER

FLANGE - camshaft thrust, will work for 160270A

1шт.

Part of camshaft replacement kit P/N 701067C91

1шт.

6

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

KEY - Woodruff, 5/32 x 7/8 inch, camshaft gear (Replaces key 127559)

1шт.

7

332573R1

BEARING LINER

BUSHING - camshaft front

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

- camshaft intermediate front

1шт.

9

332629R1

BEARING LINER

BUSHING - camshaft intermediate rear

1шт.

10

77514R1

BEARING LINER

BUSHING - camshaft rear

1шт.

11

332107R1

CAMSHAFT

- no longer available, order camshaft 670349C1 and flange 16027DB

1шт.

11

670349C1

CAMSHAFT

- standard

1шт.

Part of camshaft replacement kit P/N 701067C91

1шт.

701067C91

CAMSHAFT

KIT - camshaft replacement, Includes: ref. nos. 5 and 11, no longer available, order components

1шт.
