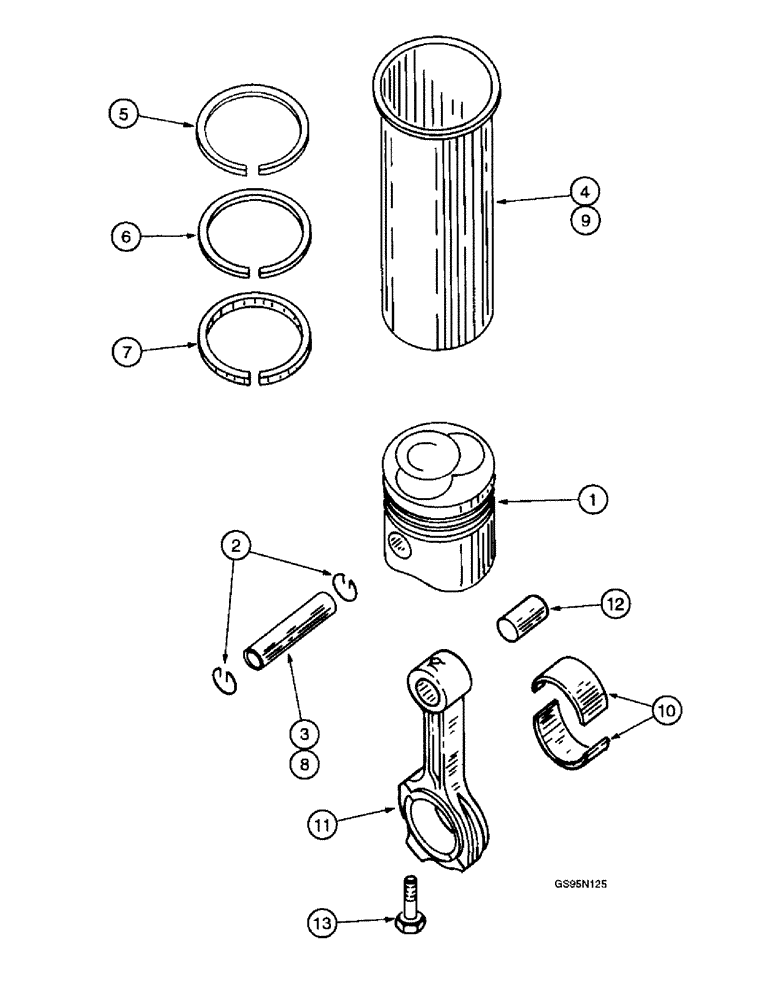

Запчасти Case IH DT-361 (8-14) - CONNECTING RODS, PISTONS AND SLEEVE SETS

349095R93

SET

KIT - piston and sleeve, S2 marking, used with 1206 and 21206 tractors, Includes: Ref. 1 - 7

6шт.

601071C93

PISTON

KIT - piston and sleeve, S2 marking, used with 806 and 2806 tractors, Includes: Ref. 1 - 7

6шт.

349388R92

PACKAGE

KIT - piston and sleeve, S1 marking, used with 1206 and 21206 tractors, Includes: Ref. 1 - 7, order kit 349095R93 above

6шт.

601070C93

KIT - piston and sleeve, S1 marking, used with 806 and 2806 tractors, Includes: Ref. 1 - 7, order kit 601071C93 above

6шт.

1

345250R2

PISTON

- SS marking, used with kits 601071C92 and 601070C92

1шт.

1

341183R3

PISTON ASSY.

PISTON - SS marking, used with kits 349095R93 and 349388R92

1шт.

2

326751R1

RING, SNAP

RING - piston pin retaining

2шт.

3

326749R1

PIN

- piston, standard, no longer available, order oversize pin 670571C1, item 8

1шт.

4

A77686

SLEEVE

- cylinder, S2 marking (Replaces sleeve 349114R11)

1шт.

4

349386R11

SLEEVE

- cylinder, S1 marking, order sleeve A77686

1шт.

681344C91

STRIPPER PACKAGE

KIT - piston ring, used with 806 and 2806 tractors, Includes: Ref. 5 - 7

1шт.

674712C91

X

KIT - piston ring, used with 1206 and 21206 tractors, Includes: Ref. 5 - 7

1шт.

601134C91

PACKAGE

KIT - piston ring, used with 806 and 2806 tractors, Includes: Ref. 5 - 7, order ring kit 681344C91

1шт.

681346C91

RING, SET

KIT - piston ring, used with 1206 and 21206 tractors (Replaces kit 341469R91), Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

RING - compression piston, top or first groove, order kit

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression piston, second groove, order kit

1шт.

7

NSS

NOT SOLD SEPARAT

RING - compression piston, third or bottom groove, order kit

1шт.

8

670571C1

AXLE PIN,38.1mm OD x 88.9mm L

PIN - piston, 0.005 oversize

6шт.

9

A77687

SLEEVE

- cylinder, 0.002 inch oversize (Replaces sleeve 349094R11)

6шт.

9

A77688

SLEEVE

- cylinder, 0.010 inch oversize (Replaces sleeve 349387R11)

6шт.

10

681314C3

BEARING SET

BEARING - connecting rod, two halves, standard (Replaces bearing 323962R11)

6шт.

10

341573R11

BEARING

- connecting rod, two halves, 0.002 inch undersize

6шт.

10

681315C3

BEARING SET

- connecting rod, two halves, 0.010 inch undersize (Replaces bearing 341576R11)

6шт.

10

341579R11

CRANKSHAFT BEARING

BEARING - connecting rod, two halves, 0.020 inch undersize, no longer available

6шт.

10

681316C3

BEARING SET

- connecting rod, two halves, 0.030 inch undersize (Replaces bearing 341582R11)

6шт.

11

341113R94

ROD

ASSEMBLY - connecting, new, Includes: Ref. 12 & 13

6шт.

11

735239C91

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured , component parts do not apply to the remanufactured assembly

6шт.

11

1928151C1

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return rods for credit when using a remanufactured assembly

6шт.

12

326562R1

BUSHING

- piston pin

1шт.

13

326563R2

BOLT (SPREADER),1/2" - 20 x 2.1"

BOLT - connecting rod

2шт.
