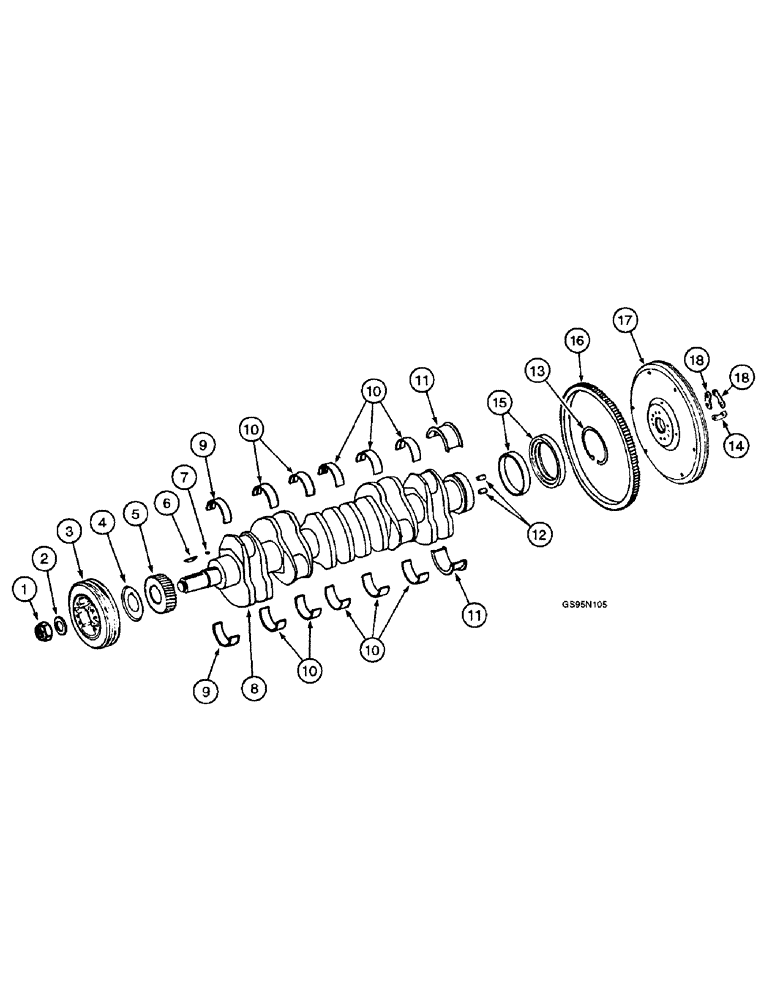

Запчасти Case IH DT-361 (8-10) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

19857R1

NUT

- starting

1шт.

2

116451H

WASHER

- starting nut

1шт.

3

701036C93

DAMPER

ASSEMBLY - vibration (Replaces assembly 607142C91), Includes: Ref. 3A

1шт.

3a

606780C93

PACKAGE

SLEEVE - wear, damper

1шт.

4

612280C1

SLINGER

- crankshaft oil

1шт.

5

326705R1

PINION

GEAR - crankshaft

1шт.

6

332421R2

KEY

- vibration damper

1шт.

7

126-128

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

Crankshaft gear #18, 1/4" x 1 1/8", HT

1шт.

735213C91

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - remanufactured (North America only), 0.010 inch undersize, component parts do not apply to the remanufactured assembly, no longer available

1шт.

749650C91

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - remanufactured (North America only), 0.030 inch undersize, component parts do not apply to the remanufactured assembly, no longer available

1шт.

1928167C1

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

323985R92

CRANKSHAFT

ASSEMBLY - standard, new, no longer available, Includes: Ref. 8 - 12A

1шт.

Order crankshaft 323882R2, item 8; bearing 328771R91, item 9; bearing 328774R91 & bearing 328777R91, both item 10; pin 19838R1, item 12; plug 50410DA, item 12A & bearing 681314C3, not shown

1шт.

349054R92

CRANKSHAFT ASSEMBLY - undersize, Includes: Ref. 8 - 11, does not include items 12 and 12A, no longer available

1шт.

8

323882R2

CRANKSHAFT

- standard

1шт.

9

328771R91

BEARING SET

BEARING - crankshaft front, two halves, standard

1шт.

9

341536R91

BEARING - crankshaft front, two halves, 0.002 undersize, no longer available

1шт.

9

341545R91

BEARING SET

- crankshaft front, two halves, 0.010 undersize

1шт.

9

341554R91

CRANKSHAFT BEARING

BEARING - crankshaft front, two halves, 0.020 undersize

1шт.

9

341563R91

BEARING SET

- crankshaft front, two halves, 0.030 undersize

1шт.

10

328774R91

BEARING SET

BEARING - crankshaft intermediate, two halves, standard

5шт.

10

341539R91

BEARING - crankshaft intermediate, two halves, 0.002 undersize

5шт.

10

341548R91

BEARING SET

- crankshaft intermediate, two halves, 0.010 undersize

5шт.

10

341566R91

BEARING SET

- crankshaft intermediate, two halves, 0.030 undersize

5шт.

10

341557R91

CRANKSHAFT BEARING

BEARING - crankshaft intermediate, two halves, 0.020 undersize, no longer available

5шт.

11

328777R91

BEARING SET

BEARING - crankshaft rear, two halves, standard

1шт.

11

341551R91

BEARING SET,Piston Rod

BEARING - crankshaft rear, two halves, 0.010 undersize

1шт.

11

341560R91

BEARING LINER

BEARING - crankshaft rear, two halves, 0.020 undersize, no longer available, order other item 11 bearings

1шт.

11

341569R91

BEARING SET

- crankshaft rear, two halves, 0.030 undersize

1шт.

12

19838R1

DOWEL,15.88mm OD x 31.75mm L

PIN - flywheel to crankshaft dowel

2шт.

12a

50410DA

PLUG

- used with crankshaft assembly 323985R92, not shown

6шт.

13

100-21206

SNAP RING,2.062", Int, #206

Ring, Snap, (Replaces 456736R1) 2.062", Int, #206

1шт.

14

345473R1

RETAINER

PLATE - lock bolt

1шт.

15

326701R92

SEAL - oil, crankshaft rear, used with 806 and 2806 tractors with engine serial numbers prior to 21597, no longer available

1шт.

To convert engines to lip-type seal, order kit 609332C92.

1шт.

15

1809964C92

OIL SEAL

SEAL - oil, crankshaft rear, used with 1206 tractors and 21206 tractors; 806 and 2806 tractors with engine serial number 21597 and after (Replaces seal 609333C91)

1шт.

326760R31

FLYWHEEL

ASSEMBLY - used with 1206 and 21206 tractors, Includes: Ref. 16 & 17

1шт.

341603R31

FLYWHEEL

ASSEMBLY - used with 806 and 2806 tractors, Includes: Ref. 16 & 17

1шт.

16

326759R1

GEAR

- flywheel ring, 132 tooth, used with flywheel assembly 326760R31

1шт.

16

341604R1

GEAR

- ring, 132 tooth, used with flywheel assembly 341603R31

1шт.

17

NSS

NOT SOLD SEPARAT

FLYWHEEL - order flywheel assembly

1шт.

328-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

Flywheel to crankshaft, 806 and 2806 tractors with engine S/N's 501 to 12666 Hex, 1/2"-20 x 1 1/2", G8, Full Thd

6шт.

28-826

BOLT,Hex, 1/2" - 20 x 1-5/8", Gr 8

- flywheel to crankshaft, hex, 1/2 NF x 1-5/8 inch, grade 8, 1206 and 21206 tractors; 806 and 2806 tractors with engine serial numbers 12667 and after (Replaces bolt 327131R1)

6шт.

18

345472R1

RETAINER

PLATE - lock bolt

2шт.

609332C93

STRIPPER PACKAGE

KIT - crankshaft rear oil seal conversion, includes seal 609333C91 and retainer 601743C1

1шт.
