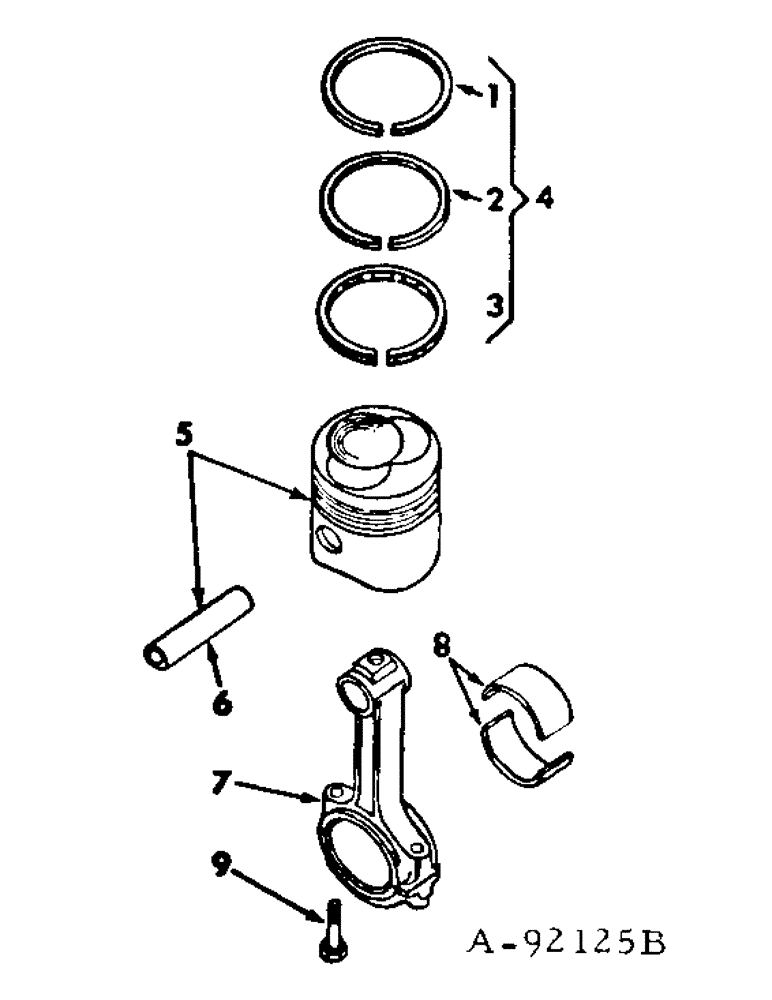

Запчасти Case IH V-392 (C-05) - CONNECTING RODS AND PISTONS

1

NSS

NOT SOLD SEPARAT

RING, compression, top or first groove

8шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove

8шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove

8шт.

4

874897R91

RING

SET, piston, consists of two compression and one oil ring, std and .010 O/S

8шт.

4

874899R91

RING SET, piston, consists of two compression and one oil ring, .020 O/S

8шт.

4

874900R91

RING, SET

RING SET, piston, consists of two compression and one oil ring, .030 O/S

8шт.

4

874901R91

RING SET, piston, consists of two compression and one oil ring, .040 O/S

8шт.

5

309280C31

PISTON ASSY, standard, engines w/serial no. 1015242 and below

8шт.

5

337144C21

PISTON

ASSY, standard, engines w/serial no. 1015243 and above

8шт.

5

309281C31

PISTON ASSY, .010 O/S, engines w/serial no. 1015242 and above

8шт.

5

337145C21

PISTON

ASSY, .010 O/S, engines w/serial no. 1015243 and above

8шт.

5

309282C31

PISTON ASSY, .020 O/S. engines w/serial no. 1015242 and below

8шт.

5

337146C21

PISTON

ASSY, .020 O/S, engines w/serial no. 1015243 and above

8шт.

5

309283C31

PISTON ASSY, .030 O/S, engines w/serial no. 1015242 and below

8шт.

5

337147C21

PISTON ASSY

.030 O/S, engines w/serial no. 1015243 and above

8шт.

5

309284C31

PISTON ASSY, .040 O/S, engines w/serial no. 1015242 and above

8шт.

5

337148C21

PISTON

ASSY, .040 O/S, engines w/serial no. 1015243 and above

8шт.

6

879759R1

PIN, piston

8шт.

7

216114R21

ROD

W/TWO BOLTS 332924C1, two washers, 328278C1 and two nuts 332923C1

1шт.

8

151043R21

BEARING

ASSY, connecting rod, 2 halves, std

8шт.

8

151907R21

BEARING

ASSY, connecting rod, 2 halves, .010 U/S

8шт.

8

151908R21

BEARING ASSY, connecting rod, 2 halves, .020 U/S

8шт.

8

151909R21

BEARING ASSY, connecting rod, 2 halves, .030 U/S

8шт.

8

151912R92

KIT

BEARING SET, connecting rod, std, consists of eight bearings, 151043R21

1шт.

8

151914R92

KIT

BEARING SET, connecting rod, .010 U/S, consists of eight bearings, 151907R21

1шт.

8

151915R92

BEARING SET, connecting rod, .020 U/S, consists of eight bearings, 151908R21

1шт.

8

151916R92

BEARING SET, connecting rod, .030 U/S, consists of eight bearings, 151909R21

1шт.

9

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod

16шт.

328278C1

WASHER

connecting rod

16шт.
