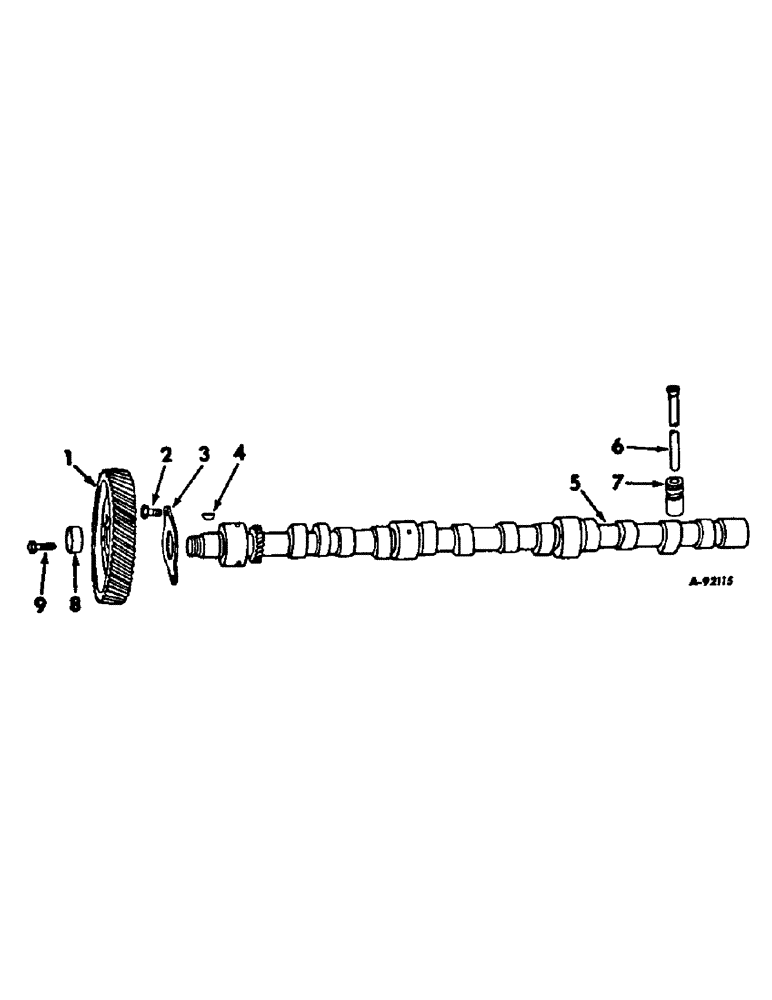

Запчасти Case IH V-392 (C-04) - CAMSHAFT GEAR AND RELATED PARTS

1

GEAR, camshaft, order timing gear set, 151885R92

1шт.

2

266617C1

SCREW, 5/16 NC x 5/8 fl-hd

2шт.

114617

LOCK WASHER,Ext Csk Tooth, 5/16"

WASHER, shakeproof

2шт.

3

151058R1

FLANGE

camshaft

1шт.

4

218217

KEY

3/16 x 5/8 Woodruff no. 61

1шт.

5

151985R5

SHAFT

CAMSHAFT

1шт.

6

229603R1

ROD

valve lifter, engines w/serial no. 1015242 and below

16шт.

6

151189R1

ROD

valve lifter, engines w/serial no. 1015243 and above

16шт.

7

217158R92

PUSH ROD

TAPPET ASSY, hyd

16шт.

8

860512R1

RETAINER, camshaft gear, used w/machines built, Serial Range: prior-1974

1шт.

8

151062R1

CAM

fuel pump, used w/machines built 1974 and since

1шт.

9

151779R1

BOLT

7/16-20 x 1-3/8 hex-hd

1шт.

151885R92

GEAR-SET

SET, timing gear, consists of camshaft gear and crankshaft gear

1шт.
