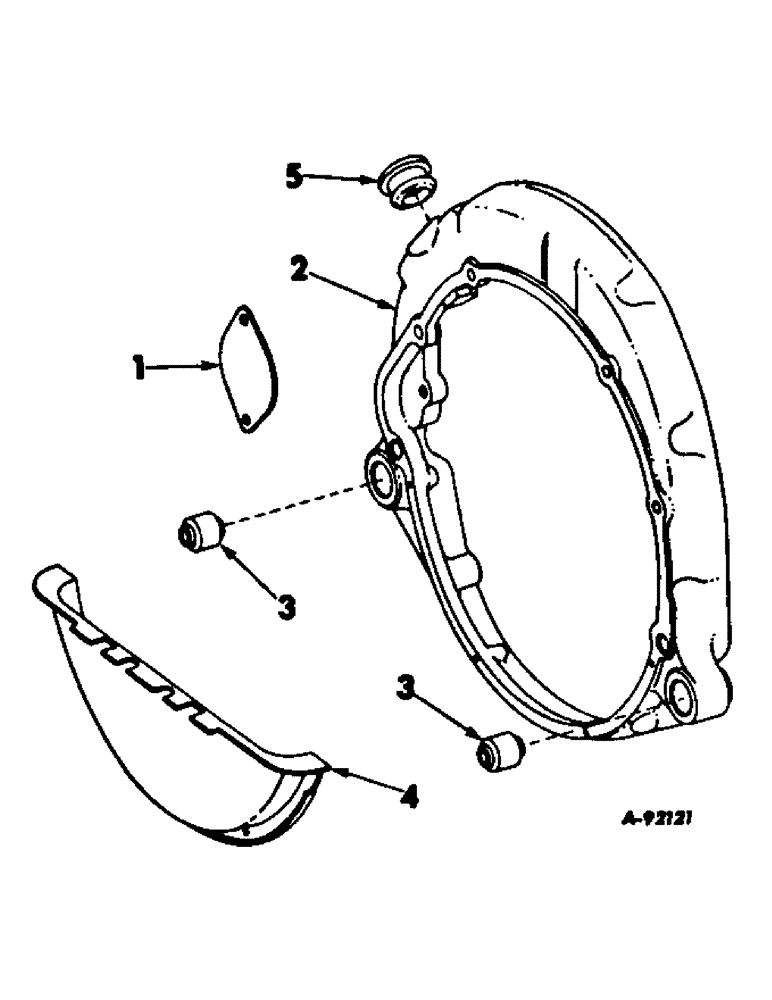

Запчасти Case IH V-392 (C-17) - FLYWHEEL COVER

1

402921R1

COVER, starter

1шт.

180141

SPRING,Hex, 7/16" - 14 x 5/8", Gr 5

SCREW, 7/16-14 x 5/8 C-Z hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

401183R1

HOUSING, flywheel

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

141264

BEARING

PIN, 7/16 x 1 plain dowel

2шт.

3

672870R1

BUSHING

center vibration joint

2шт.

4

175421R1

COVER, flywheel housing

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 C-Z hex-hd cap

4шт.

5

400130R1

PLUG

timing opening

1шт.
